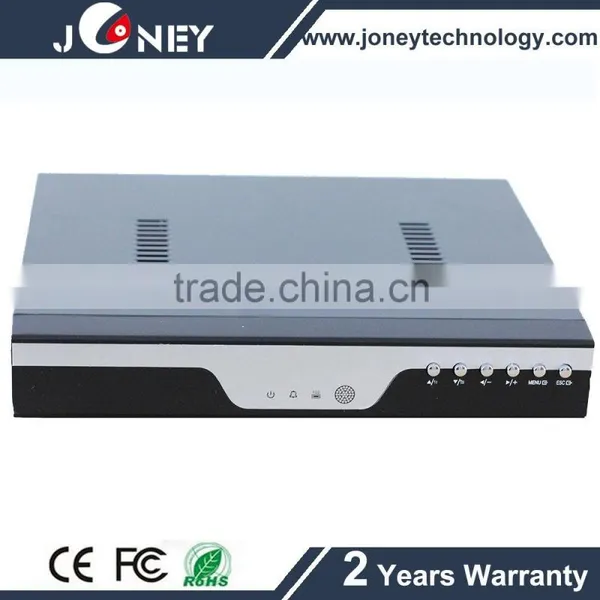

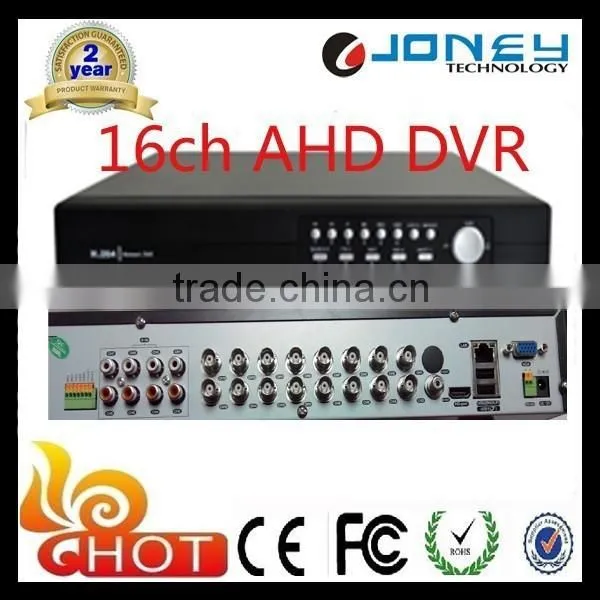

16CH AHD DVR Support 720P AHD camera
Model |
DVR-6316AHD |
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input |
16CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output |
1CH VGA/1CH HDMI/1CH BNC |
Audio Input/Output |
4CH audio input,1CH audio output(RCA) |
Maximum Recording Rate |
720P:1280×720 pixels with 30FPS <NTSC> /1280×720 pixels with 25FPS <PAL> |
Image Quality Setting |
Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage |
Support 2 SATA HDD(each max4TB) |
Alarm Input/Output |
4/1 |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Hybrid mode |
8x 720P AHD + 8 x 720P ip camer/normal analog camera |
Recording Mode |
Manual/Timer/Motion/Alarm |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device |
USB flash drive,USB hard disk and network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,PPPOE ,DDNS and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobilephone View |
YES |
Electronic zoom |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES |
USB Mouse |
YES |
Power Source |
12V/2A |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
260(L) x 44(H) x 221(W) |
About AHD DVR :

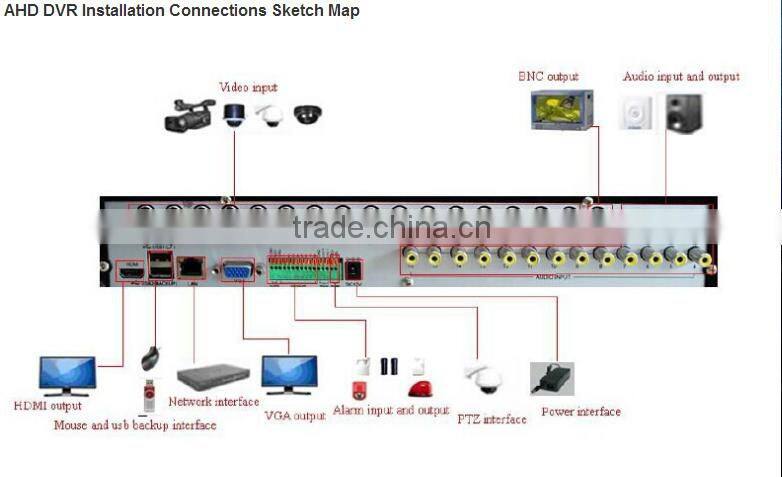

AHD DVR Installation Connections Sketch Map
Based on customer's demands to choose the most economical shipping terms.
Suggest:For sample order ship by Express,for mass order shipping by Air cago or by sea.
We have strong cooperation with DHL,FedEX,UPS,EMS,TNT.
*Quick Professinal Reply
Your inquiry related to our products or price will be reply within 24 hours(Except weekend or holiday in China)
*OEM&ODM
Any of your idea on camera,we can help put it into real products.
*Delivery Time
3-7 working days,7-15 working days for bulk quantity.
We are all ready to serve you.
*MOQ
Lower MOQ,and we suggest our partner can test our sample first.
Sample order is accepted.
*Warranty
2 years warranty & life long technical support.All products have been passed through strict quality control.
*Payment
We accept Paypal,Western Union or T/T before production.
If buyer have any problems about payment,please contact us ASAP.
Joney Technology - main introduction
Joney Technology Co.,Ltd is establish in 2009 in Hong Kong .
Shen zhen company is established in 2012 . The main business is developing and producing security products .
Our products include two main part
- 1. CCTV
IP cameras ,HD analog cameras ,DVR ,NVR ,cctv accessories . We provide the whole system for video surveillance system .Besides the manufacturer for OEM products ,We are also the distributor for Dahua and Hikvision brand .
- 2. Access control
Biometric access control and time attendance device .Rfid access control system like access controller ,Rfid cards /tags ,long range reader for parking system . Magnetic/Electric locks ,Hotel locks and Fingerprint locks . Besides the manufacturer for OEM products.
