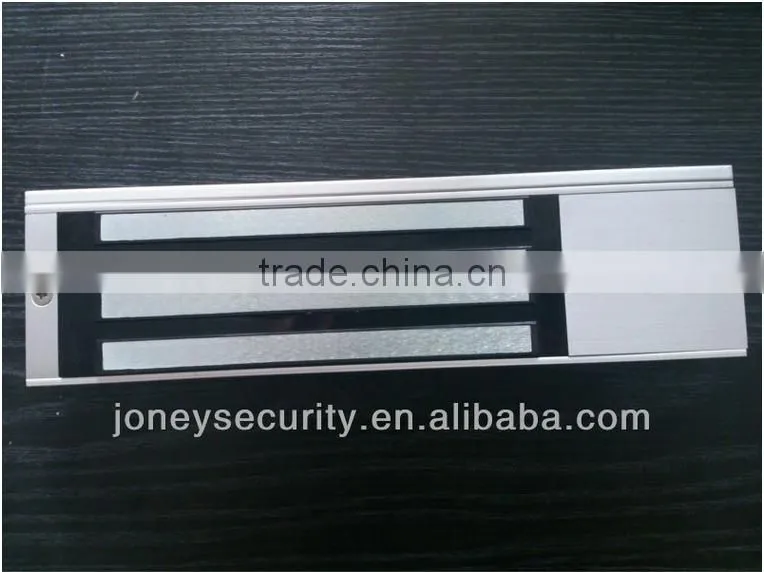

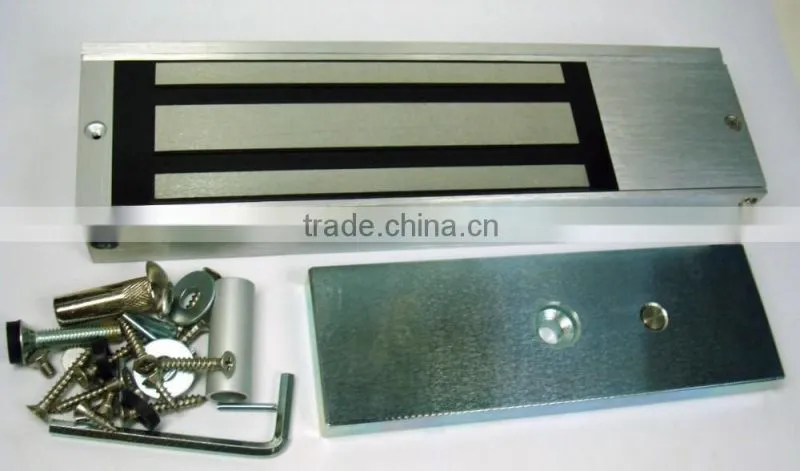

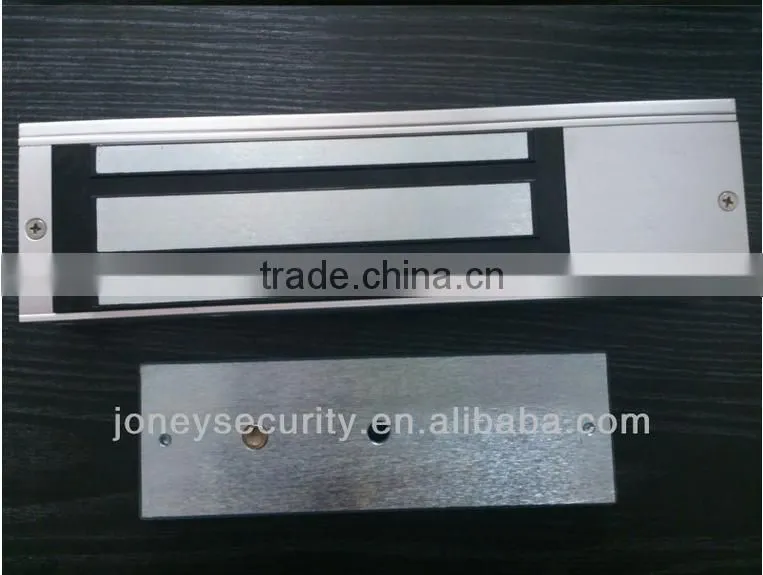

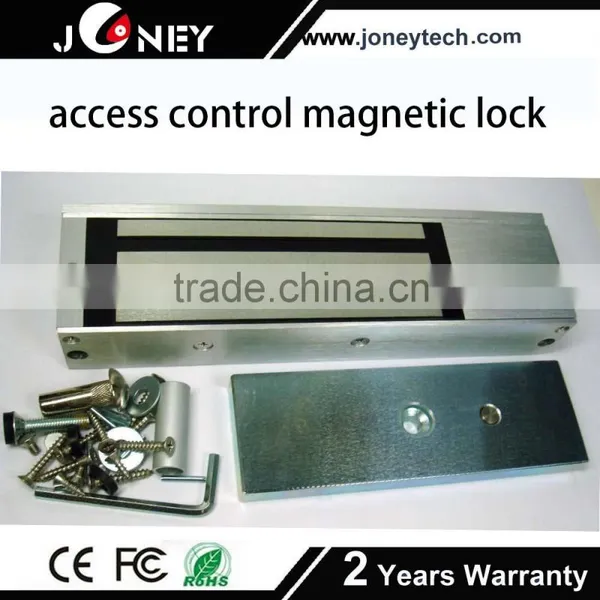

500kg(1200Lbs) holding force em lock,sliding frameless glass door magnetic lock
Magnetic Door Lock System
--1200 lbs holding force
--fail safe
--with LED
--easy to operate

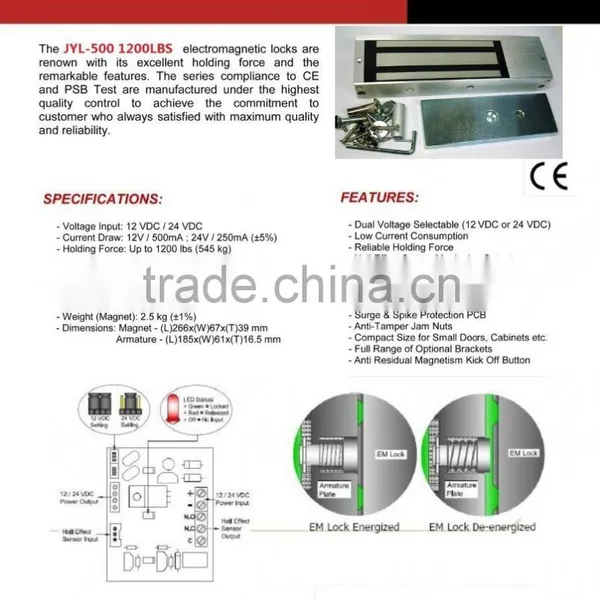

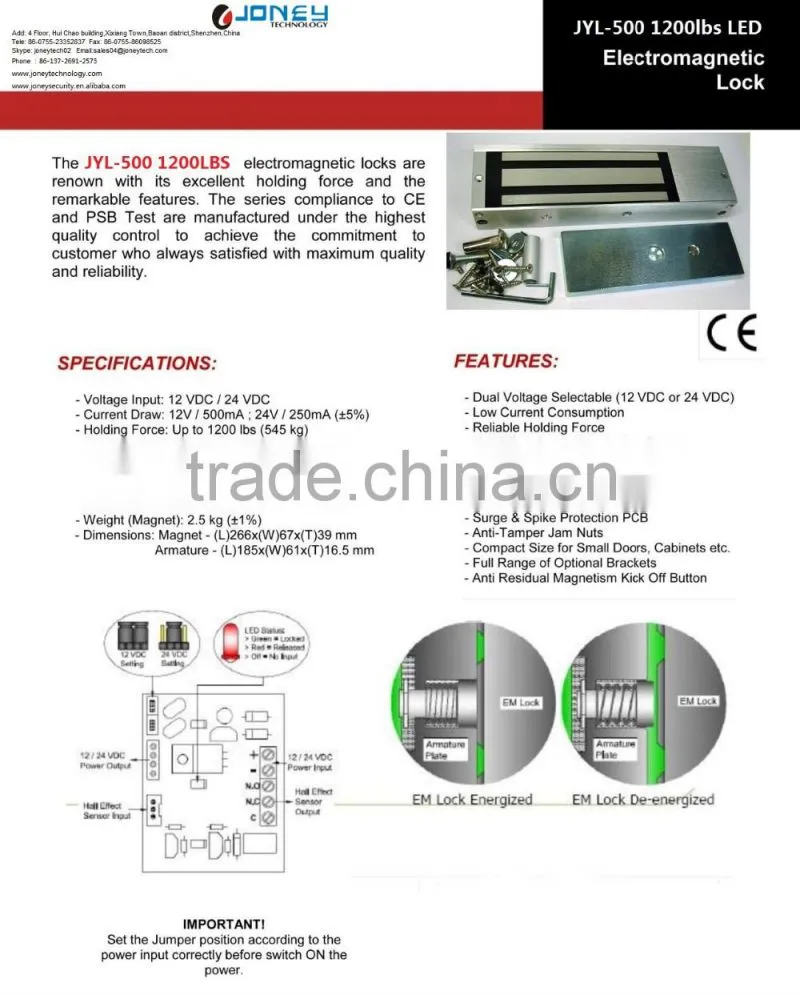

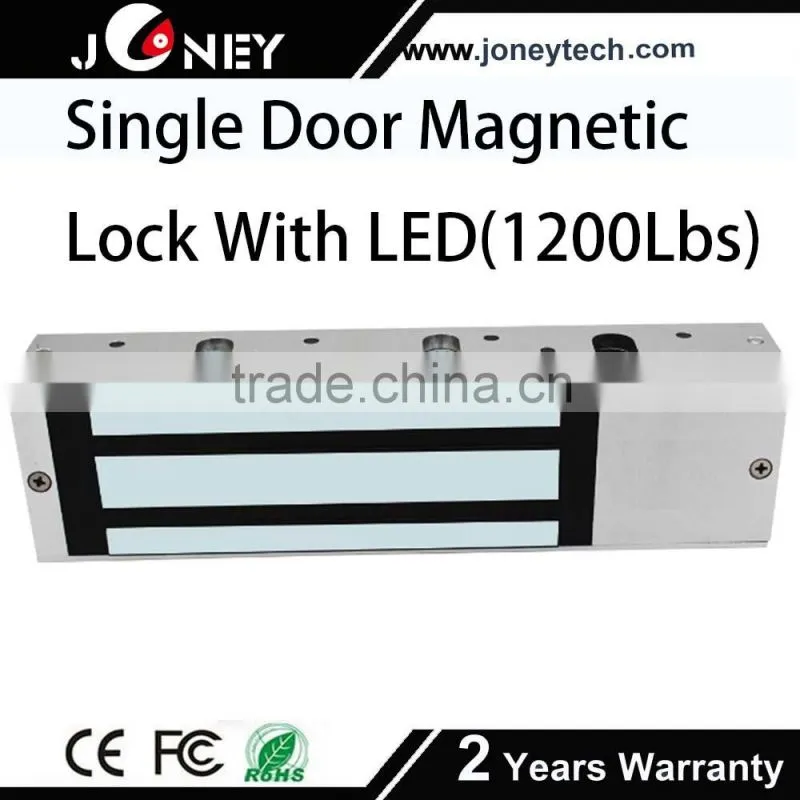

500kg(1200lbs) Holding Force LED magnetic door lock system
instruction:
A. 12VDC Input
Required power 0.5Amp(Minimum)
Connect the positive(+) lead from a 12VDC power source
Connect the ground(-) lead from a 12VDC power source
Check jumper for 12VDC operation
B.24VDC Input
Require power 0.25 Amp(minimum)
Connect the positive (+)lead from a 24 VDC power source
Connect the ground (-) lead from a 24VDC power source
Check jumper for 24VDC operation
C. Contacts
Relay dry contacts are rates 1 Amp at 24VDC for safe operation, do not exceed this ratiing.
If you require a normally open switch, connect the wires from the system to C and NO.
If you require a normally closed switch, connect the wires from the system to C and NC.
Important!
If power switch is not wired beteen DC sorce voltage and magnet, it will take a longer time to de-energize the magnet simulating residual magnetism.
500kg(1200Lbs) holding force em lock,sliding frameless glass door magnetic lock
