TCP/IP Access Control Board Support Mobbile APP
US$ 35 - 40
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney
Model Number:
JYC-T2001B
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Middle Range Card Reader With Proximity EM 125kHZ Long Range ReaderUS$ 40 - 45MOQ: 1 Unit -
Middle-range UHF RFID Gate Card Reader Support 1-6 Meters Read DistanceUS$ 100 - 110MOQ: 1 Unit
-
Desktop USB UHF RFID Reader and Writer Reader With Card Issuing MachineUS$ 100 - 110MOQ: 1 Unit
-
Passive 860Mhz-960Mhz UHF RFID Reader Module With 15m Long RangeUS$ 170 - 190MOQ: 1 Unit
-
2016 New Long Range UHF Reader for Parking Entrance Control DeviceUS$ 200 - 210MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
Joney
Model Number
JYC-T2001B
Single-door TCP/IP Access Control Board Support Mobbile APP
Product Description
TCP/IP Access Control Board Model:
JYC-T2001B is now capable to handle 1 door / 2 readers.
JYC-T2002B is now capable to handle 2 doors / 4 readers.
JYC-T2004B is now capable to handle 4 doors / 4 readers and 4 buttons.
Features
| Unit Size | 160mm *106mm |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mm*228mm*65mm |
| Accessories | User Manual, warranty card |
| Function Introduction | |
| Conventional Function | offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map ,patrol, meeting,const meal etc. |
| Professional function | for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation. |
| all-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| Parameter | |
| Communication | TCP/IP |
| English Software supportable database: | SQL |
| Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , 13.56mhz card etc) |
| Quantity of Readers | 2 Pcs |
| Door Controlled | 1 |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°C-70°C |
| Operation Humidity | 10-90 % RH , No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | |
| Depand on network range | |
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm |
| Complsive open and close door at long time | Yes |
| Open door in remote distance | Yes |
| Inter block | No |
| Anti pass back and tail | Yes |
| Multi-card open door | Yes |
| Open long time at specified time | Yes |
| Electronic map | Yes |
| Urgency locking | Yes |
| First card unlocking | Yes |
| Unlock based on internal and external validation | Yes |
| Keypad (card+passwor, supper password) |
Yes |
Image show

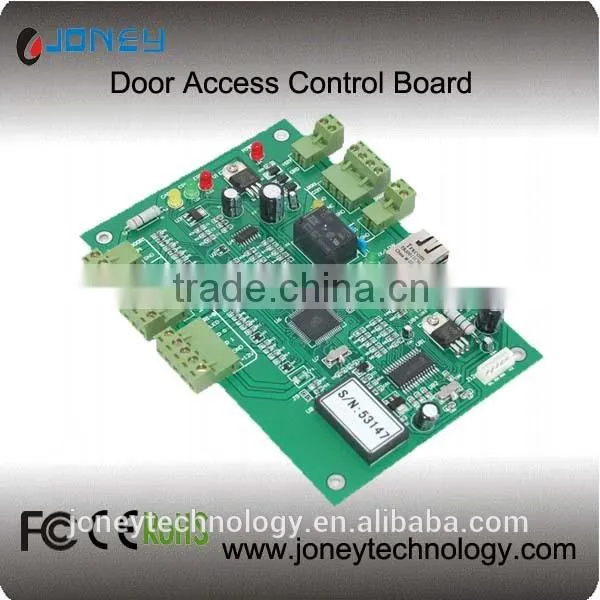

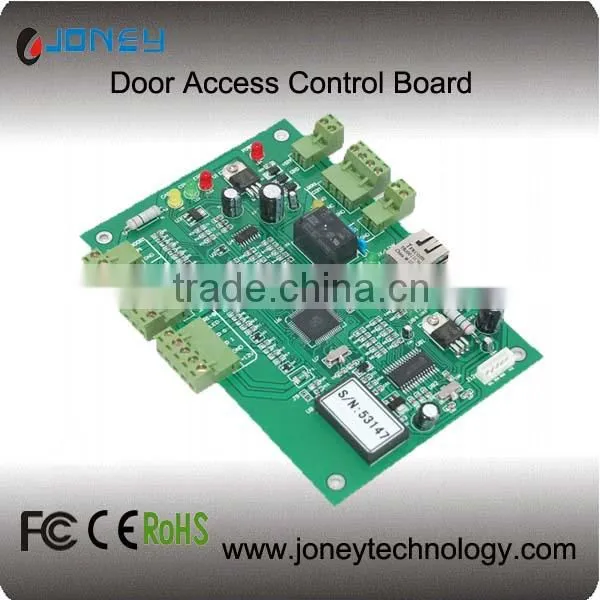

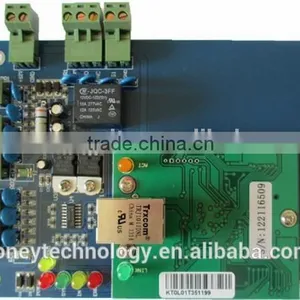

JYC-T2001B is now capable to handle 1 door / 2 readers.

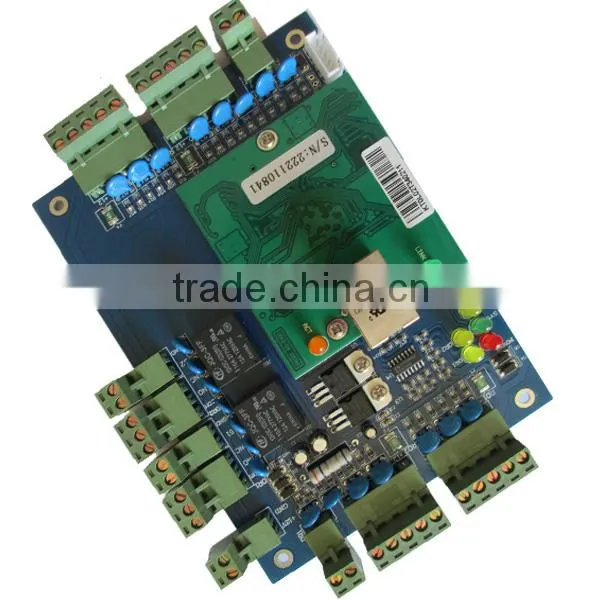

JYC-T2002B is now capable to handle 2 doors / 4 readers.

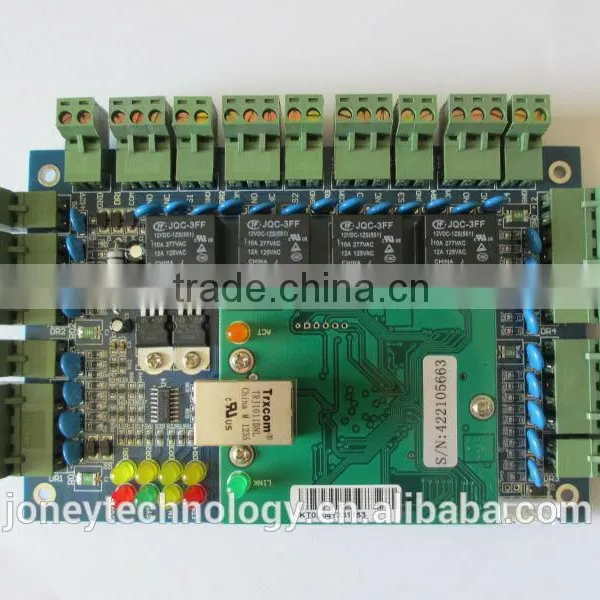

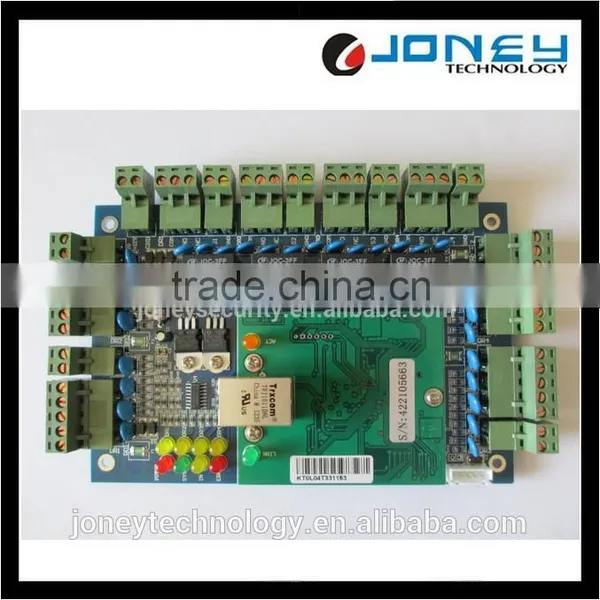

JYC-T2004B is now capable to handle 4 doors / 4 readers and 4 buttons

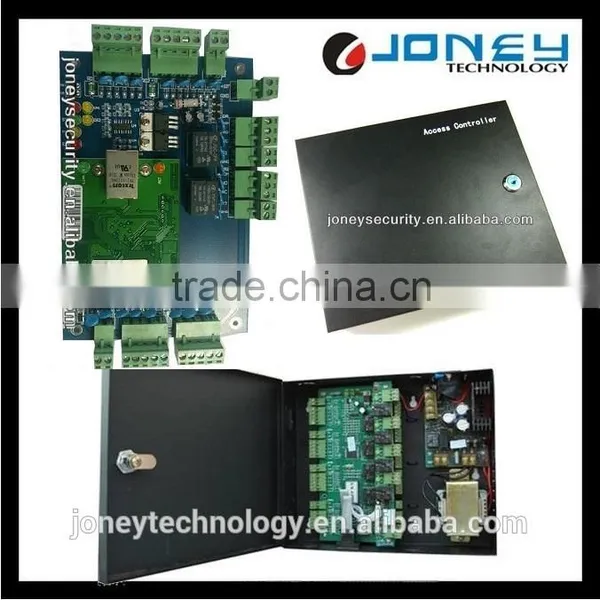

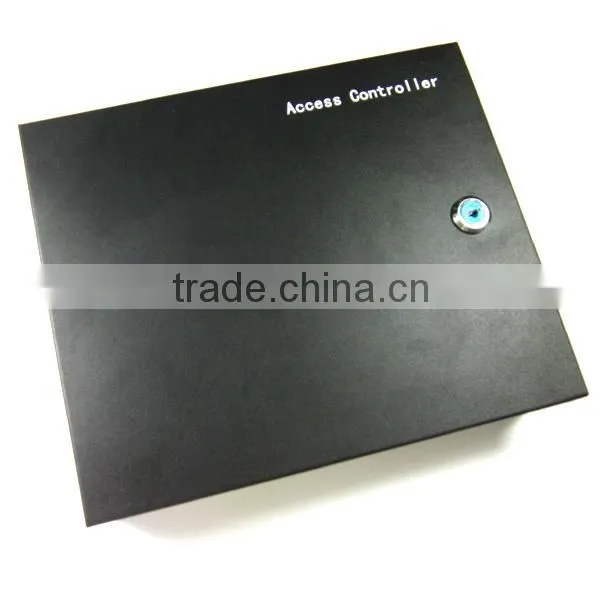

access control board Iron Box and Power
Details

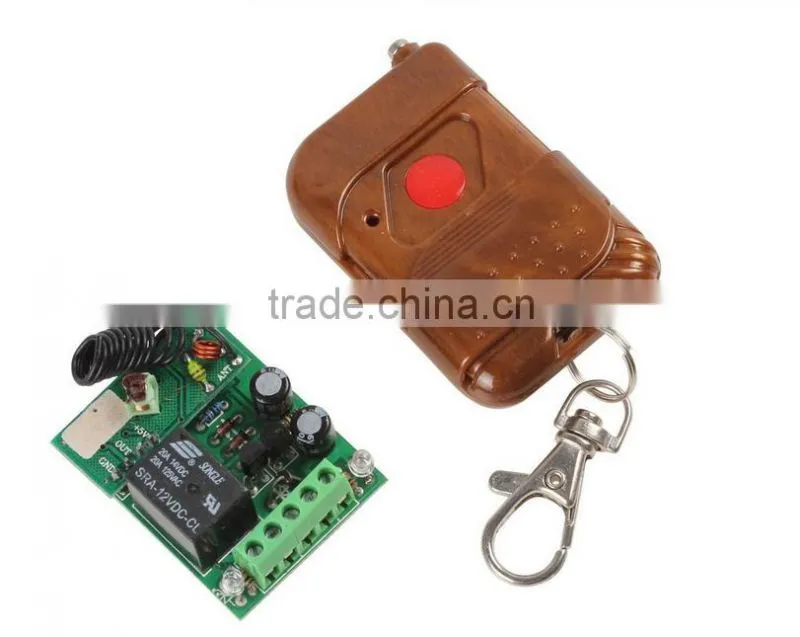

Access Control--Remote Control

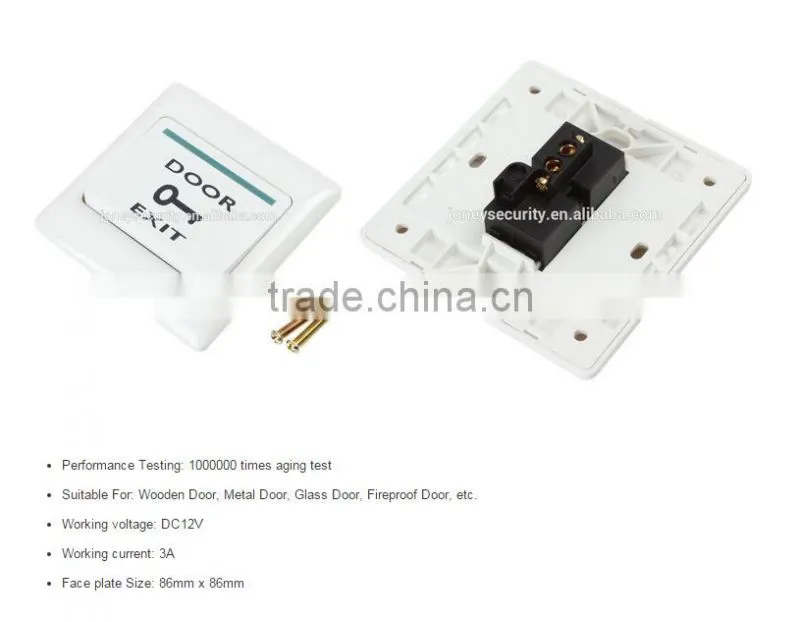

Access control system- Exit button

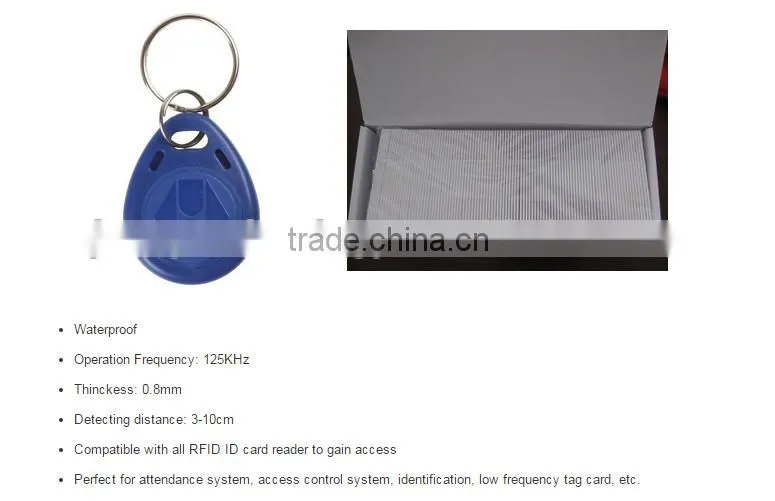

Access control-125Khz RFID Card/Key fob

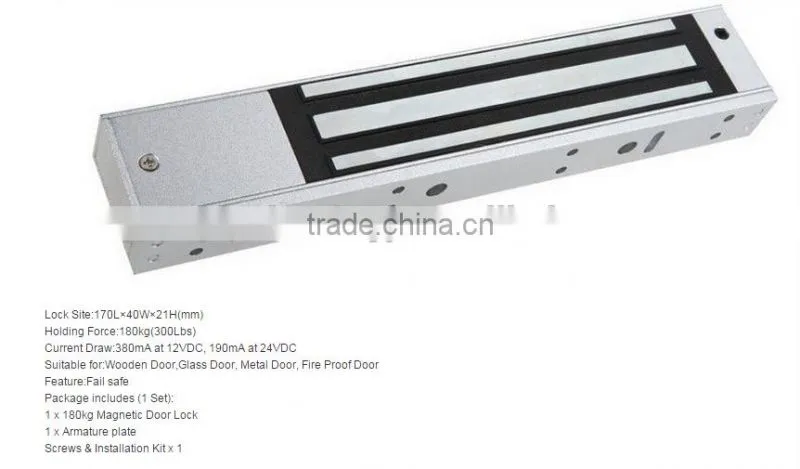

Access control- Electric Magnetic Lock

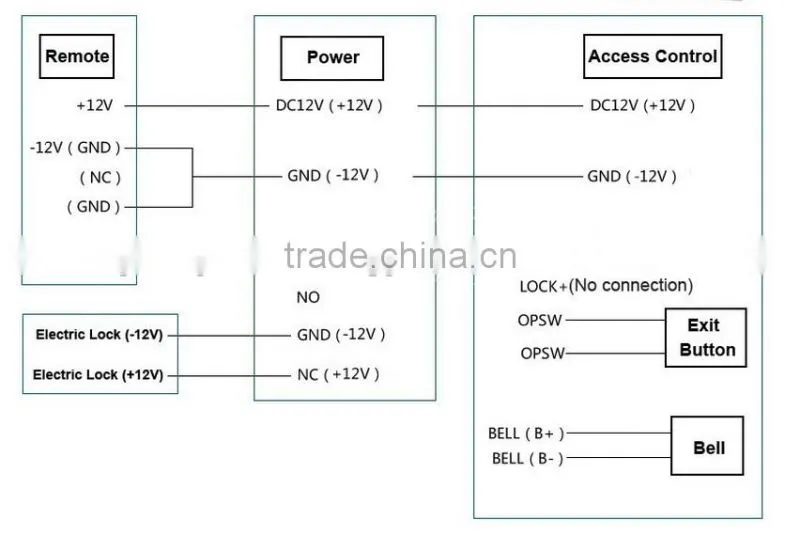

Connection

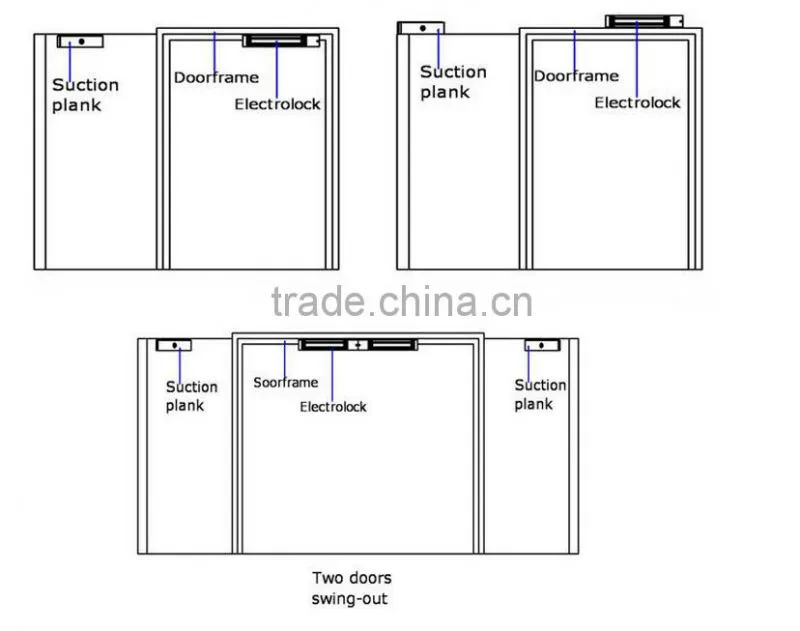

Magnetic Lock Installation Instruction
OEM Service
Our Services
OEM Service
80% of our products are OEM ,which means products are delivered with customer’s brand .We have worked for Hisilicon ,Sony, Samsung ,Blue Iris ,Geovision ,etc.
We make customers’ brand or logo on products , user manual ,software ,label and make special packing box for customer.
If you have OEM order for high quality cctv and access control products ,We are the best choice for you.
