Specification &Details
Bay trail J1900 quad core Nano itx Pfsense Firewall and VPN router with 4 ethernet ports fanless designed
Features:
♦Fanless heat sink structure
♦ AI alloy chassis, compact structure, flexible installation
♦ Integrated Intel® J1900 quad-core 2.0GHz processor
♦ 1x VGA
♦ 4 x Gigabit Ethernets ,support Wake on LAN
♦ supports 16GB/32GB eMMC
Specification:
Chassis |
Color |
Sliver |
Dimension |
128mm x 128mm x 41mm(L x W x H) |
|
Structure |
Fanless heat sink structure |
|
Material |
Aluminium alloy |
|
Motherboard |
Model No. |
STX-R19F VER:1.0 |
CPU |
Integrated Intel® J1900 quad-core 2.0GHz |
|
Graphic |
Intel®HD Graphics |
|
Memory |
1 x DDR3L/1.35V/2GB Ram Memory |
|
Storage |
2.5"HDD |
N/A |
CF |
N/A |
|
SSD |
32GB |
|
eMMC |
16G/32G(optional) |
|
Features |
LAN |
4 x LAN(Intel WG82583V Gigabit Ethernet ),support Wake on LAN / PXE function |
USB |
2 x USB2.0 |
|
1 x USB3.0 | ||
Serial Ports |
1 x COM |
|
Display |
1 x VGA |
|
Expansion Slots |
2 x MINIPCIE(1 x MSATA,1x WIFI interface) |
|
Indicater |
1 x PWRLED, 1 x HDDLED |
|
System Control |
Power switch |
|
Wireless |
1x 2 x WIFI/3G SMA antenna(optional) |
|
Power |
Power supply |
DC 12V/3A adapter input |
Reliability |
Installation |
Desktop or wall_mounted |
Working T. |
10℃~60℃ |
|
Storage T. |
-20℃~70℃ |
|
Relative humidity |
5%-95%( relative humidity, non_condensing ) |
|
Vibration |
0.5g rms/5-500HZ/random/operating |

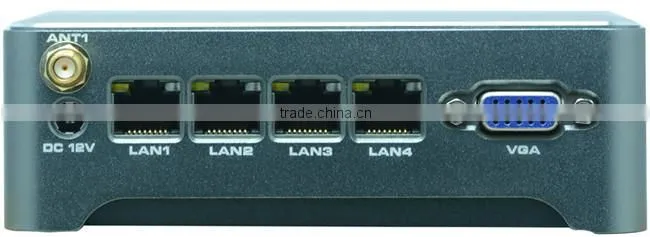

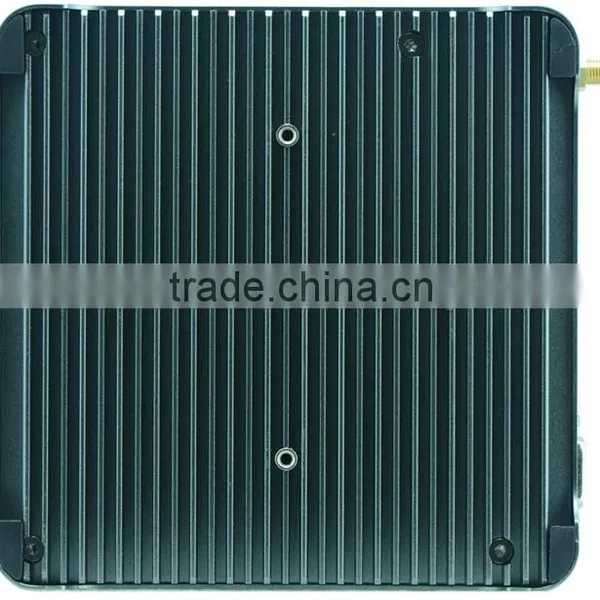

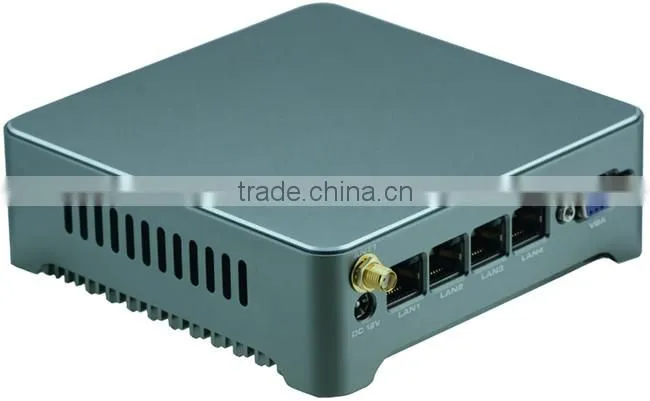

Images of product:
Order Information:
No. |
Model No. |
CPU |
Motherboard |
Memory |
SSD |
LAN |
USB |
WIFI |
Power |
OS |
1 |
R19CA |
J1900/2.00GHz |
R19F |
2G |
32G |
4 x WG82583V |
3 |
N/A |
12V/3A |
WIN7 |
Company information:
Certification:

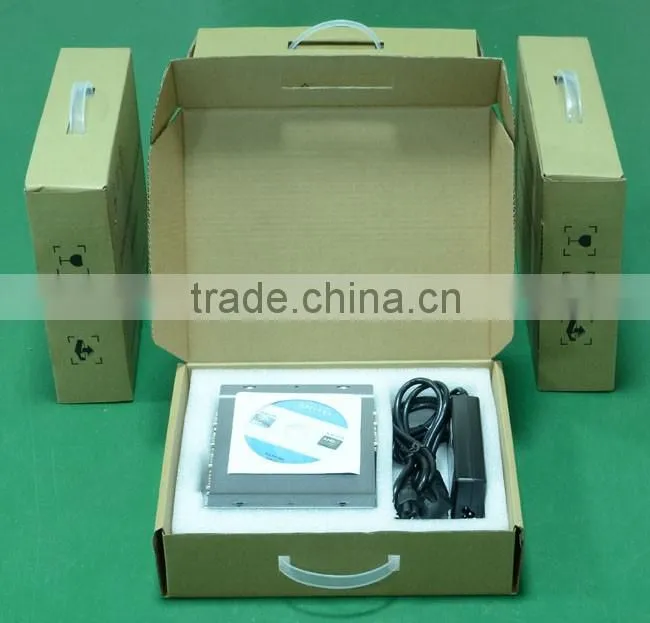

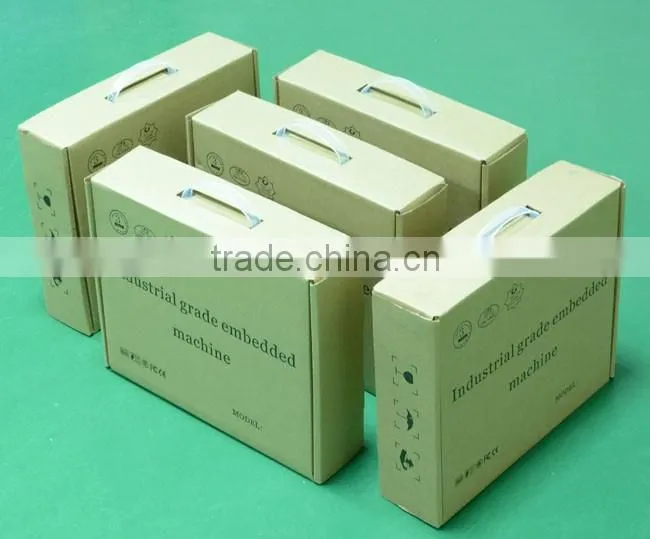

Package:
Delivery method:
We are an Intel IoT Solutions Alliance Affiliate Member
