Products Names
H87 Chipset 8 ethernet Firewall motherboard support cpu LGA1150 socket
Specifications
Model NO. | H87SL_B VER1.1 |
CPU | Support LGA1150 Intel® Core™ i3/i5/i7 Pentium 22nm Core processor |
Chipset | Intel® H87 High-speed chipset |
Memory | 2* SO DDR3,Support 1600/1333MHz Memory ,Up to 16GB |
Display | Integrated Intel®HD Graphics |
LAN | 8* 82574L Intel Gigabit network card chip, support network wake-up /PXE function |
Integrated 2 Group BYPASS(Control 1 2 and 3 4 Lan) | |
Storage | 4* SATAⅢ |
1* SSD MSATA Solid state hard disk interface | |
Expansion Slots | 1* 8X PCIE,Gigabit optical fiber port |
Rear I/O | 2* USB2.0 |
8* RJ-45 | |
1* RJ45-DB9 COM(CISCO standard definition) | |
1* LED Signal indicator(Indicating power and hard drive indicator light) | |
1* Touch button | |
Internal I/O | 1* JVGA1(2*12pin) Connection monitor with VGA adapter |
1* COM(2*5pin) | |
2* LAN_LED 2*13pin | |
4* USB2.0(2*5pin ) | |
1* PS/2 (1*6Pin) | |
1* FP1 front panel audio connector (2*5pin) | |
1* ATX_20P 1U | |
Fan Interface | 1* CPUFAN 4pin;2* SYSFAN 4pin |
GPIO | Support 4 input and output GPIO |
BIOS | AMI 64MB Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | ATX Power input |
Operating Temp. | -10℃~60℃ |
Storage Temp. | -20℃~70℃ |
Humidity | 5%-95% (relative humidity; non-condensing) |
Dimension | 280mm x 209mm |
Order information
No. | Model No. | CPU | Memory | Display | LVDS | LAN | USB | COM | BYPASS | Power |
1 | H87SL VER:1.1 | LGA1150 | 2*SODDR3 | 1*VGA | X | 8*82574L | 6 | 2 | 2 group | ATX |

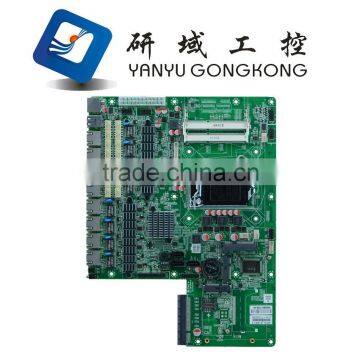

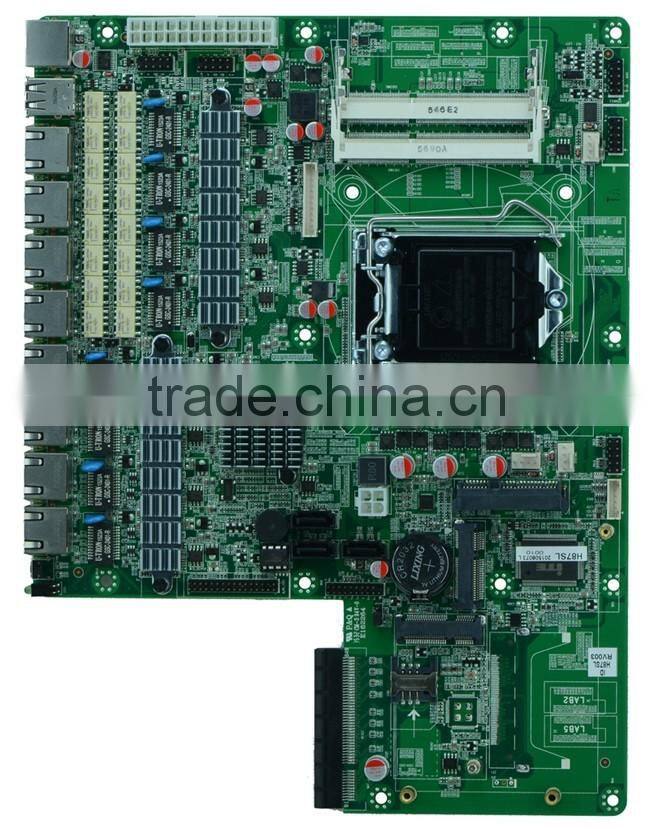

Products pictures
Payment Terms
1.T/T
2.paypal
3.Western union
4.Escrow
Packaing & Shipping

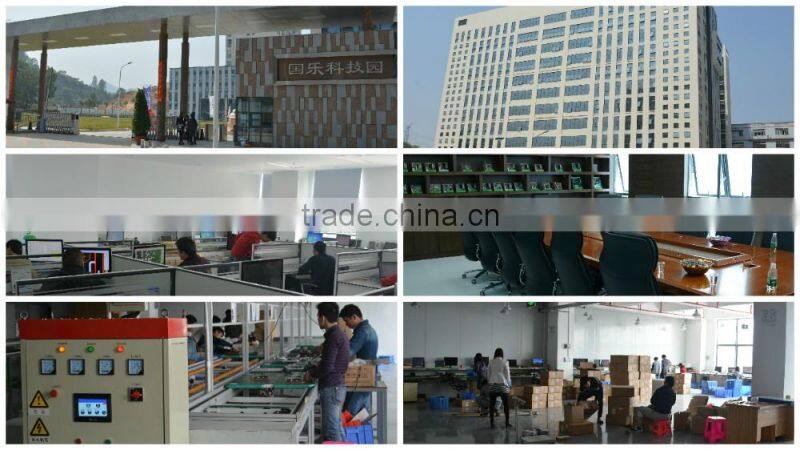

About US
SHENZHEN HANZSUNG TECHNOLOGY CO., LTD
We focus on quality of industrial motherboards in detail. We aim to bring our customer long term business"
Founded in 2000, Shenzhen Hanzsung Technology Co., Ltd, Member of Intel® Intelligent Systems Alliance, is a R&D and manufacturing technology-innovation enterprise specialized in supplying quality PC cards and embedded products. With independent intellectual property rights and strong independent R&D, production capacity, Hanzsung, headquartered in Shenzhen China, prides itself on being one of IT industry private
enterprises with strong support of the Shenzhen Municipal Goverment.
Contact info
SHENZHEN HANZSUNG TECHNOLOGY CO., LTD
Terry Lei
Add.:8/f,Building 3, Guo Le High-tech Industrial Park ,Li Rong Road .Dalang,
LongHua New District,Shenzhen,Guangdong,China
Tel:0755-2163 6872(6027) Fax: +86 0755 23208809
Website:
Tel: +86 755 89395385 Fax No. : +86 755 23208809
You are welcomed to visit our company to gain competitive price !!
