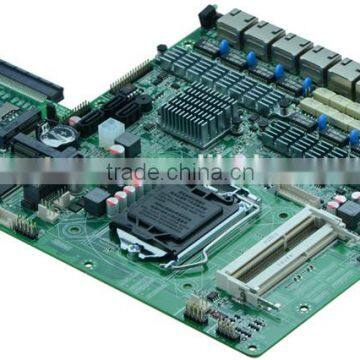

Intel lga 1150 motherboard ddr3 Firewall motherboard 8 ethernet

Model NO.

H87SL_B VER1.1

CPU

Support LGA1150 Intel® Core™ i3/i5/i7 Pentium 22nm Core processor

Chipset

Intel® H87 High-speed chipset

Memory

2* SO DDR3,Support 1600/1333MHz Memory ,Up to 16GB

Display

Integrated Intel®HD Graphics

LAN

8* 82574L Intel Gigabit network card chip, support network wake-up /PXE function

Integrated 2 Group BYPASS(Control 1 2 and 3 4 Lan)

Storage

4* SATAⅢ

1* SSD MSATA Solid state hard disk interface

Expansion Slots

1* 8X PCIE,Gigabit optical fiber port

Rear I/O

2* USB2.0

8* RJ-45

1* RJ45-DB9 COM(CISCO standard definition)

1* LED Signal indicator(Indicating power and hard drive indicator light)

1* Touch button

Internal I/O

1* JVGA1(2*12pin) Connection monitor with VGA adapter

1* COM(2*5pin)

2* LAN_LED 2*13pin

4* USB2.0(2*5pin )

1* PS/2 (1*6Pin)

1* FP1 front panel audio connector (2*5pin)

1* ATX_20P 1U

Fan Interface

1* CPUFAN 4pin;2* SYSFAN 4pin

GPIO

Support 4 input and output GPIO

BIOS

AMI 64MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

ATX Power input

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

280mm x 209mm

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

BYPASS

Power

1

H87SL VER:1.1

LGA1150

2*SODDR3

1*VGA

X

8*82574L

6

2

2 group

ATX
