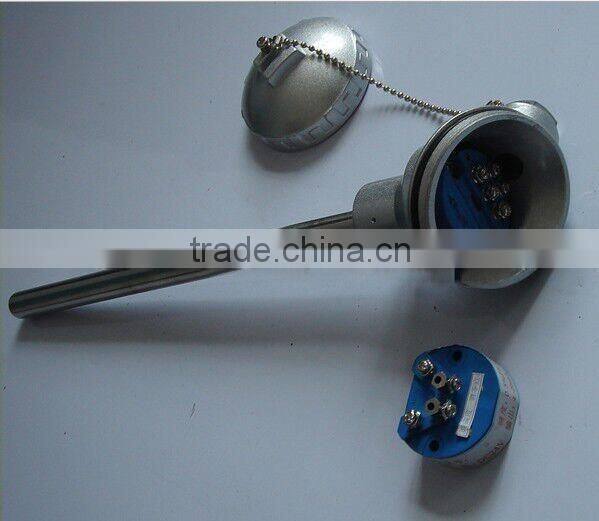

Help CenterIndustrial Assembly Thermocouple Sensor Pt100 Type
Related Products
rtd pt100 rtd temperature sensor
RTD Introduction
WZ series of assembing type industrial thermal resistances are designed and produced according to IEC standard. They normally work as a temperature sensor. They are used together with temperature displays and controls to detect and control the temperature of gas, liquid or solid surface. The working range is from -200ºC to 800ºC. A WZ thermal resistance contains temperature sensor, fixing parts and junction box.
RTD specifications
Calibration |
Nominal resistance(0°C) Ω |
Temperature measuring range °C |
tolerance |
R100/ Ro w |
Pt10 |
10 |
ceramic elements:-200 ~ 600 mica elements: -200 ~ 420 |
ClassA: ±(0.15+0.2%|t|) ClassB: ±(0.3+0.2%|t|) |
1.3851 |
Pt100 |
100 |
|||
Cu50 |
50 |
-50 ~ 100 |
±(0.3+0.6%|t|) |
1.4280 |
Cu100 |
100 |
We specialize in offering following products: |
1. UE switch, SOR switch,CCS switch,WIKA products,DWYER products |
2. Level Transmitter |
3. Temperature Instrument(transmitter,sensor,switch,gauge) |
4. Pressure Instrument(transmittter,sensor,switch,gauge) |
5. Flowmeter |
6. Rosemount |
7. Yokogawa |
8. Calibrator |
9. Valve |
