High Temperature Temperature Instruments B Type Thermocouple
Products Show

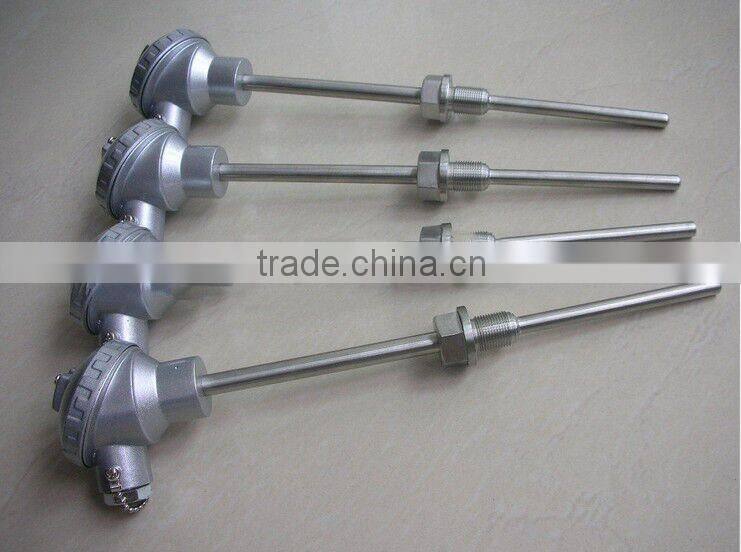

B Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting furnace.
B Type Thermocouple Technical Indicators
Conductir material |
Type |
Graduation |
Spec. of protection tube(mm) |
Use temperature°C |
|||
Total Lenght |
Length in fluid |
external diameter of ceramic tube |
Material of protection tube |
||||
PtRh10-Pt |
WRP |
S |
300 350 400 450 550 650 900 1150 1250 |
150 200 250 300 400 500 750 1000 1100 |
φ16 φ25 |
High Al content tube |
0-1300 |
PtRh30-Ptrh6 |
WRR |
B |
Corundum tube |
0-1600 |
|||
PtRh13-pT |
WRQ |
R |
φ16 φ20 |
High Al content tube |
0-1200 |
||
Mini PtRh10-Pt |
WRP-100 |
S |
252 |
252 |
φ7 |
High Al content tube |
0-1200 |
When inquiry,please specify
1,Type and Graduation
2,Spec. of protection tube(total length and well length,also tube diameter). 3,Temperature needed:0-1800°C Graduation S normally means: 0-1300°C Graduation B normally means: 0-1600°C Graduation R normally means: 1400-1500°C.
Application for B Type Thermocouple
As a sensor for temperature measuring and regulation, industrial-purpose thermocouple is usually connected with display meter and other meters to directly measure temperature of liquid, vapor, gas and solid surface ranging from 40°C to 1800°C.
A. Widely Used In Science and Industry
B. Temperature Measurement for Kilns
C. Gas Turbine Exhaust Application
D. Used For Diesel Engines and Other Industrial Processes.
