K type thermocouple 1300°C
K Type thermocouple is made from NiCr-NiSi, and it is the most popular economic thermocouple. The standard wire diameter of K type thermocouple is from 1.2mm to3.2mm.
It is mainly used to measure temperature in glass and ceramic industry, besides, easy assembly and convenient for replacement, high mechanical strength.
Specifications and Advantages
1, High accuracy, good stability
2, popular and economic
3, Wide temperature range: 0-1300
4, 100% qualified factory test.
1, Type and graduation
Type |
K |
Model |
WRN-130 230 330 430 530 191 |
Circle diameter |
customized |
Temperature range |
0~+1300C |
Tube material |
SS310/304/316,inconel600/ceramic |
Fixing |
screw/flange/none |
Cable |
stainless/silicone/teflon |
Comment:
1, Produce based on client's requirments
2, Methods of fixing: normally without fixing device, but flange or threaded is available
Example
tem: WRN-K-530
Material: Steel 304/316/Cr25Ni20/1Cr18Ni9Ti
Thermocouple wire:+Ni-Cr-Ni-Si
Temperature range:0-1200°C
Total length:1000mm
Unit Weight: about 1.2kgs
Size: 16*1000mm
Flange:DN25
1PC/PP, bulk packed
Qty:10PCS/CTN
N.W.:12kgs
G.W.:20kgs

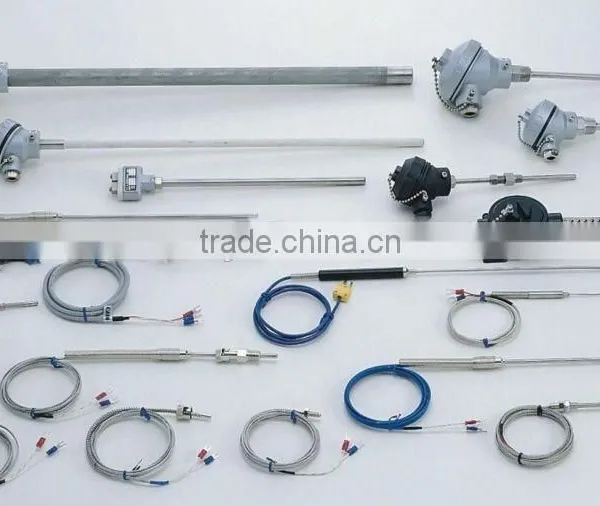

Other products pictures:
| Conductor material | Type | Graduation | long-term use temperature °C | short-term use temperature °C |
| Pt-Rh30-Pt6 | WRR | B | 0-1600 | 0-1800 |
| PtRh13-Pt | WRQ | R | 0-1300 | 0-1600 |
| PtRh10-Pt | WRP | S | 0-1300 | 0-1600 |
| NiCrSi-NiSi | WRM | N | 0-1000 | 0-1100 |
| NiCr-NiSi | WRN | K | 0-900 | 0-1000 |
| NiCr-Cu | WRE | E | 0-600 | 0-700 |
| Fe-Cu | WRF | J | 0-500 | 0-600 |
| Cu-Cu | WRC | T | 0-350 | 0-400 |
