Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Thermocouple Sensors

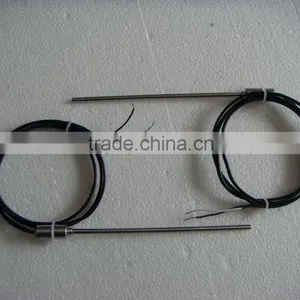

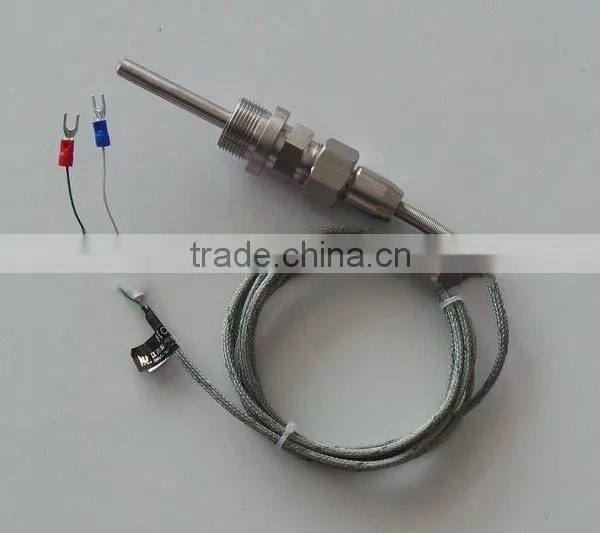

Thermocouple Sensors

Name: Thermocouple Sensors
Brand: shenzhou
SKU: 133192605

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

shenzhou

Model Number:

K,N,J,E,T

Contact Supplier Request Quote Chat Now

Shaoxing Shangyu Shenzhou Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name shenzhou

Model Number K,N,J,E,T

Usage Industrial

Theory Temperature Sensor

Thermocouple probes are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.

A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature,
Shangyu Shenzhou Instrument Co., Ltd providing Thermocouples are manufactured in different combinations of metals. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.

TYPE AND SHEATH TABLE:

Product Name	Code	Type	Sheath material	Outer dia.(mm)	Temperature
Ni Cr - Ni Si	KK	K	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
Ni Cr Si - Ni Si	NK	N	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
Ni Cr -Konstantan	EK	E	SS304	0.5-1.0	400
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Fe - Konstantan	JK	J	SS304	1.0	300
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Cu - Konstantan	TK	T	SS304	1.0	-200-100
			SS321	1.5-3.2	100-200
			SS316	4.0-8.0	100-350

ACCURACTY TABLE:

Name	Type	Class of Accuracy
		I		II		III
		Tolerance	Temperature	Tolerance	Temperature	Tolerance	Temperature
Ni Cr - Ni Si	K	1.5 or 0.4%t	-40~1000	2.5 or 0.75%t	-40~1000	2.5 or 0.75%t	-200~40
Ni Cr Si- Ni Si	N		-40~1000		-40~1000		-200~40
Ni Cr - Konstantan	E		-40~800		-40~800		-200~40
Fe - Konatantan	J		-40~750		-40~750		---
Cu - Konstantan	T	1.5 or 0.4%t	-40~350	1 or 0.75%t	-40~350	1 or 0.75%t	-200~40
Pt Rh 10 - Pt	S	1 or 1+(t-1100)x0.003	0~1600	1.5 or 0.25%t	0~1600	---	---
Pt Rh 13 - Pt	R	1 or 1+(t-1100)x0.003	0~1600		0~1600	---	---
Pt Rh 13 - Pt Rh 6	B	---	---		600~1700	4 or 1.5%t	600~1700
