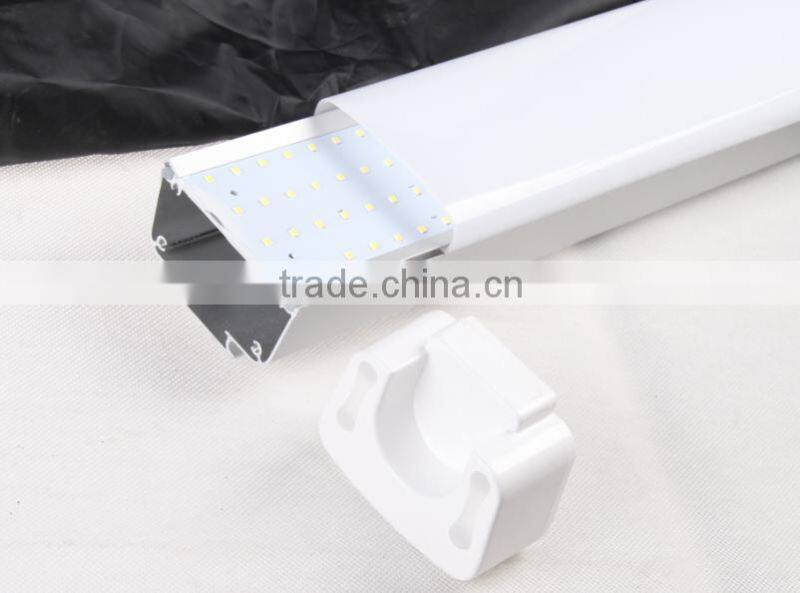

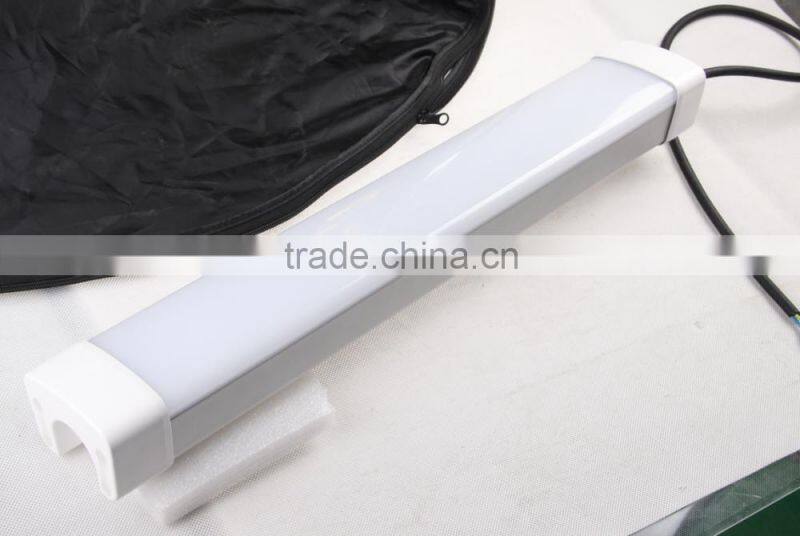

1.Product Name: 2*24w t8 1.5m tri-proof led tube light ,IP65,IK 10,led tri-proof light ,CE ROHS
2.Detail and Technical Information as Below :
Model No |
NP060A-10*2W |
NP120A-18*2W |
NP150A-24*2W |
||
Watts(±10%) |
20W |
36W |
48W |
||
Voltage (Frequency) |
90-265VAC(50/60Hz) |
||||
Power Factor (PF) |
>0.9 |
||||
LEDs (SMD2835)/PCS |
48*2 |
96*2 |
120*2 |
||
Lumen(±10%)Lm |
1600 |
3000 |
4000 |
||
Efficiency (±10%)Lm/W |
85 |
85 |
85 |
||
CCT(K) |
F3000,F4000,F6500 |
||||
CRI(Ra) |
>80 |
||||
Beam Angle |
120° |
||||
Working Temperature |
-20℃~45℃ |
||||
RH |
10%~95%RH |
||||
Storage Temperature |
-30℃~60℃ |
||||
Lighting Lifespan |
50000 H |
||||
Body Material |
ABS+PC Clear Cover ABS fastner |
||||
Tubes |
T8 0.6M*2 |
T8 1.2M*2 |
T8 1.5M*2 |
||
Protection Rate |
IP65 |
||||
Certifications |
ROHS,CE
|
||||
Model No |
Spec |
L |
LF |
H |
W |
Tubes |
NP060A-10*2W |
0.6m |
663 |
400 |
90 |
124 |
T8/T10 |
NP120A-18*2W |
1.2m |
1265 |
900 |
90 |
124 |
T8/T10 |
NP150A-24*2W |
1.5m |
1565 |
1000 |
90 |
124 |
T8/T10 |
No |
Model No |
Spec |
(PCS)/CTNS |
G.W(KGS) |
Carton Size/L*W*H(mm) |
1 |
NP060A-10*2W |
0.6m |
9 |
15.5 |
685*417*300 |
2 |
NP120A-18*2W |
1.2m |
6 |
19.2 |
1295*285*300 |
3 |
NP150A-24*2W |
1.5m |
6 |
24.8 |
1595*285*300 |
