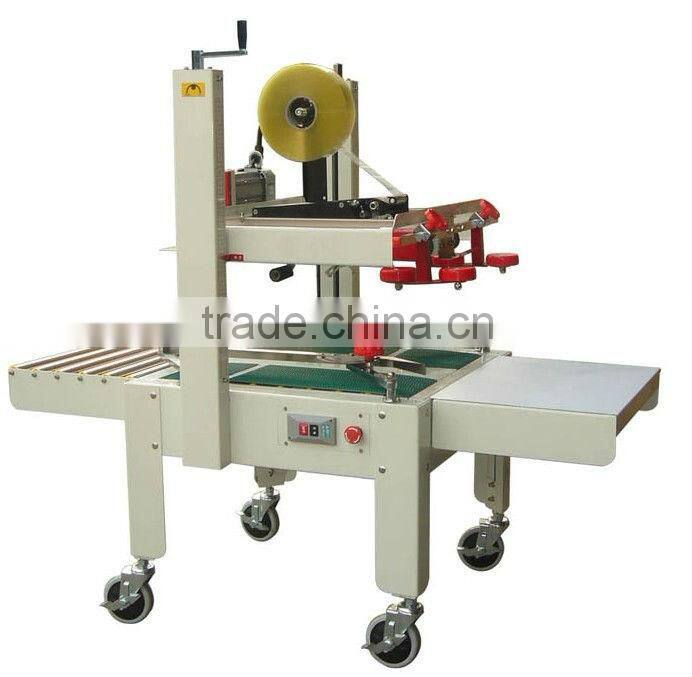

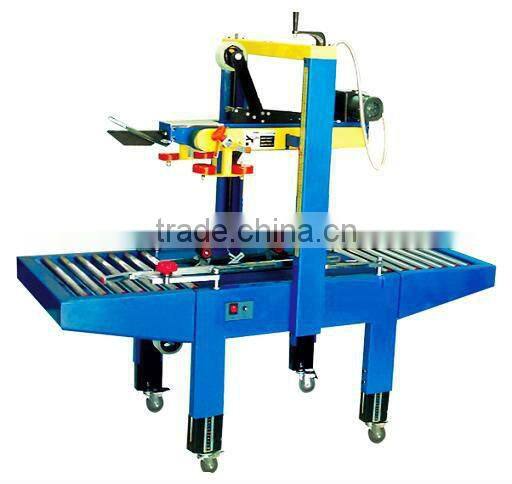

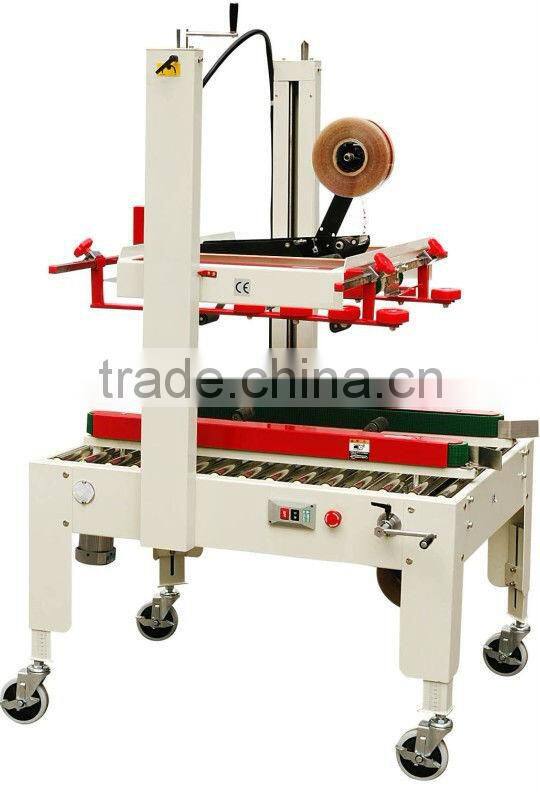

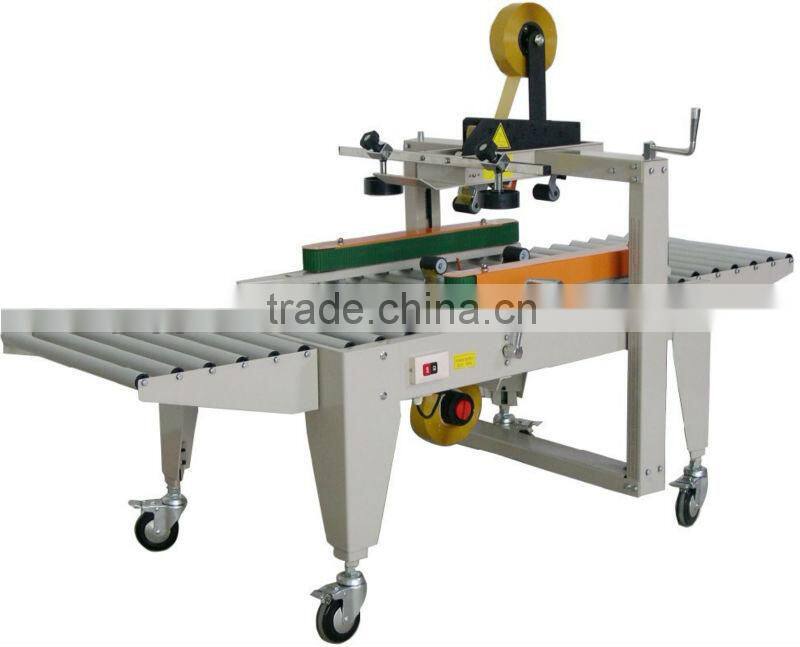

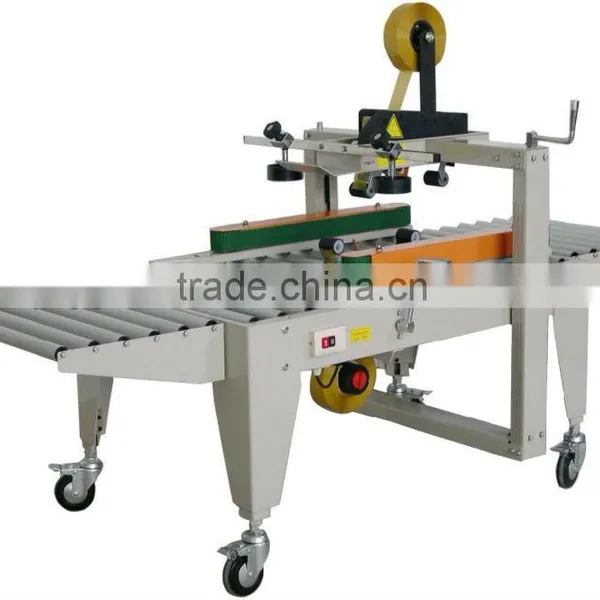

Semi-auto Carton Sealing Machine
1 Imported parts, electrical and pneumatic components
2 Manually adjust the height and the width for different size of cartons
3 This semi automatic carton sealing machine have both the side belts driven model and the up-down driven modle,does the top and bottom sealing
4 Cutter Safety system to prevent hands form stabbed by the cutter
5 Both steel and stainless steel types
6 With this semi automatic carton sealing machine,the customer could choose the printed scotch tape to attract more interest and improve the goods impression
Parameters:
Packing Speed |
20 cartons/min |
Sealing Type |
Up and down |
Adhesive tape width |
36mm,48mm,60mm |
Sealing Length |
≥150mm |
Max sealing size |
500(H)×600(W)mm |
Min sealing size |
150(H)×90(W)mm |
Sealing height |
500-750mm |
Tape |
PVC Sticky Tape,scotch tape,sellotape |
Voltage |
AC220V 50HZ 180W |
Size |
1500×740×1425mm |
Packing size |
960×820×1270mm |
Net Weight |
120Kg |
Semi & Fully Automatic Carton Sealing Machine
Automatic carton sealing machine is mainly used in sealing and packing cartons, which
can be used either independently or as a necessary part of a production line.
The machine can adjust itself to different sizes of cartons. This machine adopts pneumatic method
for packaging automatically, it overcomes some disadvantages when adopts manual or semi-auto ones, such as slow speed and the unstable quality. This machine will not damage the surface
of packaged objects. The air-jar with every action point adopts AirTAC products, the capability is
very stable.
Features:
1. Sealing different sizes of cartons without adjustment by human, it will be fit automatically
2. The sealing pressure is adjustable, according to the different materials of cartons
3. The pushing strength of the movement arms on two-side can be regulated according to the weight of cartons
4. Two-side movement arms adjust the objects packaged to the right position automatically
5. The movement frame is driven by double air-jar, smart and smoothly, using long time
6. The 25kg carton can be conveyed steadily by large power convey motor
7. Pneumatic and electric parts combine perfectly, with operation convenient and simple
8. The fine structure and the harmonious color bring pleasure to both the eye and the mind.
---------------------------------------------------------------------------------------------------------------------
