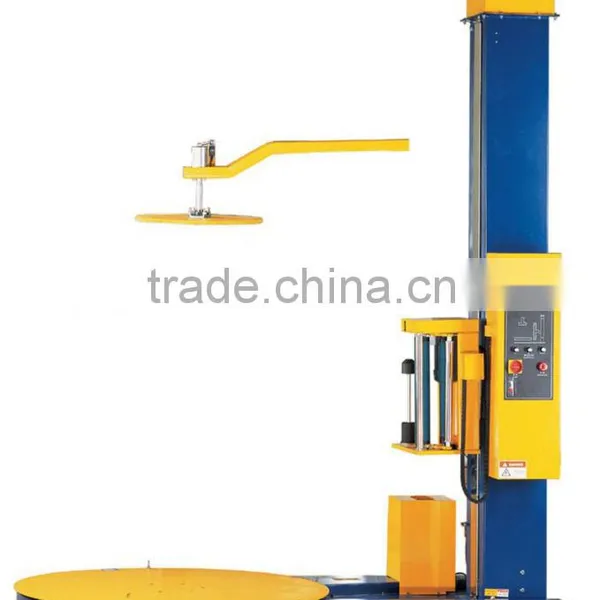

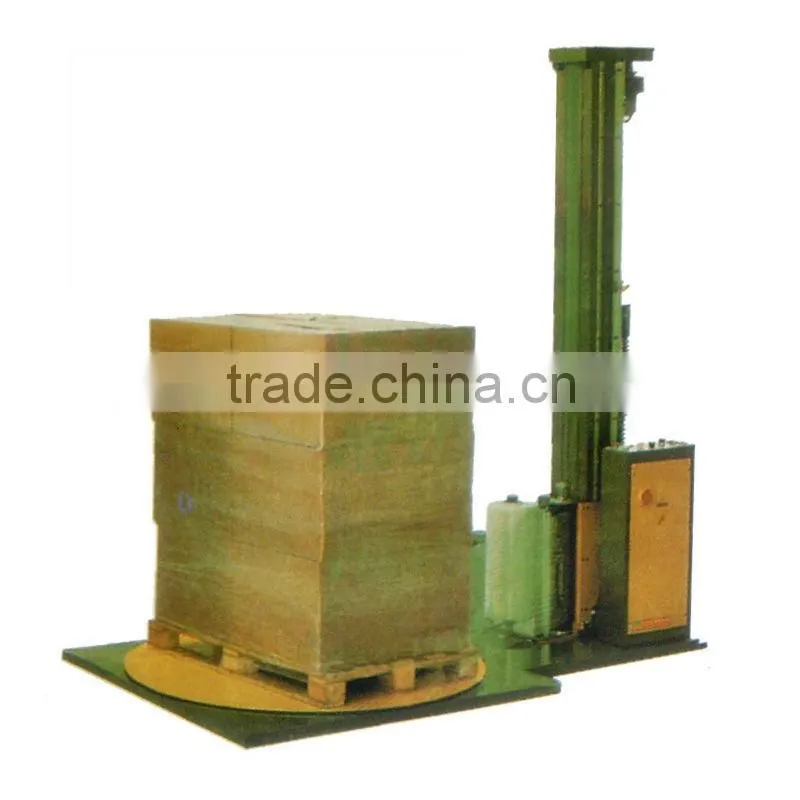

Stretch wrapping machine
v Simple Pallet Wrap machine
This wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet, Which make goods more stable, beautiful, neat, and effect with waterproof, dustproof, prevent scattering, theft proof, convenient into and out.
Basic characteristics:
1. Adopt PLC programmable controller control. Can set wrapping circle number, can choose local strengthening, automatic reset, etc.
2. Equipped with human-machine interface, parameters setting simply and conveniently.
3. Designed concisely and maintain conveniently
4. Closed structure, strong and durable.
Specification:
Simple Pallet Wrap machine as the most simple wrap machine in pallet series has a friendly operate panel
and competitive price.
Top plate is optional and specially designed for holding an unstable product.
Ramp is optional and specially designed for easy loading a pallet on the turntable.
Ø Technology data: | |
Model |
GM-1650E |
Wrap size(L×W) |
(500-1200)mm×(500-1200)mm |
Wrap height(max) |
L type:1800mm H type:2400mm Y type:2800mm |
Wrap efficiency |
20-40 Pallets/Hour |
Turntable speed |
0-12rpm Adjustable turntable speed |
Turntable diameter |
1650mm |
Turntable height |
78mm |
Turntable weight capacity (max) |
2000kg |
Film carriage |
Film carriage with Mechanical brake (variable film tension control) |
Lift system |
Double chain structure,lift speed adjustable |
Control system |
PLC control,wrap layers adjustable,Turntable automatic reset,photo-eyes auto-height sensing |
Total weight(max) |
700kg |
Machine size |
2745mm×1650mm×(2270-2870)mm |
Power/voltage |
Turntable:0.75kw Film carriage:0.35kw Lift system: 0.37kw`/AC220V |
Top plate(optional) |
Motor-Driven |
Ramp(optional) |
Custom made |
