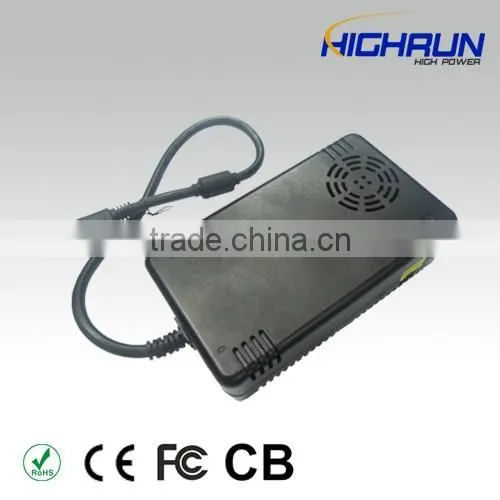

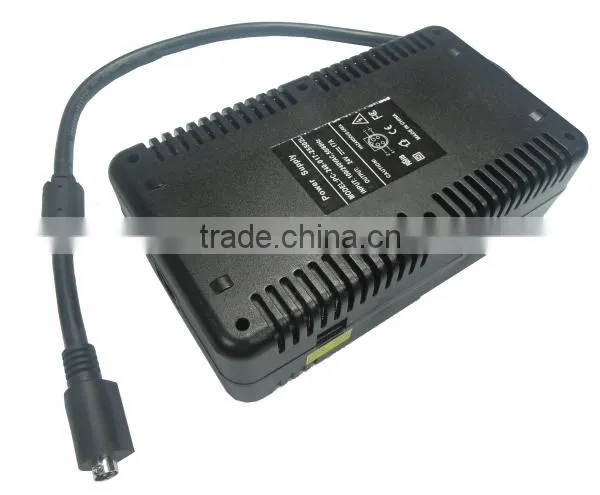

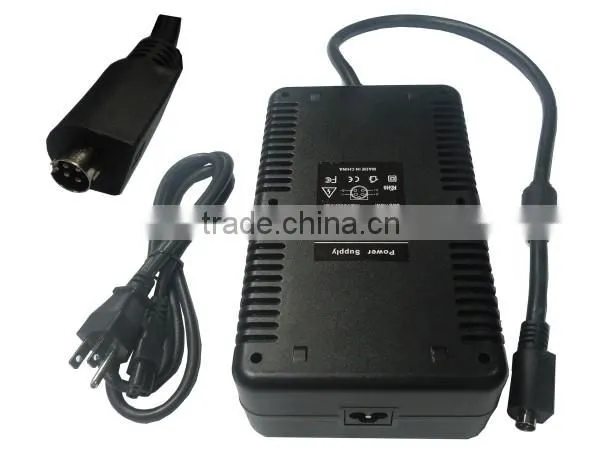

Adapter 48v Power Supply 8a for Electric Equipment Made in China

US$ 32 - 39 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

48V 8A 384W

Shenzhen DongFangHaiRun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number 48V 8A 384W

Output Power 201 - 300W

Output Type Single

Input Voltage Other, 115V or 230V by switch

Output Voltage 48V

Output Frequency 47~64HZ

Output Current 8A

Shenzhen adapter 48v power supply 8a for electronic equipment

Product Description

Specification
Specification
Features:
1:AC input range by the switch
2:Protection:Short Circuit Protection,Overload Protection,Over Voltage Protection
3:Forced air cooling by built-in DC fan with fan speed control
4:Thermostat fan operation
5:100% full load aging test
6:LED power-on indicator
7:100% PC material
Electrical Specification:
Output	1:DC voltage	48V
	2:Rated Current	8A
	3:Current Range	0--10A
	4:Ripple&Noise(max)	≤120MV
	5:Voltage ADJ.Range	±0.5%
	6:voltage tolerance	±0.5%
	7:Line regulation	±0.5%
	8:Load regulation	±0.5% Full Load
	9:Setup Rise Time	200ms 40ms/230VAC
	10:Hold Time(TYP.)	20MS/230VAC 15MS/115VAC
Input	1:Voltage Range	115v or 230v by switch
	2:Frequency Range	47——63HZ
	3:Efficiency	85%
	4:Leak Current	≤0.1MA/230VAC 115VAC
Protection	1:Over Load	Rated Output Power 105-140%
	2:Over Voltage	> Rated Voltage 108%
	3:Short circuit	Load automatically after fault condition is removed to restore
Function	1:Fan switch Control	RTH≥50°C Fan ON RTH≤50°C Fan OFF
Environment	1:operate temperature	-20C~65C
Environment	2:storage temperature, storage humidity	-20C~+80C, -10%~90%RH no Condensing
Safety&EMC	1:withstand voltage	Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC, Output and enclosure:0.5KVAC
Safety&EMC	2:EMC IMMUNITY	Compliance to EN55022 (CISPR22) CLASS A
Others	1: Dimension	215-125-65mm
Others	2:Package	Normally white paper box
