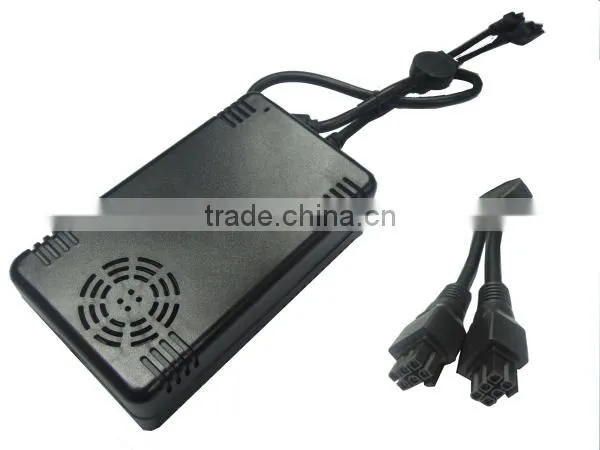

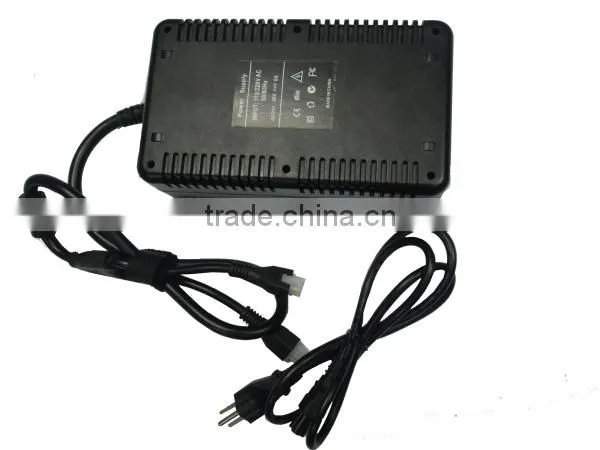

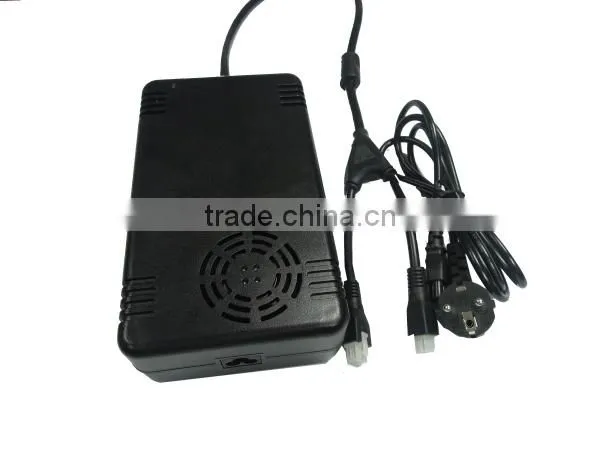

48V 8.3A Power Supply Adapter 400W With CE RoHS FCC CB

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

48V 8.3A 400W

Shenzhen DongFangHaiRun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number 48V 8.3A 400W

Output Power 201 - 300W

Output Type Single

Input Voltage Other, 115V or 230V by switch

Output Voltage 48V

Output Frequency 47~64HZ

Output Current 8.3A

Specifications

power supply adapter
1. Real power
2. PC material
3. CE ROHS FCC CB approved
4. Low consumption

48V 8.3A power supply adapter 400W with CE RoHS FCC CB

Product Description

Specification
Specification
Features:
1:AC input range by the switch
2:Protection:Short Circuit Protection,Overload Protection,Over Voltage Protection
3:Forced air cooling by built-in DC fan with fan speed control
4:Thermostat fan operation
5:100% full load aging test
6:LED power-on indicator
7:100% PC material
Electrical Specification:
Output	1:DC voltage	48V
	2:Rated Current	8.3A
	3:Current Range	0--8.3A
	4:Ripple&Noise(max)	≤120MV
	5:Voltage ADJ.Range	±0.5%
	6:voltage tolerance	±0.5%
	7:Line regulation	±0.5%
	8:Load regulation	±0.5% Full Load
	9:Setup Rise Time	200ms 40ms/230VAC
	10:Hold Time(TYP.)	20MS/230VAC 15MS/115VAC
Input	1:Voltage Range	115v or 230v by switch
	2:Frequency Range	47——63HZ
	3:Efficiency	85%
	4:Leak Current	≤0.1MA/230VAC 115VAC
Protection	1:Over Load	Rated Output Power 105-140%
	2:Over Voltage	> Rated Voltage 108%
	3:Short circuit	Load automatically after fault condition is removed to restore
Function	1:Fan switch Control	RTH≥50°C Fan ON RTH≤50°C Fan OFF
Environment	1:operate temperature	-20C~65C
Environment	2:storage temperature, storage humidity	-20C~+80C, -10%~90%RH no Condensing
Safety&EMC	1:withstand voltage	Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC, Output and enclosure:0.5KVAC
Safety&EMC	2:EMC IMMUNITY	Compliance to EN55022 (CISPR22) CLASS A
Others	1: Dimension	215-125-65mm
Others	2:Package	Normally white paper box
