Specifications
led driver led down light1. Efficiency=86%
2. PF=0.9
3. CE UL CB SAA
4. 3 year warranty

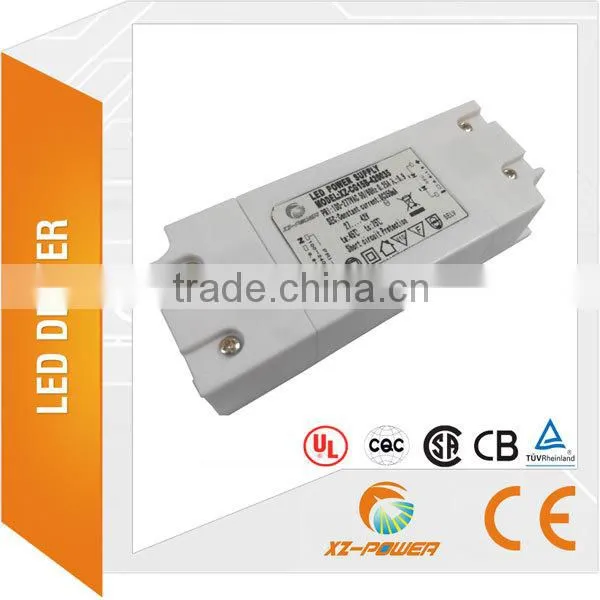

Xiezhen Factory Low Comsumption LED driver led down light
1. Supply XZ-CG15B 10~15W Constant Current LED Driver LED Switching Power Supply
2. Efficiency=89%
3. PF>0.9
4. Output Voltage Range 15-28V/27-42V
5. Output Current Range 200-420mA/200-350ma
6. Certificates UL TUV CB SAA CQC
7. Application LED ceiling light, led spot light, led panel light
8. Lead Time 7~15 days
9. PC Housing
Xiezhen Factory Low Comsumption LED driver led down light |
|||
Item No |
XZ-CG15B |
|
|
Type |
Constant Current |
||
Structure |
External isolated |
||
Input Volatage |
AC 100-277V |
||
Output Voltage |
15-28V/27-42V |
||
Output Current |
200-420mA/200-350ma |
||
Output Power |
15W LEVEL |
||
Power Factor |
0.9 |
||
Efficiency |
85% |
||
Current Accuracy |
±5% |
||
Working Tem |
from-10°C to 45°C |
||
Protection |
Short circuit/over current/over voltage |
||
Dimension |
97*38*22mm |
||
Certification |
UL TUV SAA CQC CB |
||
N.W/100pcs |
14Kg |
||
G.W/100pcs |
13Kg |
||
Packing Size |
451*338*441mm |
||
MOQ |
1pcs |
||
Warranty |
3 years |
||
Model |
Power Consumption |
Input Voltage |
Output Voltage |
Output Current |
Current Accuracy |
Efficiency |
PF |
Dimension L*W*H |
XZ-CG15B |
15W series |
100-277V |
15-28V |
200-420MA |
±5% |
85% |
0.9 |
L97*W38*H22 |
27-42V |
200-350MA |
86% |
||||||
XZ-CG24B |
24W series |
100-277V |
15-28V |
400-700MA |
±5% |
87% |
0.9 |
L120*W40*H27 |
27-42V |
200-550MA |
88% |
||||||
XZ-CG30B |
30W series |
100-277V |
27-42V |
500-700MA |
±5% |
88% |
0.9 |
L145*W42*H29 |
XZ-CG45B |
45W series |
100-277V |
26-34V |
1000-1200MA |
±5% |
88% |
0.9 |
L145*W42*H29 |
27-42V |
700-1150MA |
88% |
||||||
40-52V |
600-750MA |
88% |
||||||
XZ-CG60B |
60W series |
100-277V |
27-42V |
1200-1500MA |
±5% |
89% |
0.9 |
L158*W53*H30 |
35-45V |
1000-1300MA |
89% |
||||||
40-52V |
900-1100MA |
89% |
Why Choosing Xiezhen LED Power Supply |
PROFESSION |
30 R&D staff with more than 5-year experience in LED driver development |
More than 20 production lines making LED drivers since 2009 |
STRENGTH |
All products are made with strict ISO system, 100% Burn-in tested |
Fast Customized LED Driver development |
QUALITY |
Product 100% burn-in tested, Qualified rated>99.9% |
Certificated by CE PSE UL TUV CQC CB SAA |
Service |
Inquiry Replied within 24 hours |
Product Delivered in 3~15 days |
10 working days for a new customized LED driver |
