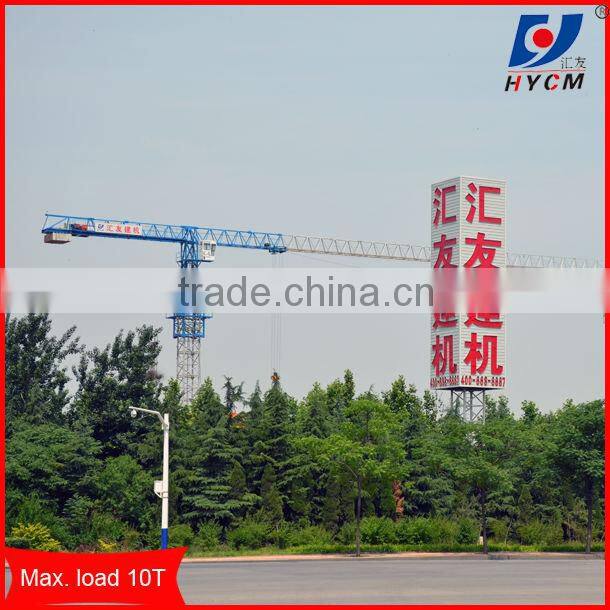

Help CenterMax. 10T, 60m Jib Flat-head Crane Tower With Detailed Specification
Related Products
-
QTZ25(PT7030/PT7427) 18T, Flat-Top Crane Towers for High ConstructionUS$ 200,000 - 217,200MOQ: 1 Set -
QTZ250(PT7427) 18t Flat Project CraneUS$ 185,500 - 194,300MOQ: 1 Set
-
50m, With Competitive Price Hammer Head Tower CraneUS$ 41,000 - 42,500MOQ: 1 Set
-
New QTP5020 8t Topless Tower CraneNegotiableMOQ: 1 Set
-
48m, QTZ40(PT4810) Flat-top Tower Crane, Construction Building CraneUS$ 33,500 - 35,000MOQ: 1 Set
Specifications
1.tower cranes2.QTZ125(PT6016) Crane Tower
3.Maximum Load of 10t
4.tip load:1.6t
5. Range:3-60m
We value our customers, We value our customers’ customers
HYCM Focus on superior products(tower crane) and perfect service
1.New design Topless Tower Crane
2.Stationary/Fixed or Mobile Tower Crane
3. Internal And External Climbing available
4. Mast section of angel steel block structure
5.Famous Brand Mechanism System,Schneider Electronic Control Box, Jiangte And Jiuhe Motor
Specification:
Rated Lifting Moment(KN.m) |
1250 |
Rated Loading Capacity(t) |
10 |
Max. Lifting Load(t) |
10 |
Tip Load(t) |
1.6 |
Max. Lifting Height(m) |
200 |
Span(m) |
60 |
Free standing height(m) |
50/60m |
Rope length(m) |
500 |
Working range(m) |
3-60 |
Slewing speed(r/min) |
0.6 |
Power supply |
380V/50Hz |
Power Capacity(kw) |
59.5 |
Electric switch box |
Schneider |
Hoisting speed(m/min) |
(a=2)105/55/33 (a=4)53/27 |
Mast section dimensions(m) |
1.833x1.833x2.5 (block structure)/2x2x3(split structure) |
Main materials(mm) |
L125X12 (two angle steel with rib, Q345B)/L200X20(angle steel) |
Now we are developing the new market with competitive price and long warranty
Professional tower crane manufacturer in Supplying/Offering Brand New Self-erecting Tower Crane with new HYCM Brand. Export To More Than 20 Countries With CE/ISO Certificates.
Two manufacture factories and 5 produce line for topkit tower crane, topless tower crane, luffing tower crane, construction hoists and aerial suspended platform.
----Provide timely delivery, standby engineers are ready to solve any of your problem
----Provide ample spare parts and training of operation and maintenances
----Engineers have more than 10 years' experience in tower cranes and ready to slove all your problems.
----Online contact or telephone 24 hours for you!
Why Choose US?-“6S”
1. Sincere
A warm welcome for every customer, Build genuine relationships from friends all over the world.
Think from our customers' perspective and fulfill their needs with our best effort.
2. Smart
Collaborate with others to solve your entire problem.
Our goal is to provide you with a personalized service and complete solution.
3.Specialized
Strict raw material control, only the best will pass the test.
Strict quality control, making flawless finished products.
4. Speedy
Professional sales team, guarantee reply with-in 12 hours
Speedy dispatch with minimal delays
5. Study
Study traditional Chinese values. Educating to be better person first, making better products after that.
Educate ourselves with professional for better service.
6. Support
We have skilled expert providing all technical support.
Our front line workers are united and skilled.
Inquires QA:
My dear friends, If you need any tower cranes, please tell us the below basic parameters:
1. Building height or tower crane working height.
2. Max load capacity and tip load capacity.
3. Span or jib length
4. Other Special requirements
Welcome to contact us! Believe will be your best choice!
Emma Xu
Jinan Huiyou Construction Machinery Co., Ltd (HYCM-CRANE)
Mobile: 86-18254159408
SKYPE: xiaopiao119
QQ: 738820895
