SC200/200 Double Cages Construction Hoist Elevator
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
-
1000kg, High Efficiency, Varies Model of New Construction Lift
-
OFFING 4000KG,construction Lifting Equipment Hoisting,electric Construction Hoist
-
2015 HYCM SC200 2000kg Single Cage Building Construction Hoist
-
SC200/200 Double Cages Construction Material Hoist,construction Lifting Equipment Hoisting
-
SC100 Single Cage Construction Passenger Elevator Construction Lift
-
Efficient Type, 4000KG, SC200/200 Double Cages Building Construction Hoist
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Huiyou | Model Number | SC200/200 | |
| Rated Loading Capacity(kg) | 2*2000kg | Hoisting Speed | 34.4 m/min, 36m/min | |
| Max Lifting Height | 200m, 200m | Dimension(L*W*H) | 3*1.3*2.3 m | |
| Loder Weight | 2*2000kg | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

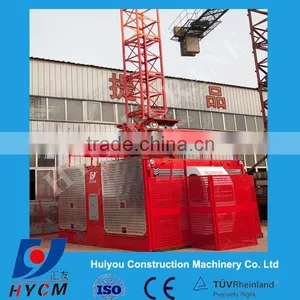

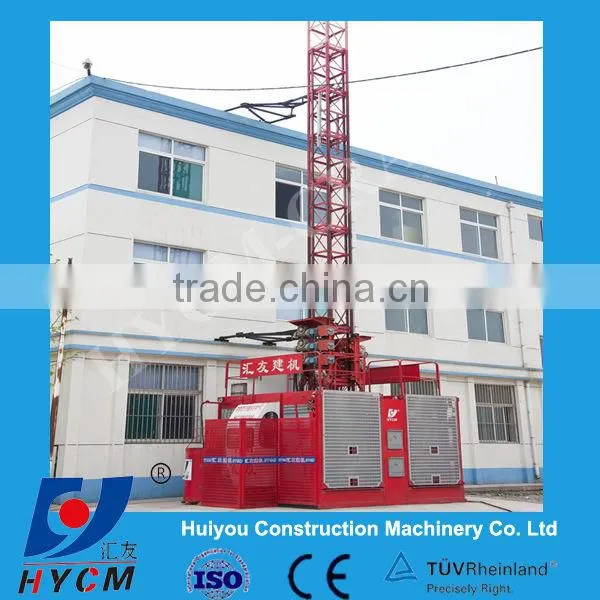

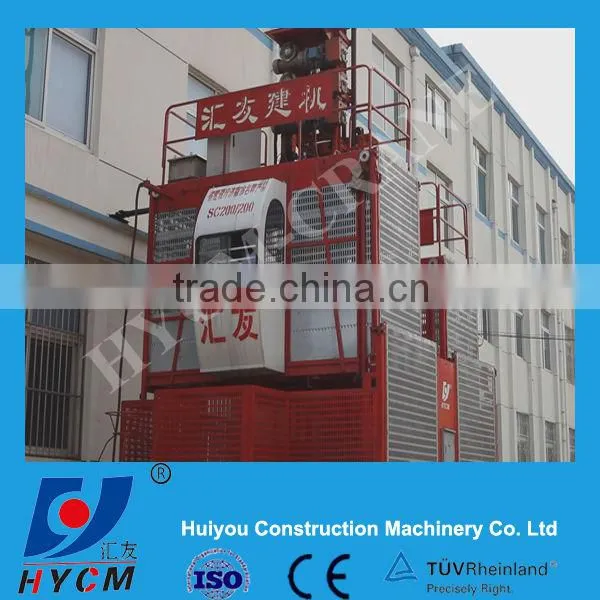

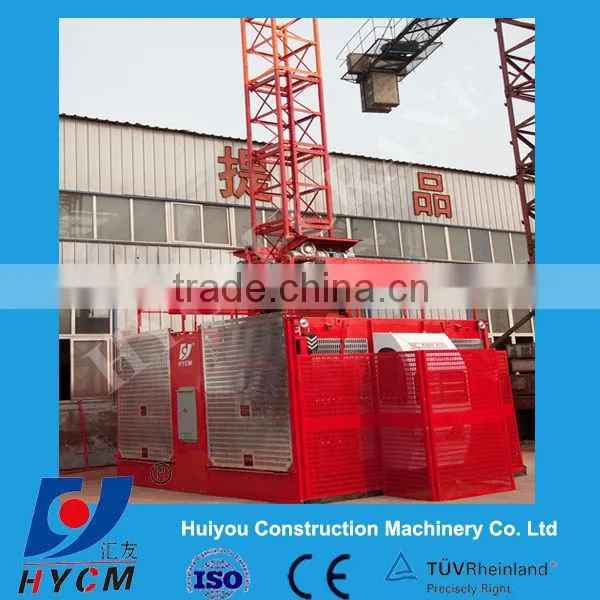

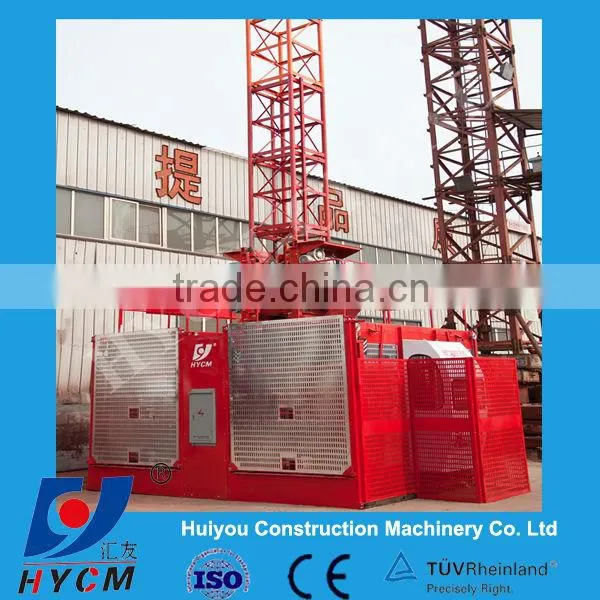

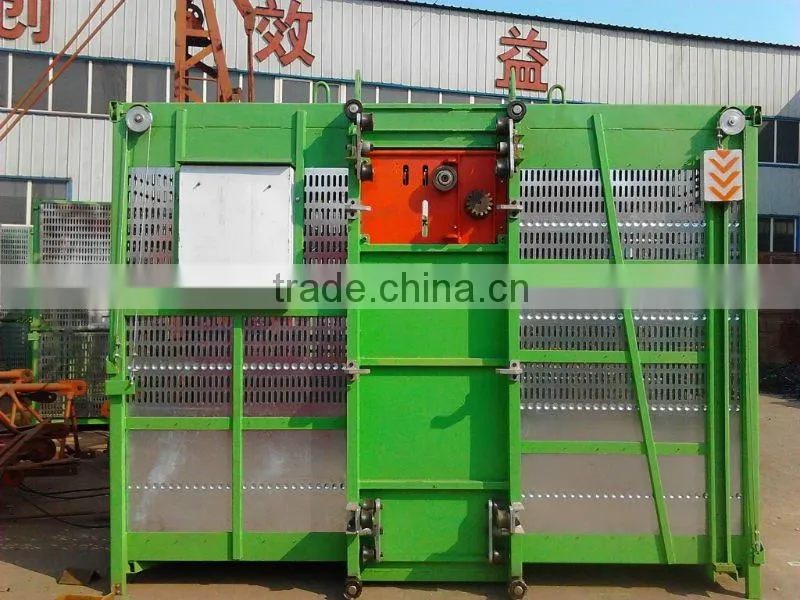

SC200/200 Double cages Construction Hoist Elevator
Construction Elevator that we offer are manufactured in compliance with international quality of standard and norms. These elevators used in construction sites to move the raw material from one place to another in a convenient manner. We use best quality raw material and innovative machines in the production process which enable us to offer unmatched quality of products to our clients. Please contact us for more details.
| Construction Hoists Technical Datas | |||||
| Item | product models | ||||
| SC100 | SC100/100 | SC200 | SC200/200 Standard Type | SC200/200 Efficient Type | |
| Rated load (kg) | 1000 | 2*1000 | 2000 | 2*2000 | 2*2000 |
| Rated passengers (Number) | 10 | 2*10 | 20 | 2*20 | 2*20 |
| Rated lifting speed (m/min) | 34.4 | 30 | |||

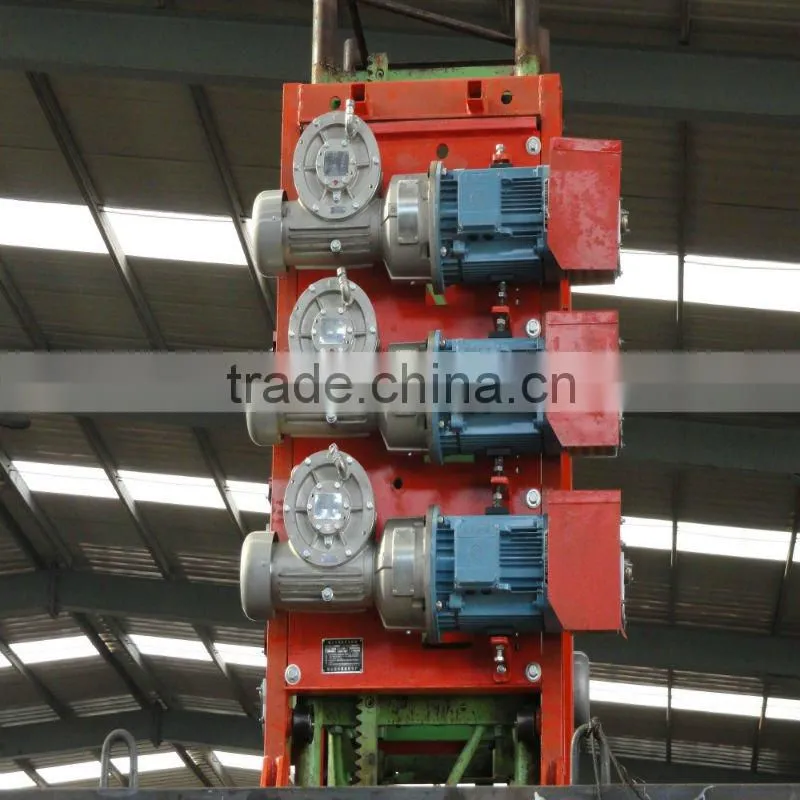

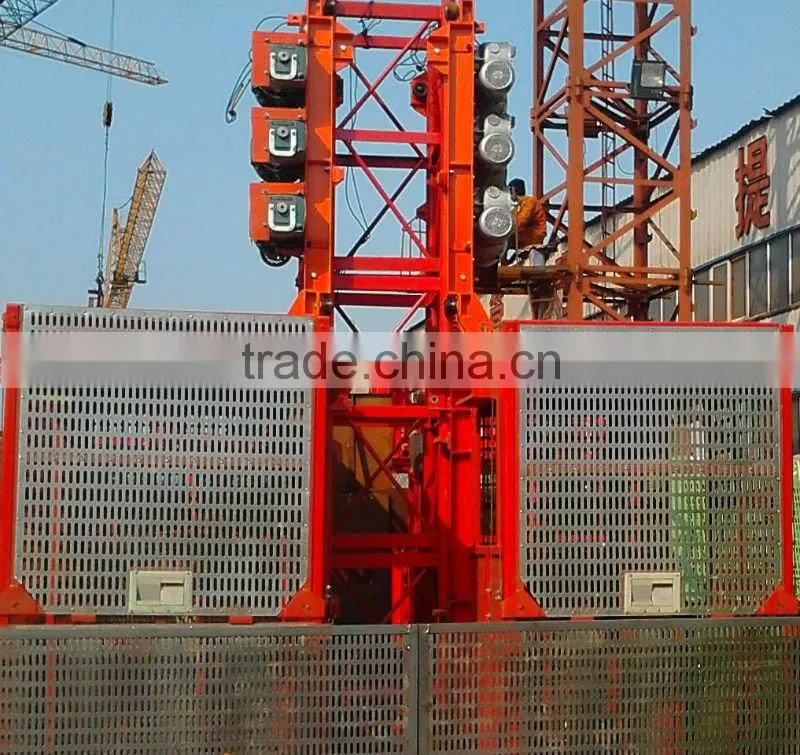

| Motor power (kw) | 2*11 | 2*2*11 | 3*11 | 2*3*11 | 2*2*11 |
| Motor braking torque(N.M) | 120 | ||||
| Overrun protection device braking speed (m/min) | 51-56 | ||||
| Overrun protection device rated braking load (KN) | 30 | 40 | |||
| Max.lifting height (m) | 150-200 | ||||

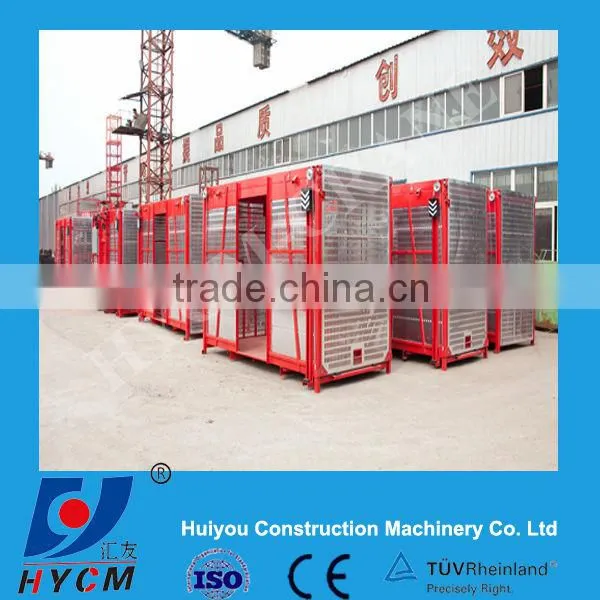

| Cage size (L*W*H) (m) | 3.0*1.3*2.3 | ||||

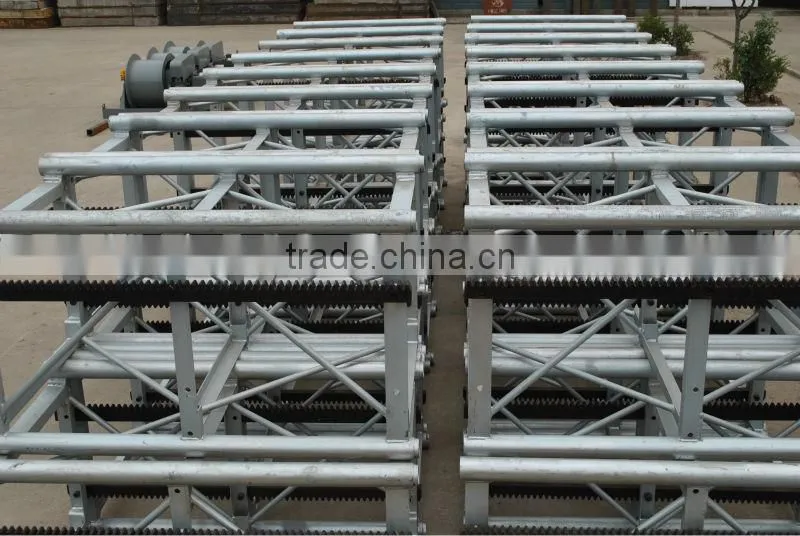

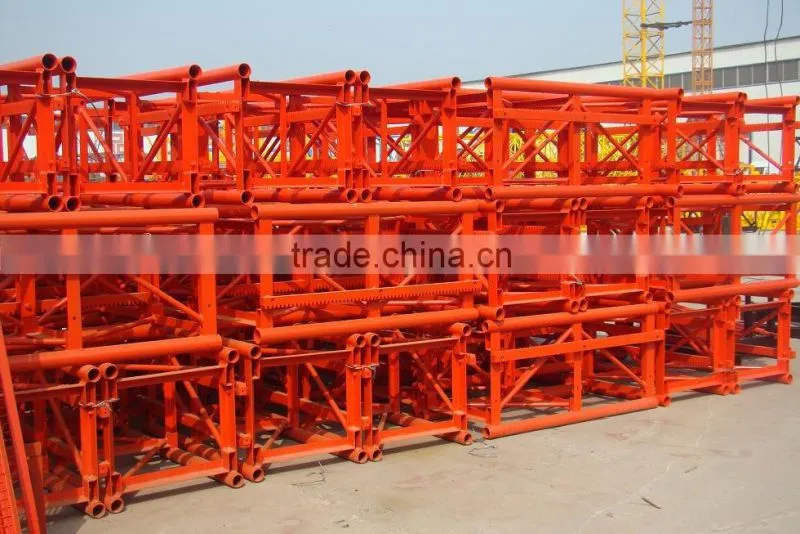

| Mast section size (L*W*H) (m) | 0.65*0.65*1.508 (0.80*0.80*1.508) | ||||
| Mast weight (kg) | 158/172 | ||||
| Rated erection load (kg) | 200 | ||||

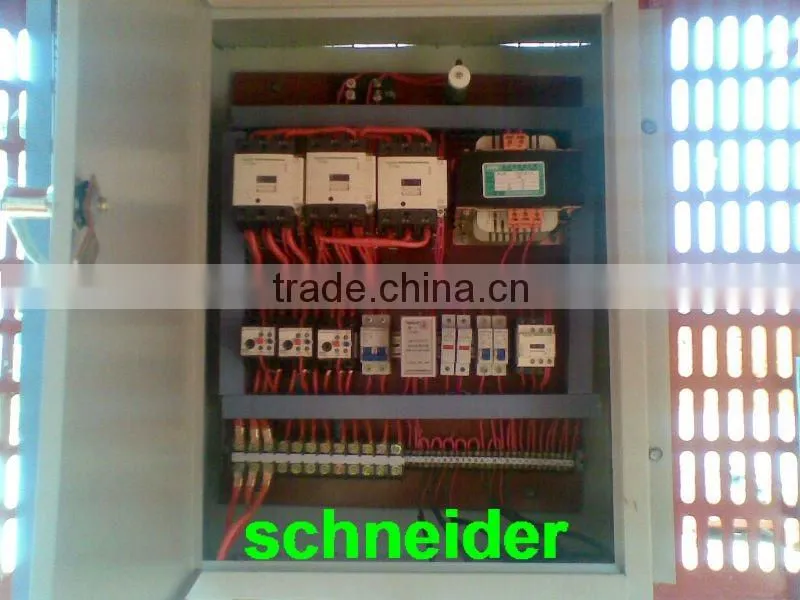

| Electronic box | Schneider | ||||
