Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HYCM | Model Number | SC100 | |
| Rated Loading Capacity(kg) | 1t | Hoisting Speed | 34.4m/min | |
| Max Lifting Height | 150-200m | Dimension(L*W*H) | 3*1.3*2.3m | |
| Loder Weight | 1000kg | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

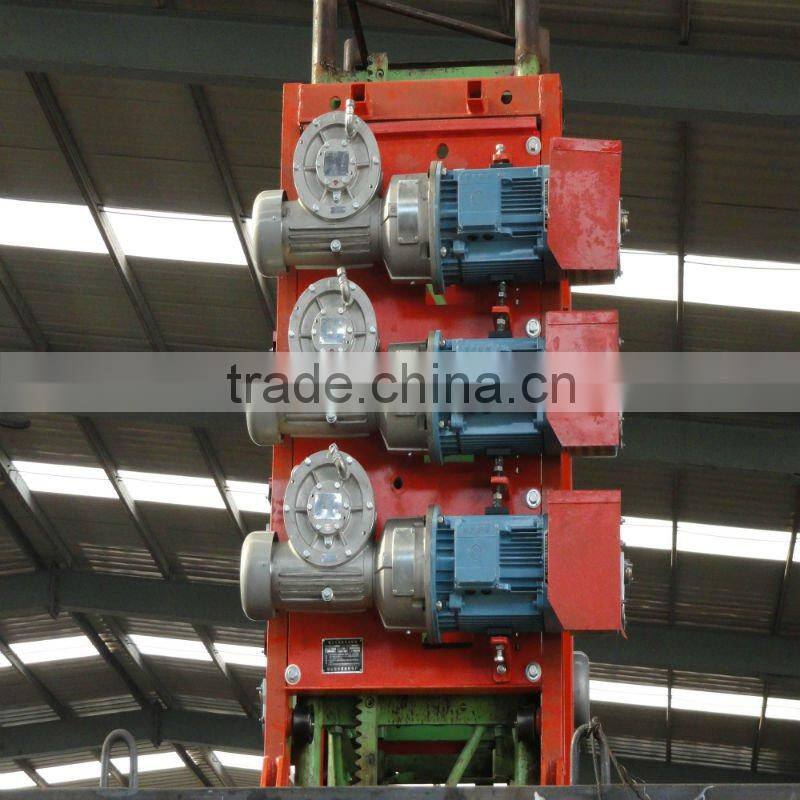

SC100 single cage construction passenger elevator construction lift
Construction hoist (elevators external variable and simply named lifter) is widely used in vertical lift transport personnel and materials.
In industrial or civil construction, large bridges, Shaft, are indispensable to good transport facilities, as apermanent or semi-permanent can be used for warehouses, towers and other different places.
Specifications:
| Model | SC100 | |
| Rated load | 1000kg | |
| Rated passengers | 10 | |
| Rated lifting speed | 34.4m/min | |
| Free height | 50m | |
| Max. height | 150-200m | |
| Mast section size | 0.65*0.65*1.508 m | |
| Cage size | 3*1.3*2.3m | |
| Motor | Model | YZZ132M-4 |
| power (kw) | 2*11 | |
| Reducer | center distance(mm) | 125 |
| Transmission ratio | 8 | |

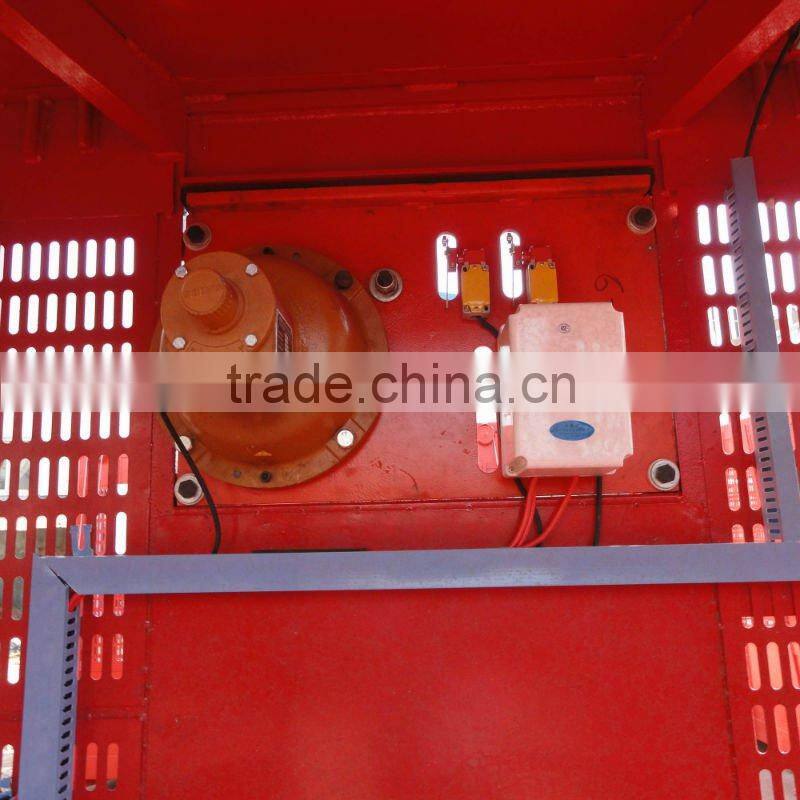

| Safety device | Modality | Move step by step |
| Speed of movment | 51.6m/min | |
| Braking torque | ≥3000 | |
