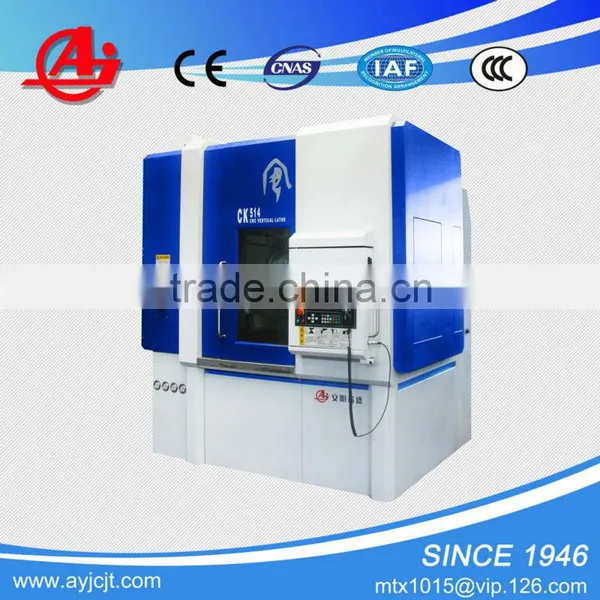

CNC Veritcal lathe CK614 Swing 630mm
USD $15,000 - $80,000
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- tianjin china
You May Like
Product Details
Condition: | New | Type: | Vertical | CNC or Not: | CNC |
Place of Origin: | Henan, China | Brand Name: | anyang xinsheng | Model Number: | CK514 |
Product Description
Item | Unit | CK514 | CK516 | CK518 |
Swing over bed | MM | 520 | 800 | 1000 |
Max.turning diameter | MM | 400 | 600 | 800 |
Max.turning height | MM | 250 | 600 | 800 |
Speed range | r/min | 50-2000 | 45-1000 | 50-2000 |
Chuck diameter | mm | 400 | 500 | 630 |
Spindle nose | A2-11 | A2-11 | A2-15 | |
Spindle bearing diameter(front) | mm | 160 | 200 | |
Stroke of X-axis | mm | 50-500 | 50-800 | |
Stroke of Z-axis | mm | 450 | 650 | 850 |
Rapid speed of X-axis | m/min | 15 | 12 | 10 |
Rapid speed of Z-axis | m/min | 15 | 12 | 10 |
Workpiece accuracy | mm | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Accuracy of positioning X/Z-axis | mm | 0.018/0.02 | 0.018/0.02 | 0.018/0.02 |
repeat location accuracy X/Z-axis | mm | 0.006/0.01 | 0.006/0.01 | 0.006/0.01 |
Type of tool post | Horizontal 8-position | Vertical 6-position | Vertical 6-position | |
Shank external cutting tool | mm | 32×32 | 32×32 | |
Boring tool | mm | 32,40,50 | 32,40,50 | 32,40,50 |
Main motor | kw | 28.8 | 15 | 30/37 |
Servo motor of X-axis | kw | 2.5 | 4 | |
Servo motor of Z-axis | kw | 2.5 | 4 | |
Motor of cooling pump | kw | 1.1 | 1.1 | 1.1 |
Overall diamensions L | mm | 3340 | 2642 | |
Overall diamensions W | mm | 2630 | 3478 | |
Overall diamensions H | mm | 3060 | 3638 | |
Net weight | kg | 12000 | 15000 | |
Acceptance | 1.JB/T9895.A-1999 2.JB/T9895.A-1999 | 1.JB/T9895.A-1999 2.JB/T9895.A-1999 | 1.JB/T9895.A-1999 2.JB/T9895.A-1999 |
