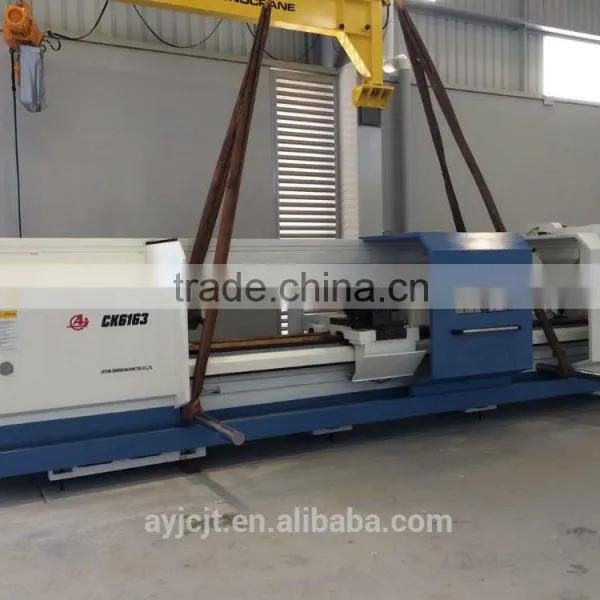

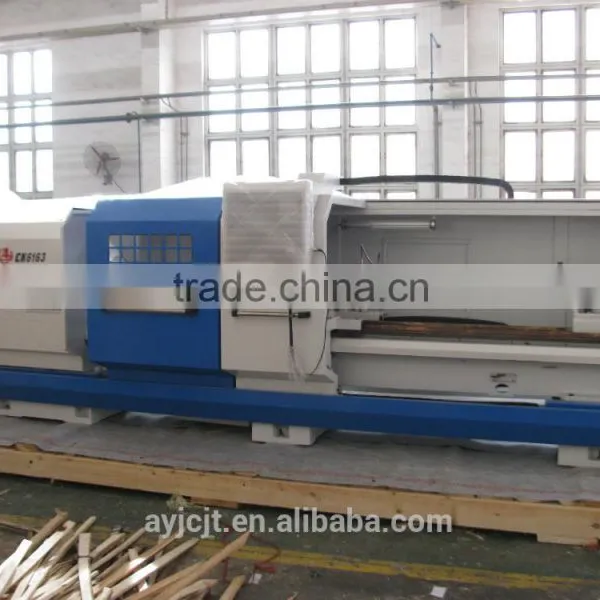

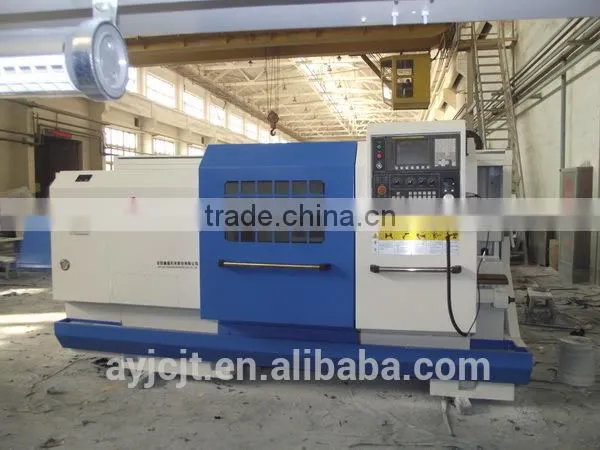

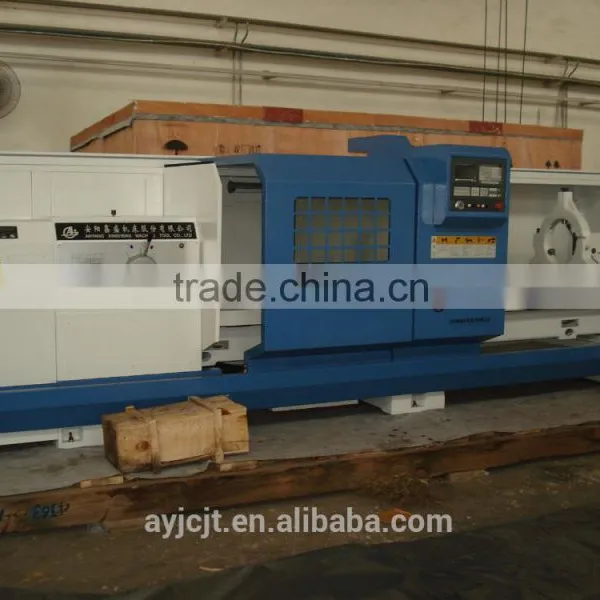

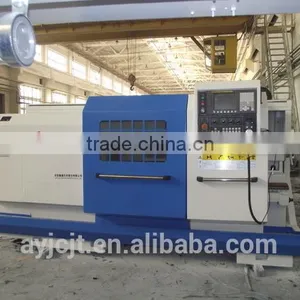

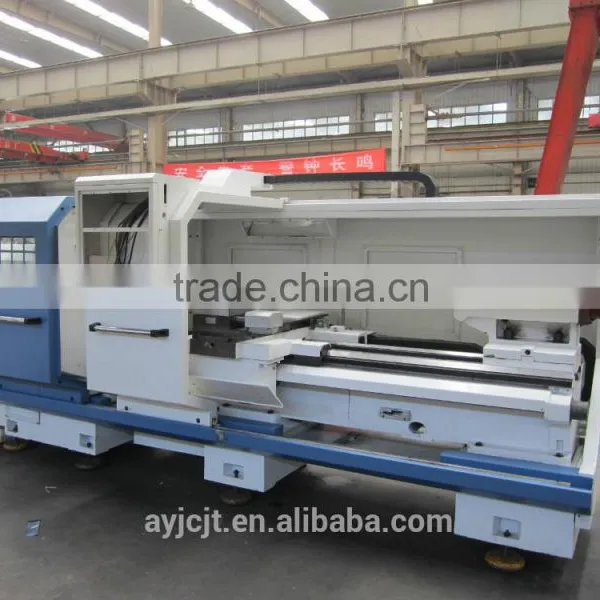

Help CenterCNC Lathe Ck6163 630MM
US$ 35,000 - 68,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
CNC
Max. Swing Diameter
630-940mm
Place of Origin
Henan, China
Brand Name
anyang xinsheng
Model Number
CK6163, CK6180,CK6194
Voltage
optional
Power(W)
11kw
Certification
ISO9001, ISO1400
After-sales Service Provided
Engineers available to service machinery overseas

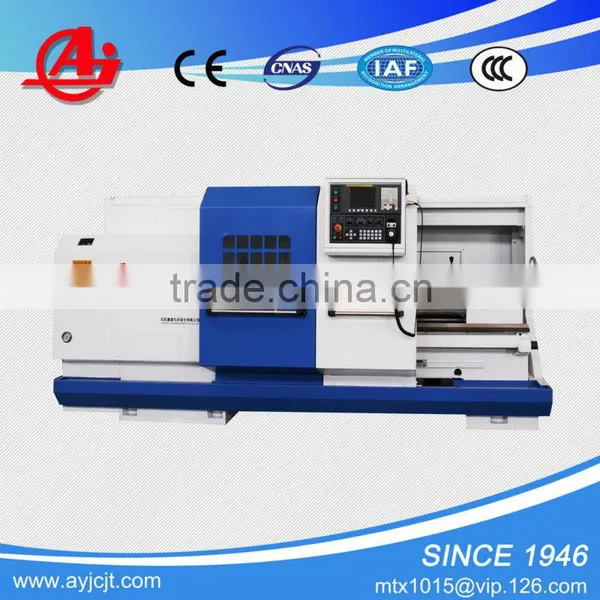

CK6163/80/94series are parallel CNC lathes of popular edition.They are suitable ofr turning of complicated shaft,sleeve,and disk type work-pieces such as turning of internal and external cylindrical,conical,arc surfaces and various threads.And are especially fit for turning of diversified work-pieces on small and medium batches.They are of high versatility,high efficiency,low inferiority and good conformability.Also,being excellent mediumtype machining equipment,they are of simple programming,easy operation and with full functions.
- The spindle can accomplish 4-phase infinite frequency variable speed changing.Being of wide phase.big lap,full automatic,the spindle speed can accommodate wide machining range.
- The spindle can accomplish large torque output at low speed range.
- The movable safe-guard design makes the machines easy to operate and easy to load/unload work-pieces.
- Equipped with load reducing device makes the ail-stock easy to move.
- Taper turning unlimited angle and length.
- Cutting of various cylindrical and taper threads,and continuous transition threads.
| Item | Unit | CK6163 CKP6163 | CK6180 CKP6180 | CK6194 CKP6194 |
| Swing over bed | mm | 630 | 800 | 940 |
| Swing over carriage | mm | 340 | 510 | 650 |
| Maximum length of workpiece | mm | 750/1000/1500/2000/3000/4000/5000 | 750/1000/1500/2000/3000/4000/5000 | 750/1000/1500/2000/3000/4000/5000 |
| Maximum turning length | mm | 600/850/1350/1850/2850/3850/4850 | 600/850/1350/1850/2850/3850/4850 | 600/850/1350/1850/2850/3850/4850 |
| Span of guideway | mm | 550 | 550 | 550 |
| Spindle nose | C11 | C11 | C11 | |
| Chuck(Manual) | mm | 325(standard configuration) | 325(standard configuration) | 325(standard configuration) |
| Chuck(Hydraulic) | mm | K51(320,400,500)V212(304)V215( 38 )N212(304) | K51(320,400,500)V212(304)V215( 38 )N212(304) | K51(320,400,500)V212(304)V215( 38 )N212(304) |
| Chuck(Pneumatic) | mm | — | — | — |
| Spindle bore | mm | 100 | 100 | 100 |
| Taper hole of spindle | 1:20/120 | 1:20/120 | 1:20/120 | |
| Spindle speed and range(CK series) | CK series:auto 4 gear steps,stepless speed change in the step.12.5-1000r/min | CK series:auto 4 gear steps,stepless speed change in the step.10-800r/min | CK series:auto 4 gear steps,stepless speed change in the step.10-800r/min | |
| Spindle speed and range(CKJ series) | CKJ series:18 gear speed,7.5-1000r/min | CKJ series:18 gear speed, 6-800r/min | CKJ series:18 gear speed, 6-800r/min | |
| Spindle speed and range(CKA series) | CKA series:auto 6 gear steps,manual 3 gear speed. 9-1000r/min | CKA series:auto 6 gear steps,manual 3 gear speed. 7-800r/min | CKA series:auto 6 gear steps,manual 3 gear speed. 7-800r/min | |
| Center height from bed | mm | 315 | 400 | 470 |
| Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 |
| Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | 3000/6000 | 3000/6000 |
| Max.travel of x-axis | mm | 390 | 475 | 475 |
| Tool-post working position | Vertical 4-position electrical turre | Vertical 4-position electrical turre | Vertical 4-position electrical turre | |
| Indexing time | s | 2.4(V4) | 2.4(V4) | 2.4(V4) |
| Indexing repeatility | "mm | 0.008 | 0.008 | 0.008 |
| Section of tool shank | mm | 32*32 | 32*32 | 32*32 |
| Diameter of tailstock quill | mm | 100 | 100 | 100 |
| Travel of tailstock quill | mm | 250(standard) | 250(standard) | 250(standard) |
| Taper hole of tailstock quill | Morse 5 | Morse 5 | Morse 5 | |
| Workpiece accuracy | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
| Surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
| Acceptance conditions | JB/T8324.1-96 JB/T8324.2-96 | JB/T8324.1-96 JB/T8324.2-96 | JB/T8324.1-96 JB/T8324.2-96 | |
| Main motor power | kw | 11 | 11 | 11 |
