bopu-ap45 asphalt paver is a ideal equipment for asphalt roadbopu-ap45 asphalt paver is used for paving road, urban road, and plaza, square and so on, ideal equipment for construction companies.
The structure of this machine is compact, easily operated. It use advanced double sets of hydraulic stretching screed and auto level sensing device, so paving density and smoothness is high. The easily wearing parts use international advanced antifriction material, the reliability of machine is improved.
Model: bopu-ap45
Type: tyre
Performance parameter
Basic paving width 2500mm
Maximum width of paving 4500mm
Maximum thickness of paving 250mm
Minimum thickness of paving 10mm
Traveling speed 2.29~16.74km/h
Paving speed 3.01~8.97m/min
Planeness 3mm/3m
Maximum theoretic productivity 220t/h
Hopper capacity 10t
Mass 11000kg
Maximum climbing capacity 20%

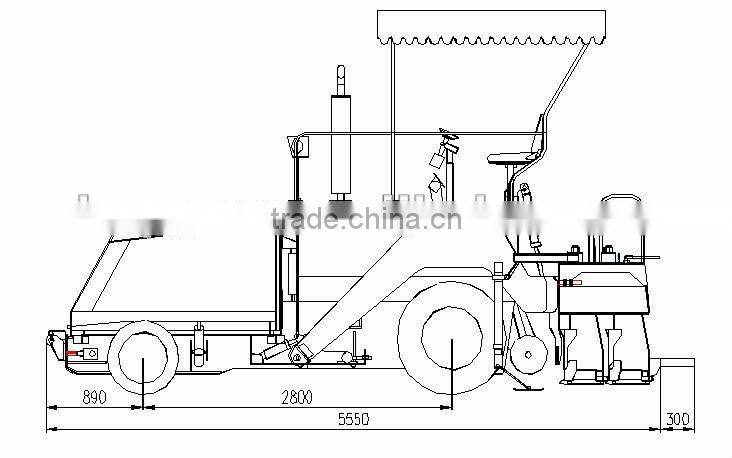

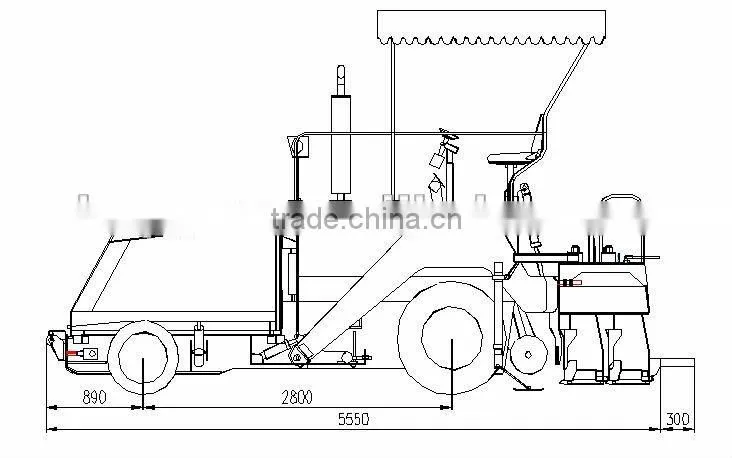

Overall size
Length 5850mm (transportation 5550mm)
Width 3000mm (transportation 2494mm)
Height 2450mm
Engine
Model 4JR3AG7
Type water cooling with 4 cylinders
Power 55Kw/2000r/min
Diesel oil tank capacity 143L
Drive system
The machine is driven by mechanical and hydraulic, flywheel is connected to transfer case, the front of engine drives duplex pump, supplying power for mechanism below:
Traveling device
Conveyor and auger spreading device
Vibrating
Up and down of screed, turnover of hopper and action of cylinders
Traveling device
It is made up of transfer case, gear box with two grades, differential mechanism, semi-axle and chain drive. Traveling is driven by driven chain wheel.
Load mode
6 tyres, the front tyres are solid, the rear tyres are pneumatic
Steering
Steering mechanism use mode of bridge, center of bridge which is able to revolving is connected to center of frame, redirectors are fixed on the two ends of the axle, redirectors are revolved by hydraulic cylinder, and so solid tyre can be revolved corresponding angle.
Hopper
Hopper capacity is about 10 tons, hopper is turned by hydraulic cylinder to discharge material.
Roller
It is used to push the rear tyre of camion.
Conveyor
It is independently driven, clutch for conveyor is controlled by hydraulic cylinder, power is transferred by chain-wheel to drive scraper.
Electric system
It has 2 batteries, system voltage is 24V.
Cab
It used framework of steel tubes which are put together and equipped canopy.
Automatic level device
It is equipped two longitudinal Automatic level device, used for longitudinal automatic adjustment.
Working device
Double sets of hydraulic stretching iron plate
- Screed
Basic width ……………………………2500mm
Arch adjustment…………………………0~4%
2. Vibration Frequency…………………………50HZ
