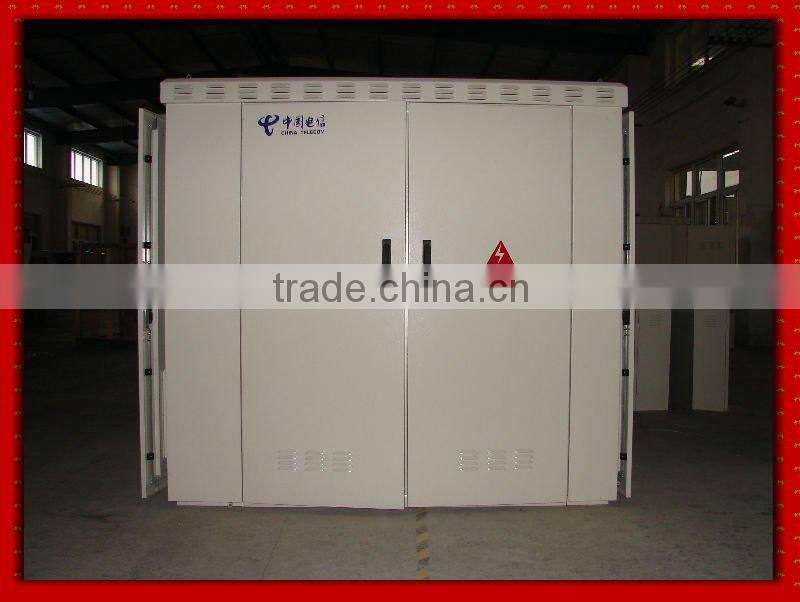

W-TEL Telecom Power Equipment Outdoor Cabinet

Specifications

equipment outdoor cabinet :

heat exchanger outdoor cabinet

 air conditioner outdoor cabinet

fan cabinet

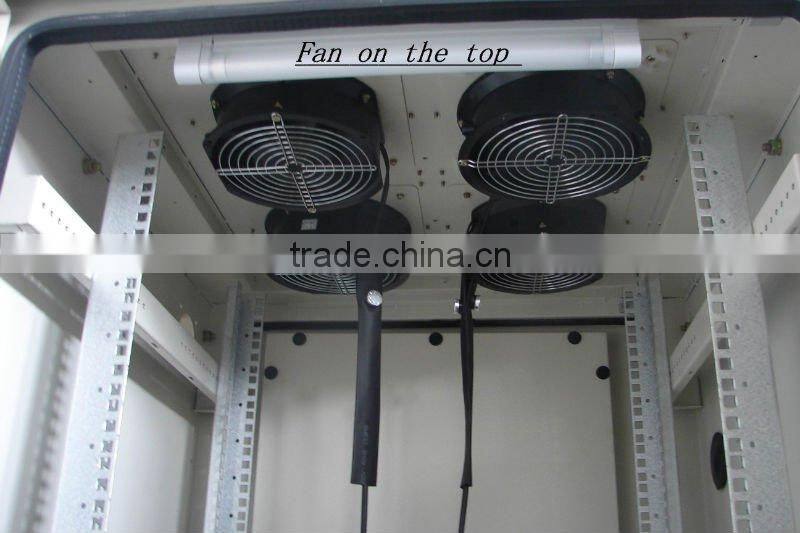

W-TEL fan cooling system telecom power equipment outdoor cabinet

Maily used in the field of traffic, CATV, electric power etc.Can be used under different conditions: gale, rain, snow, hail, frost, smog and solar radiate etc.The main part of the cabinet is made of magnesium and aluminum alloy .

1>Adapts to frame design of "Sandwich" .Covered with magnesium and good capability of

    preservation

2>Introduces the four-point latch-up structure to strengthen safety of cabinet Thermal insulating

     material enchased in component

3>Can prevent conductive heat like outdoor ultraviolet radiation from infiltrating into the cabinet

     effectively

4>Select professional air conditioner with modulation of constant temperature, humidity and setting

    of heating to ensure cabinet is provided with best operating environment

5>Inside is composed of standard 19-21 inch frame

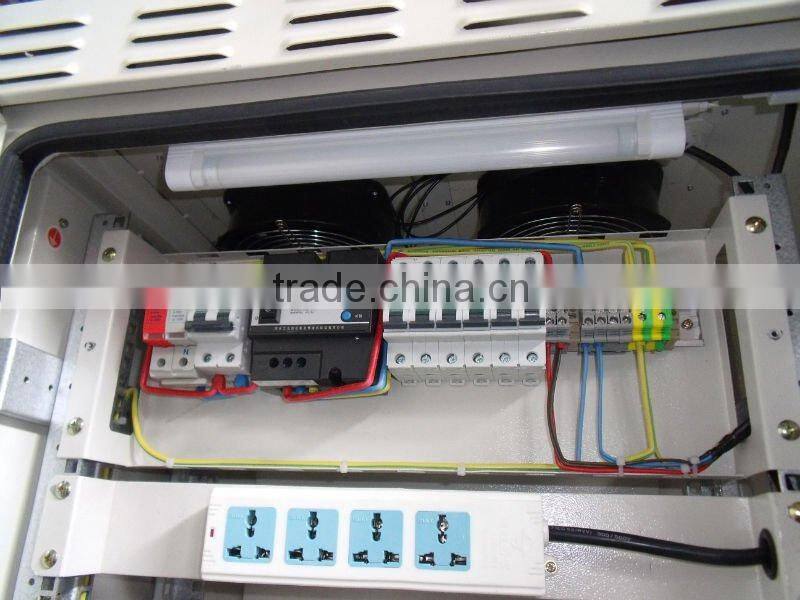

Temperature management, control system, power supply system, entrance guard, environment supervisory system and wiring unit module

Cabinet meets the requirements of IP65 level of protection

Poduct Specifications:

l        Waterproof, dust proof:

Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection,IP 55

l        Temperature and humidity solution:

We adopt different components to control temperature and humidity to ensure the best working condition inside the cabinet.

l        Anti-corruption solution:

The surface of the cabinet , fan and air-condition are made of aluminum alloy, can protect from UV and salt material.

l        Machine protection solution:

The cabinet is designed specifically to protect it from human damage, earthquick and other damages.

l        EMC protection

Dealed with hydrochloric acid, use EMC seal belt , special earthing to avoid and reduce creepage.

Divided into four parts:

equipment zone, wiring zone, cell zone and electric source zone.

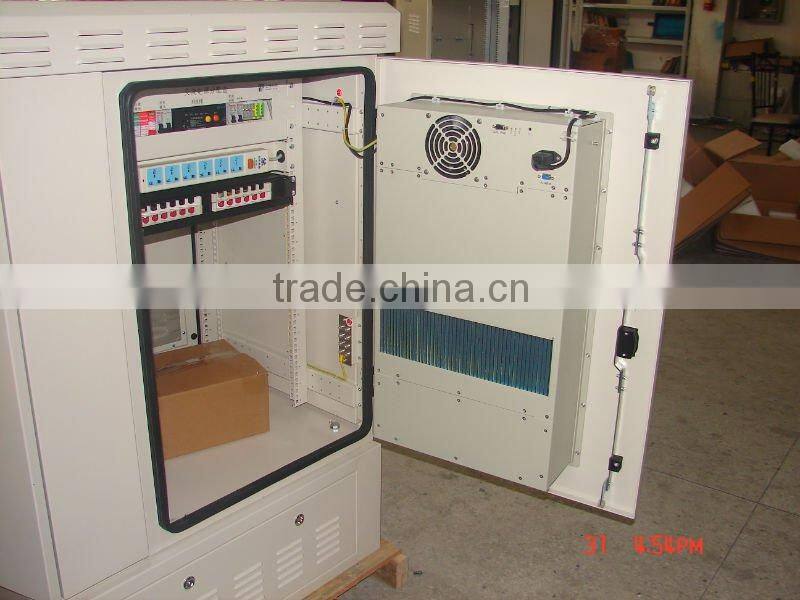

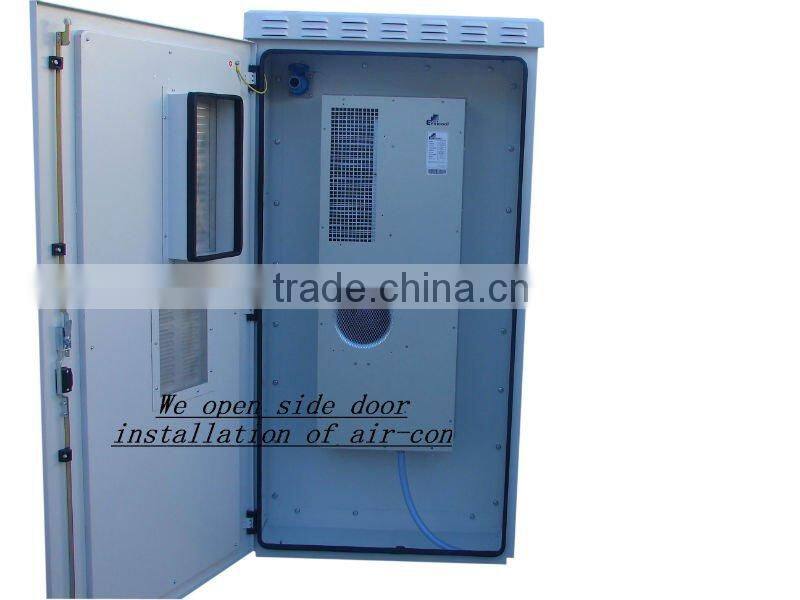

Adopt special imported outdoor industrial air-conditioner.

The perfect earthing system to protect it from thunder.

The cabinet meets the requirements of IP 65 protection level.

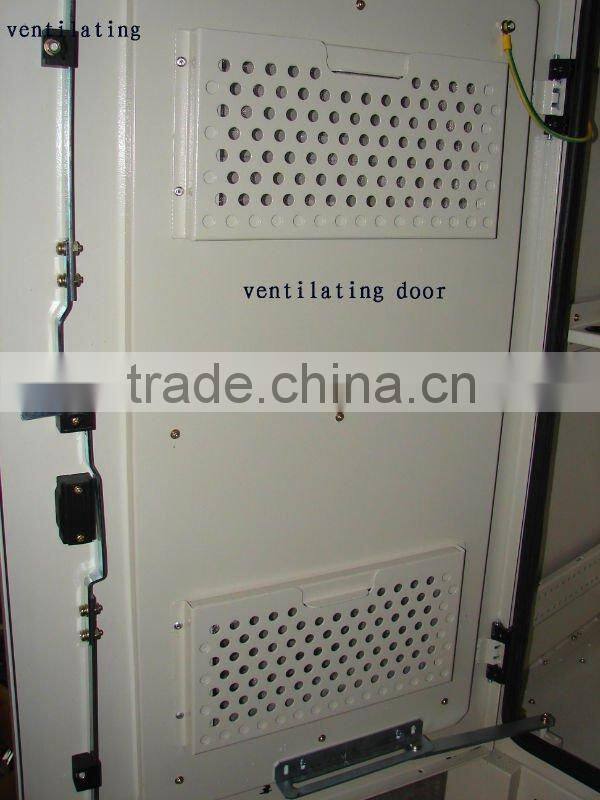

The enshroud dustproof net is installed in the air circulation system to protect the entry of dust and insects.

Special A4 size material box and unique PC panel, easy maintainance and operating.
