Specifications
passive optical splittercomply with Telcordia GR-1209&GR-1221
ISO9001:2000
Excellent quality
Deutsche Telecom

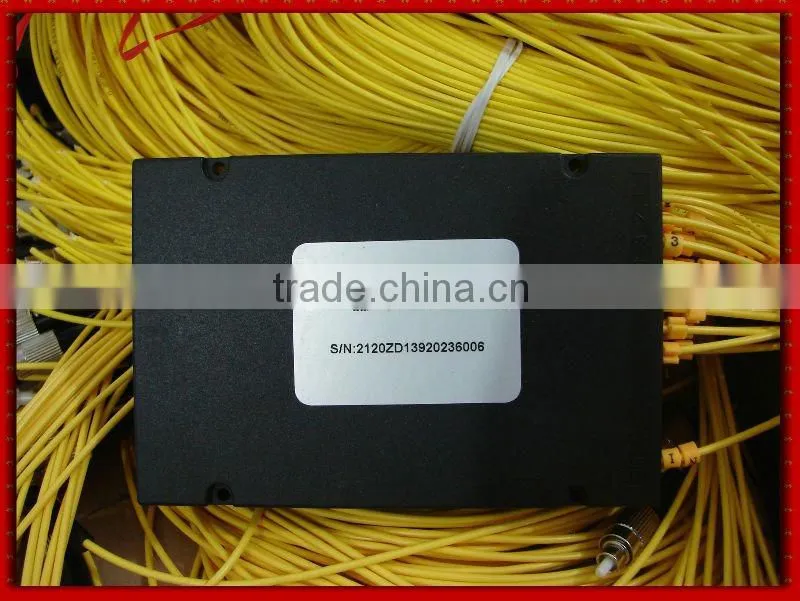

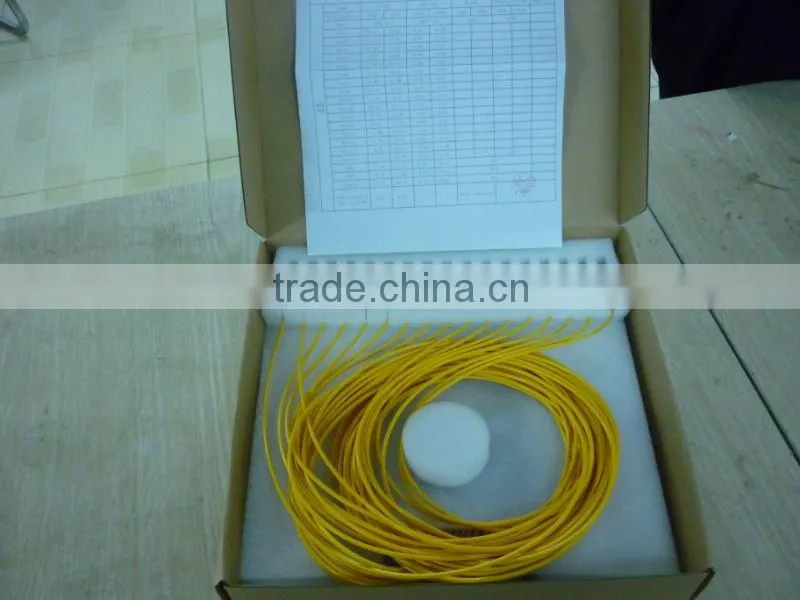

passive optical splitter
The separation and the component of the optical signal are made by a fiber structure, used for the work of the system of communication and television by cable. It has good optical operation, quality and stability and is applicable to use in difficult conditions. In addition, there are several aspects to choose.
1.Tabla of the operation
model |
normal |
broadband |
double |
wavelength |
1310o1550nm |
1310o1550nm |
1310o1550nm |
bandwidth |
±20nm |
±40nm |
±40nm |
loss of accessories |
≤0.10dB |
≤0.15dB |
≤0.15dB |
uniformity |
≤0.6dB |
≤0.6dB |
≤0.6dB |
polarization |
≤0.1dB |
≤0.1dB |
≤0.1dB |
direction |
55dB |
55dB |
55dB |
2.Distribution of the splitter and extra loss:
N |
extra loss (db) |
N |
extra loss (db) |
N |
extra loss (db) |
N |
extra loss (db) |
N |
extra loss (db) |
3 |
0.3 |
4 |
0.4 |
5 |
0.45 |
6 |
0.5 |
7 |
0.55 |
8 |
0.6 |
9 |
0.7 |
10 |
0.8 |
11 |
0.9 |
12 |
1.0 |
16 |
1.2 |
|
|
|
|
|
|
|
|
3.Environmental
conditions | |
high temperature |
85±2ordm; C, 2000 hours |
Warm and Humidity |
75±2ordm; C/90±5%RH, 2000 hours |
low temperature |
-40±5ordm; C, 2000horas |
water immersion |
43±2ordm; C/PH5.5±0.5, 168 hours |
circulation of the temperature |
-40±2ordm; C until 75±2ordm; C, 500 periods |
vibration |
10Hzhasta 2000Hz, amplitude 1.52mm, 3 directions, 4 hours/direction |
impact |
1.8m height, 3 directions, 8 times/direction |
