Specifications
FBT optic fiber 1X64 PLC splitter couplercomply with Telcordia GR-1209&GR-1221
ISO9001:2000
Excellent quality
huawei design
Shanghai Warner Telecom offer you telecom fiber splitter coupler PLC type :
1X64 PLC splitter
1X32PLC splitter
FBT optic fiber 1X64 PLC splitter
comply with Telcordia GR-1209&GR-1221
ISO9001:2000
Excellent quality
Deutsche Telecom
The separation and the component of the optical signal are made by a fiber structure, used for the work of the system of communication and television by cable. It has good optical operation, quality and stability and is applicable to use in difficult conditions. In addition, there are several aspects to choose.
1.Tabla of the operation
model |
normal |
broadband |
double |
wavelength |
1310o1550nm |
1310o1550nm |
1310o1550nm |
bandwidth |
±20nm |
±40nm |
±40nm |
loss of accessories |
≤0.10dB |
≤0.15dB |
≤0.15dB |
uniformity |
≤0.6dB |
≤0.6dB |
≤0.6dB |
polarization |
≤0.1dB |
≤0.1dB |
≤0.1dB |
direction |
55dB |
55dB |
55dB |
2.Distribution of the splitter and extra loss:
N |
extra loss (db) |
N |
extra loss (db) |
N |
extra loss (db) |
N |
extra loss (db) |
N |
extra loss (db) |
3 |
0.3 |
4 |
0.4 |
5 |
0.45 |
6 |
0.5 |
7 |
0.55 |
8 |
0.6 |
9 |
0.7 |
10 |
0.8 |
11 |
0.9 |
12 |
1.0 |
16 |
1.2 |
|
|
|
|
|
|
|
|
3.Environmental
conditions | |
high temperature |
85±2ordm; C, 2000 hours |
Warm and Humidity |
75±2ordm; C/90±5%RH, 2000 hours |
low temperature |
-40±5ordm; C, 2000horas |
water immersion |
43±2ordm; C/PH5.5±0.5, 168 hours |
circulation of the temperature |
-40±2ordm; C until 75±2ordm; C, 500 periods |
vibration |
10Hzhasta 2000Hz, amplitude 1.52mm, 3 directions, 4 hours/direction |
impact |
1.8m height, 3 directions, 8 times/direction |

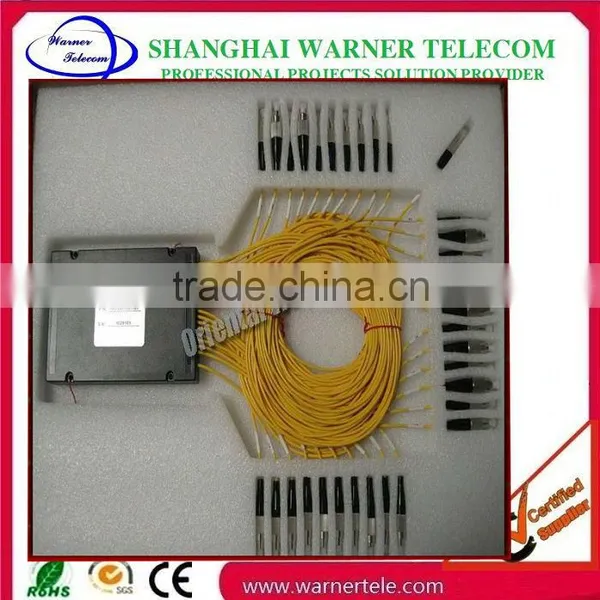

SOFT PACK :

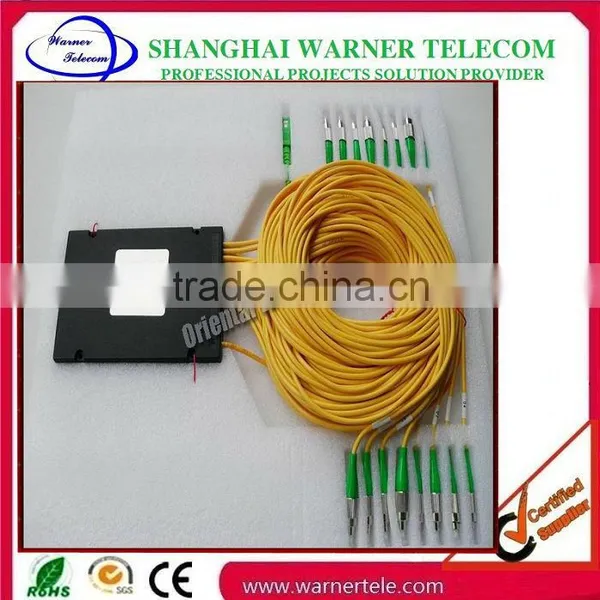

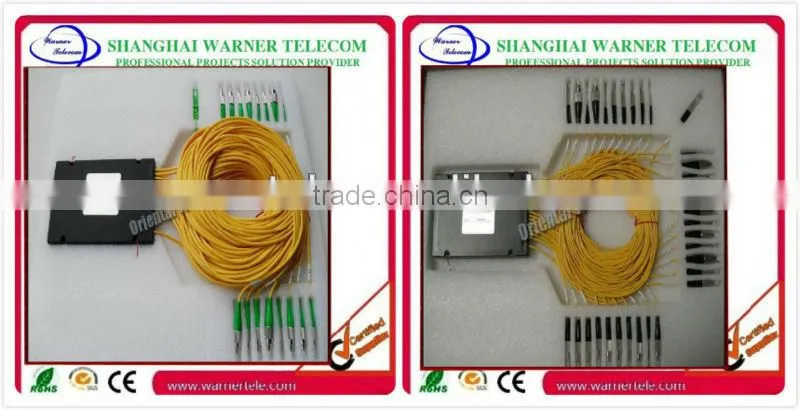

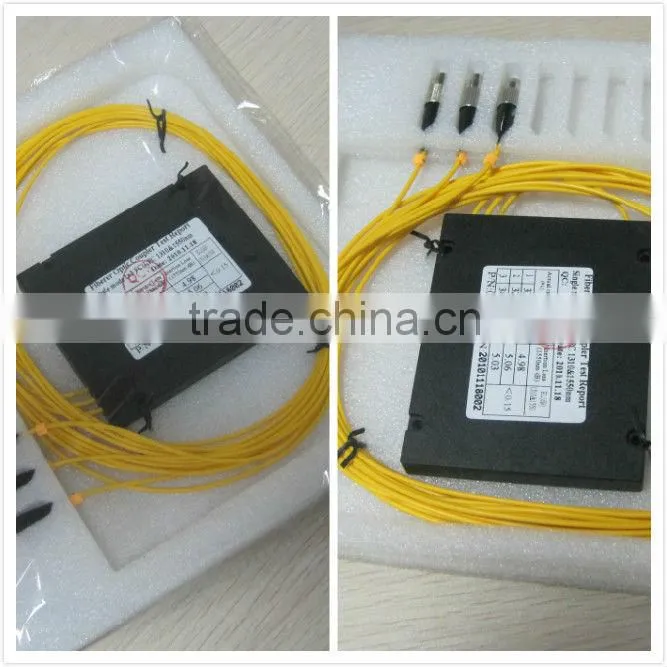

bare splitter :

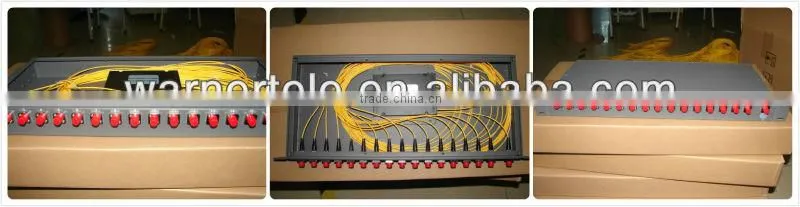

Splitter in ODF tray :

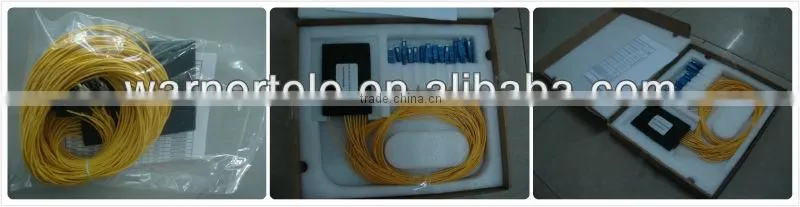

Normal pack :
-----------------------

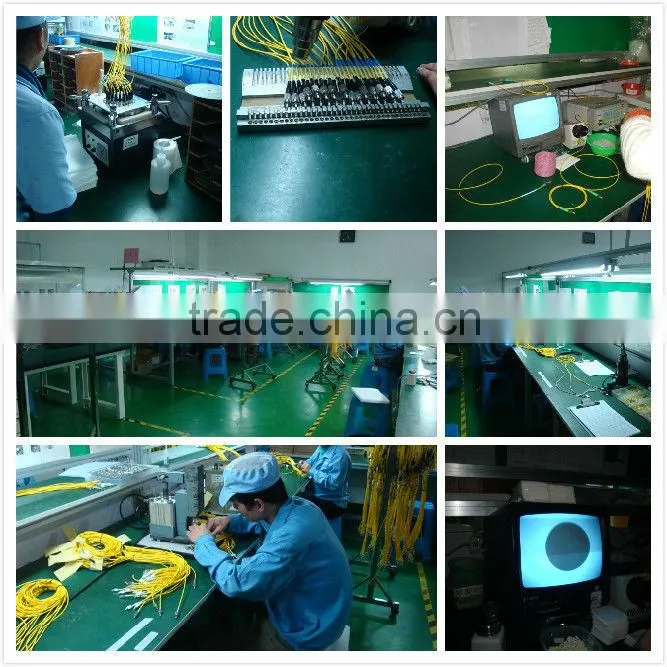

PRODUCTION DISPLAY :

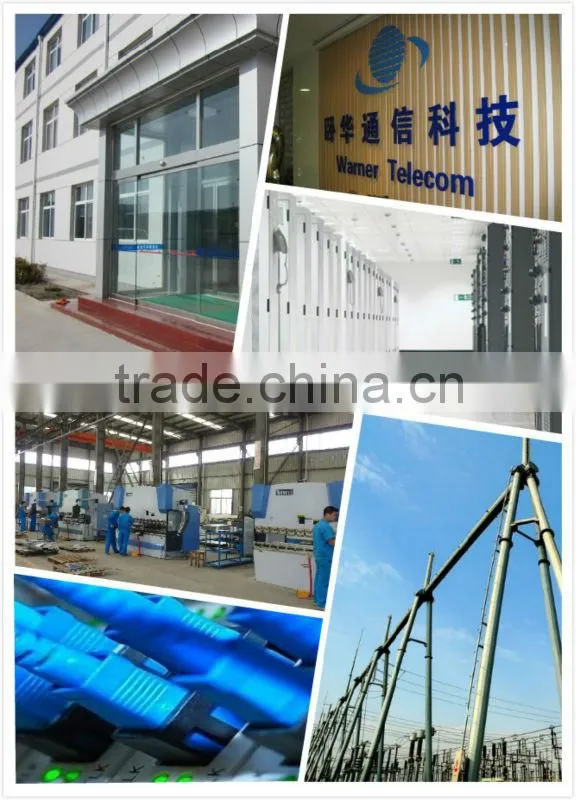

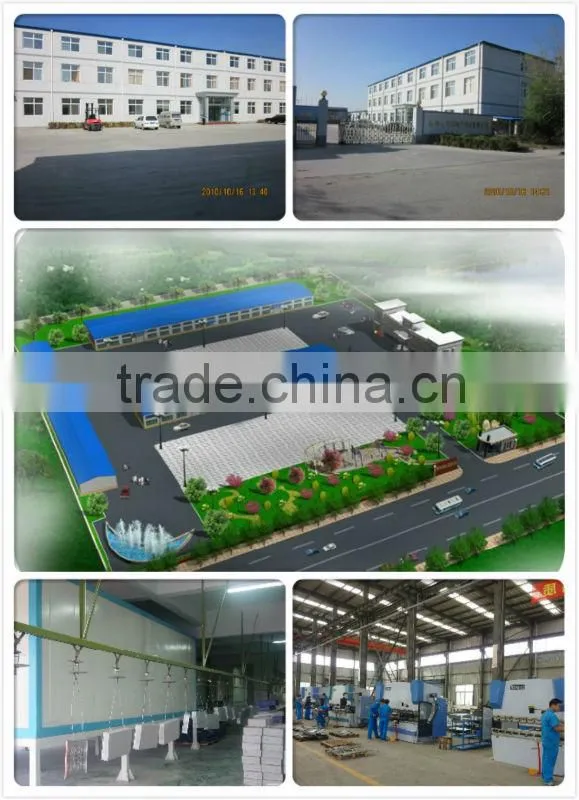

Company overlook :
