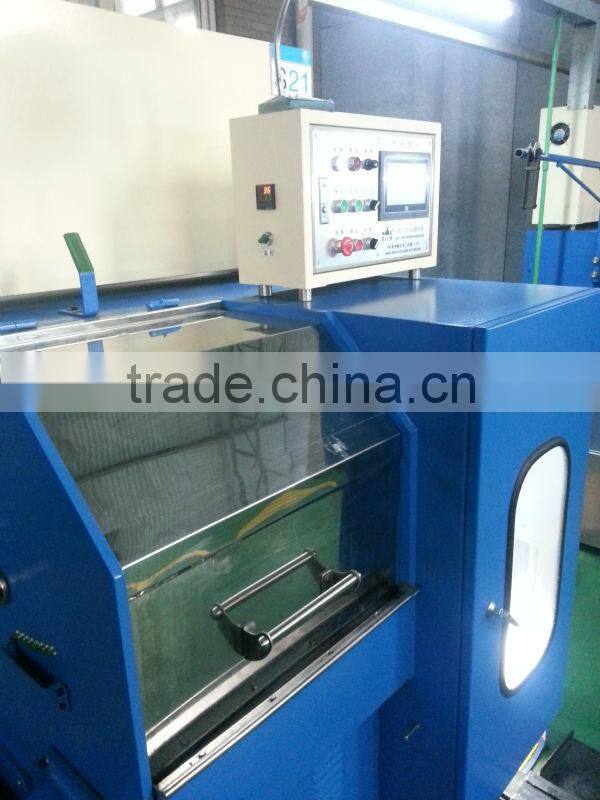

super fine wire drawing plant manufacturer
1. Usage for Automatic copper super fine wire drawing machine :
The high speed fine wire drawing machine is used for drawing wire from diameter 0.50-1.20mm to 0.08-0.40mm.
2. Technical Parameter of High Speed Supper Fine Copper Wire Drawing machine :
Power Control |
Dual frequency conversion control |
Most modulus |
24 |
Inlet wire diameter |
0.25mm—0.08mm |
Wire finished diameter |
0.025—0.08 mm |
Maximum line speed |
MAX2000m/min |
Slip ratio |
10% |
Constant speed capstan slip ratio |
8% |
Host body structure |
One casting |

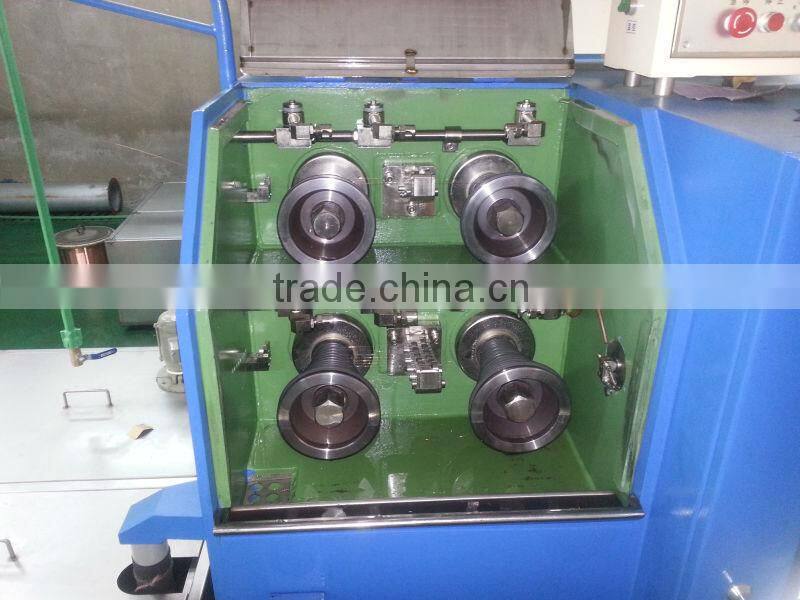

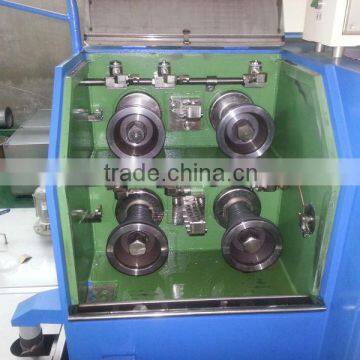

Capstan |
Sprayed ceramic Capstan |
Drawing motor |
4KW |
Take-up Power |
4KW |
Max.capstan diameter |
130mm |
Fixed speed capstan diameter |
120mm |
Take-up shaft dimensions |
300mm or specified by customer |

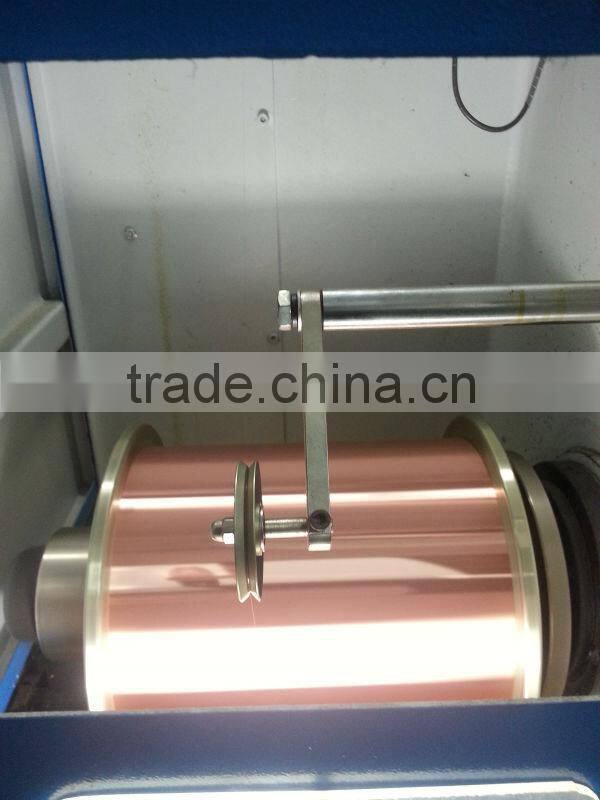

Take-up way |
Top center screw tight type |
Traversing way |
110W synchronous motors |
Transmission |
Flat belts |
Take-up control |
PID displacement detection automatic control |
Deflection detection device |
Arm type |
Tension adjustment method |
Counterweight way |
Maximum load |
50KG |
Drawing Lubrication |
Spray type |
Brake |
Electromagnetic brakes |
Bearing Lubrication |
Oilless type |
Voltage |
380V 50HZ or specified voltage |
Drawing oil |
40 L/min |
Weight |
2000KG |

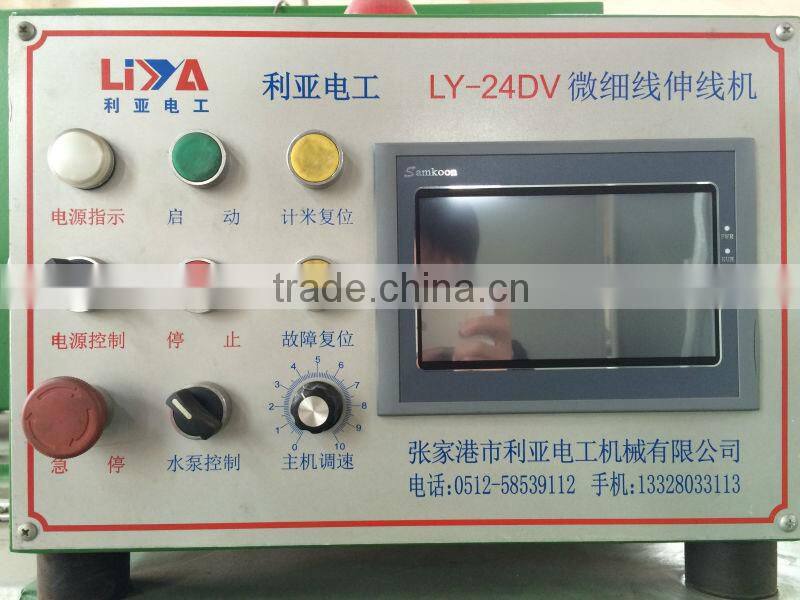

After-Sale Service for LY-24DV High Speed Super-fine Copper Wire Drawing Machine:
1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
Quality, Innovation and Service
