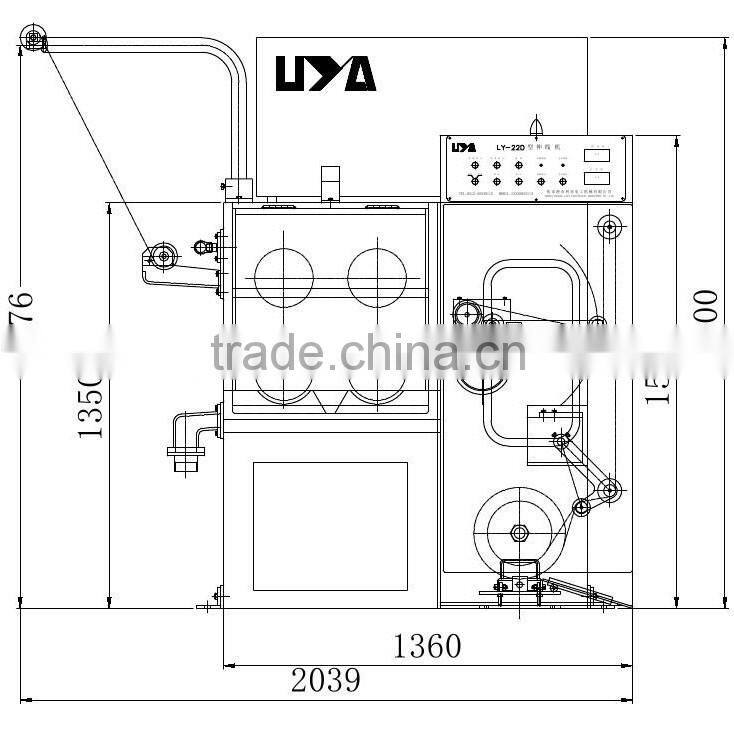

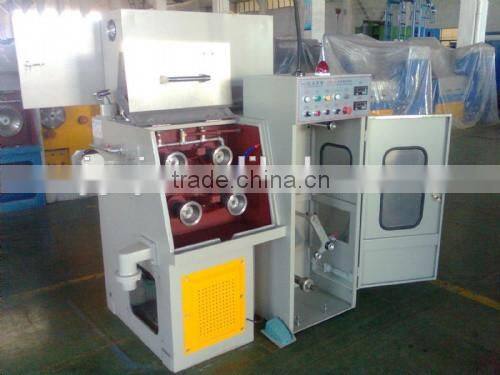

LY-22DS/24DS draw wire machine in China
1. Usage for LY-22DS/24DS High Speed Fine Wire Drawing Machine:
The high speed fine wire drawing machine is used for drawing wire from diameter 0.50-1.20mm to 0.08-0.40mm.
2. Technical Parameter for LY-22DS/24DS High Speed Fine Wire Drawing Machine:
Machine Type |
22DS |
24DS |
Inlet Diameter(mm) |
Ø0.60-Ø1.20 |
Ø0.50-Ø1.00 |
Outlet Diameter (mm) |
Ø0.10-Ø0.40 |
Ø0.08-Ø0.25 |
Max. Drawing Speed (m/min) |
2500 |
|
Max. Drawing Dies No. |
22 |
24 |
Slip Ratio of m/c |
15% |
13% |
Fix Speed Capstan Slip Ratio |
8% |
|
Capstan |
Ceramic Plasma |
|
Max. Capstan Dia. (mm) |
Ø242 |
|
Fix Speed Capstan Dia. (mm) |
Ø207 |
|
Frame |
Ironed Cast |
|
Main Motor |
11KW Three Phase Inductor Motor |
|
Spooler Motor |
3.7KW Three Phase Inductor Motor |
|
Revise System |
PID Synchronous Spooler |
|
Inverter Control |
Dual Inverter Control |
|
Transmission |
Flat Belt |
|
Send-Out Method |
Over Head |
|
Traversing Unit |
Flat Belt + Timing Motor |
|
Tension Control |
Weight Balance by Swing Arm |
|
Lubrication |
Spray |
|
Suitable Dia. of Spool (mm) |
Ø300 |
|
Capacity for Wire Receiving (KG) |
50-60 |
|
Bobbin Loading & Unloading Type |
Shaft |
|
Power Source |
380V |
|
Brake |
Pneumatic |
|
Machine Dimension (L×W×H) (mm) |
2050×1600×1900 |
|
Weight (KG) |
2500 |
|
After-Sale Service for LY-22DS/24DS High Speed Fine Wire Drawing Machine:
1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
Quality, Innovation and Service
