Multistage Centrifugal Pump With SS316, 304 Material Options

US$ 1 - 1 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

EPP

Model Number:

EPP CV/CVF

Dongguan Pengnong Im&Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name EPP

Model Number EPP CV/CVF

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Motor

Pressure High Pressure

Application Other, water supply

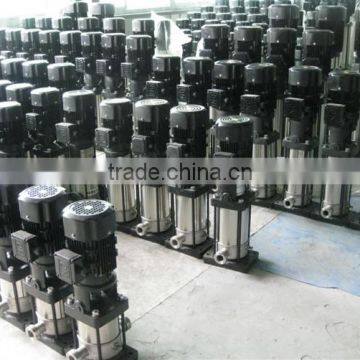

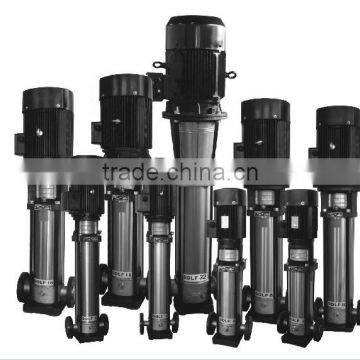

CV(CVF) STAINLESS STEEL VERTICAL MULTI-STAGE CENTRIFUGAL PUMP
PRODUCT PHOTO	PRODUCT SPECIFICATIONS
	Pump Inlet:		DN25mm - DN100mm
	Pump Outlet:		DN25mm - DN100mm
	Capacity Ranges:		0.4m3/h - 120m3/h
	Head Ranges:		6m -309m
	Max. Suction Pressure:		0.4Mpa - 1.0MPa
	Power Ranges:		0.37KW - 45KW
	Speed(RPM):		1450RPM / 2900RPM
	Liquid Temperature(℃):		-20℃ - 120℃
	Material	Suction casing Discharge casing	- Cast iron - Stainless steel (SS304 / SS316 )
		Stage casing Diffuser	Stainless steel (SS304 / SS316)
		Impeller	Stainless steel (SS304 / SS316 )
		Pump Shaft	Stainless steel : AISI304 / SS316 / AISI316L / Monel alloy
		Sliding bearing	Alloy (Silicon carbide)
	Shaft Sealing:		Mechanical seal
	Motor (Choice):		- SIEMENS / WEG/ Factory Standard - Single or Three Phase
APPLICATION
- Water supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings; - Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system; - Industrial liquid conveying: Cooling and air-condition system, boiler water supply and condensation system, machine-associated purpose, acids and alkali; - Water treatment: Ultra-filtration system, Reverse Osmosis system; - Demineralizing water system, softening, ionising; - Distillation sytem, seperator; - Swimming pool; - Drip-feed irrigation, sprinkler irrigation.
