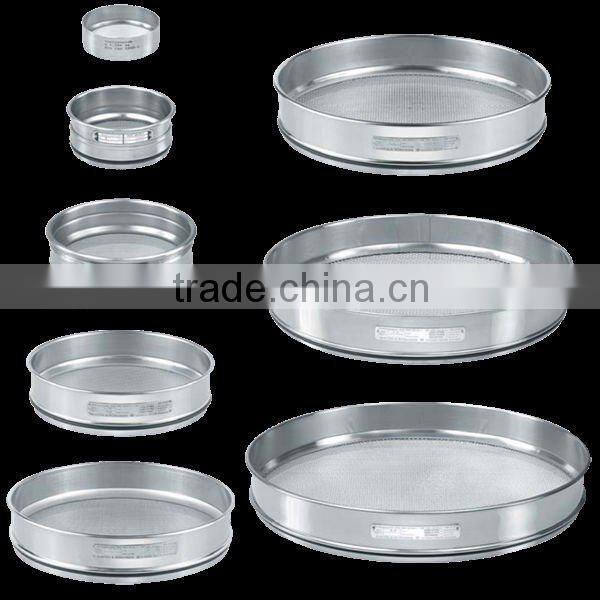

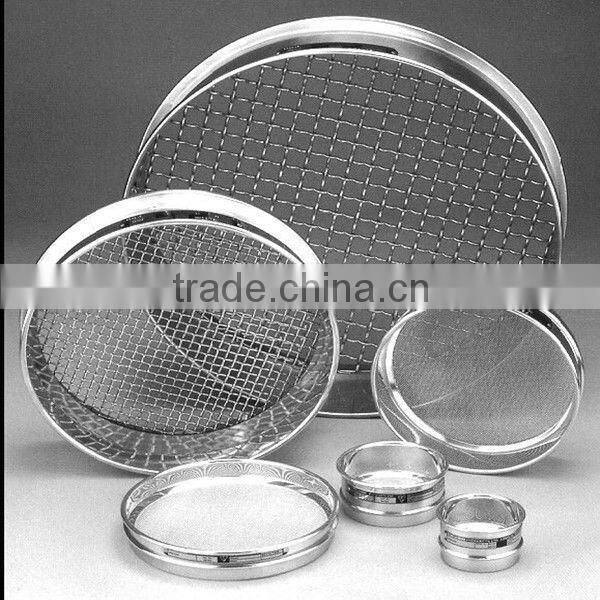

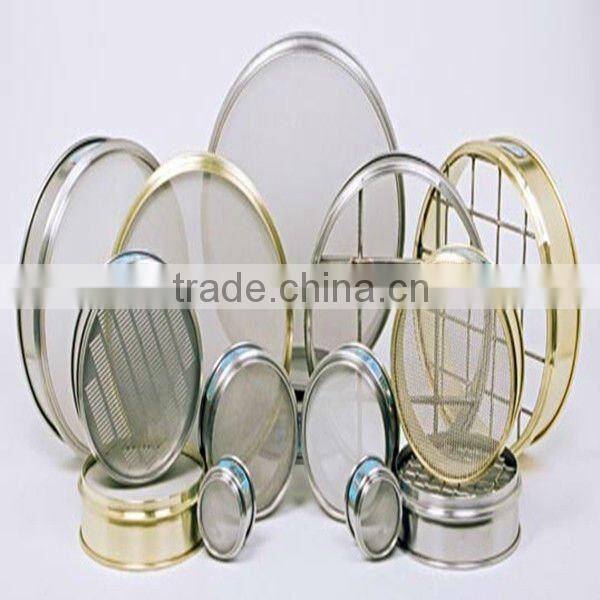

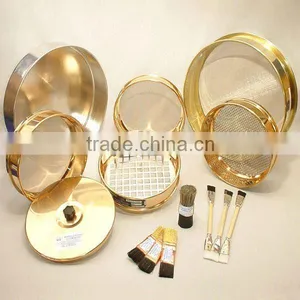

(Factory) Square Mesh Test Sieve

Model

Application

Sieves opening (mm)

Frame

FB-2

Soil analysis sieve

0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5

Ø 200 x 50mm

FB-3

Sand analysis sieve

9.50,4.75,2.36,1.18,600um,300um,150um

Ø 300 x 75mm

FB-4

Stone analysis sieve

2.36,4.75,9.50,16.0,19.0,26.5,31.5,37.5,53.0,63.0,75.0,90.0

Ø 300 x 75mm

 FB-5

Asphalt analysis sieve

0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5; 13.2; 16; 19; 26.5; 31.5; 37.5; 53

Ø 300 x 75mm

 FB-6

Wash sieves

dia 120mm, 0.75mm

FB-7

Cement Sieves
