Specifications
1.high quality and screen printing flash dryer2.Brand assurance
3.Stable performance/ high accuracy
4.CE manufacturer

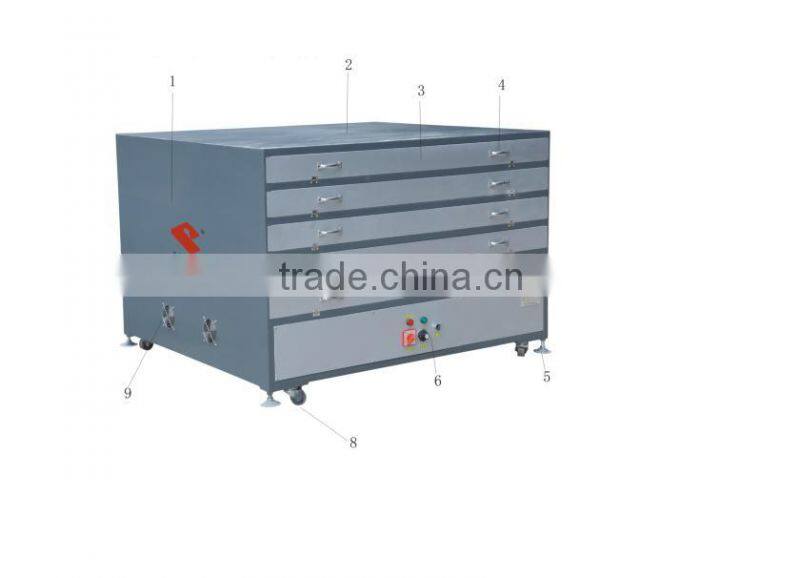

Shape and the main function:
1, Body: body of baking box
2, Metal plate
3, Sliding door: Open the door can put the frame in box
4, Handle: fixe to the sliding door, convenient to open the door
5, Adjustable support seat: adjust balance of the box
6, Operate panel: control the function of baking box
7, Label: label of product
8, Caster: convenient to move the box
9, Exhaust fan: Inward exhaust, make air circulation
Technical Parameters:
model |
KM-HB80100A |
KM-HB90120A |
max drying size(mm) |
800×1000 |
900×1200 |
power supply(V/Hz) |
380/50 |
380/50 |
power (kw) |
4 |
4 |
machine size(mm)L*W*H |
1200×900×1000 |
1100×1400×1200 |
Each major part and function:

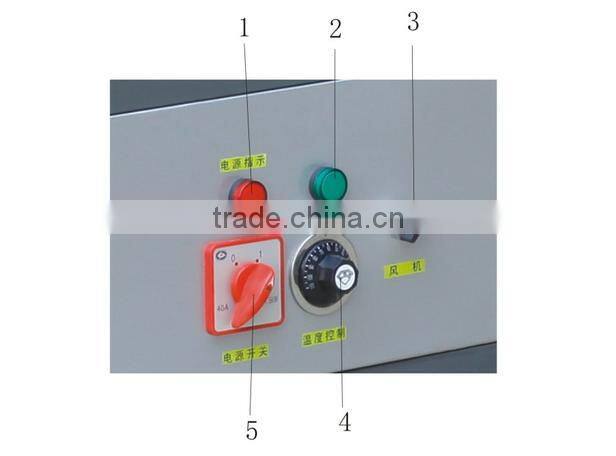

Operate panel
1, The power indicator light:Open the power of baking box, this indicator light will be bright
2, Temperature indicator light: when open the temperature control switch, this indicator light will be bright
3, Fan switch: the fan will work when open this switch
4, Temperature control switch: adjust the temperature you need
5, Power switch: control the power on/off

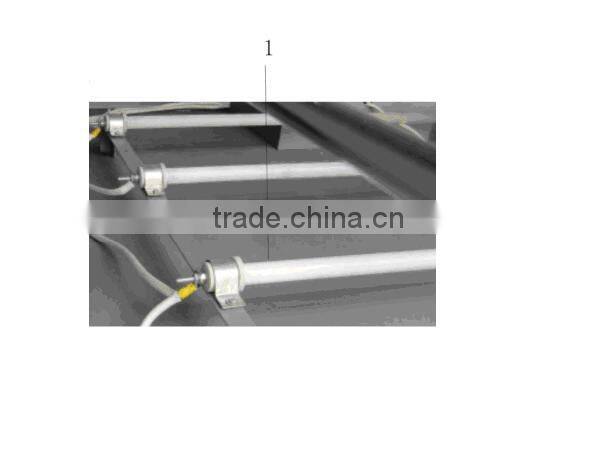

Heating pipe assembly
1,Heating pipe: supply heat when barking
Operation method of screen drying:
1, using detergent(low acid/alkaline) to wash the frame before putting into the box, then scour with water
2, vertical placement to remove stagnant water, then put into the lowest level to prevent upper frame’s drip making water stains
3, take out the top frame after it bark about 4-5 minutes, the rest of frames move upward, then putting a new clean screen frame into the lowest level.

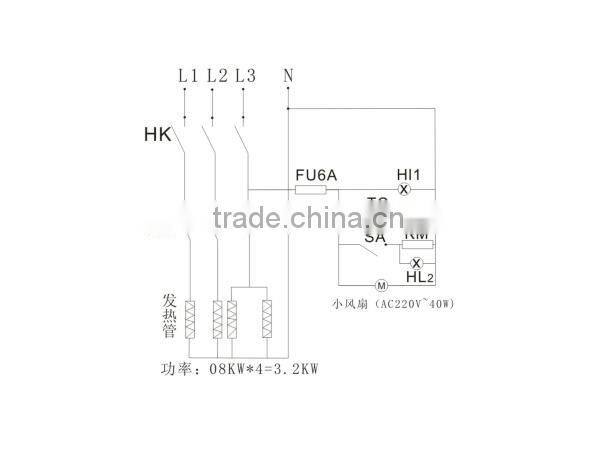

Circuit diagram:
