Specifications
Razor barbed wireRazor Barb Distance (cm) :7.5-15
Razor Barb Length (cm): 1.5-3
Razor SWG:10*10-16*18
ISO
Product information:
Material: Mainly Galvanized steel wire, PVC coated iron wire.
Number of loops: 33mm-102mm. Standard length per coil: 8m-16m.
Specifications:
Razor Specification |
Razor Thickness(mm) |
Wire diameter(mm) |
Barb Length(mm) |
Barb Width(mm) |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
Barbed Wire Specification | ||||
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating Barbed Iron Wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated Barbed Iron Wire; PE Barbed Iron Wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||

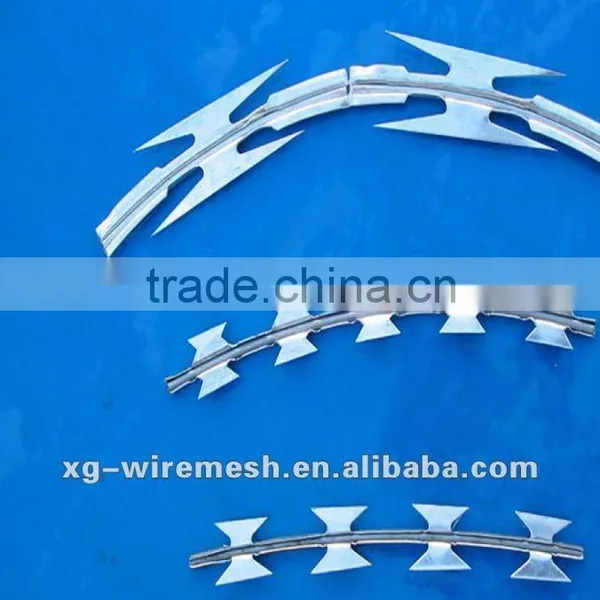

Type of razor wire:
Example Application:
( Be used as security window and fence, cross type razor barbed wire; be set up on top of solid walls. Razor wire can be widely used in industry, agriculture and especially in military security. )
Production and Packing of razor wire:
(Production: Our own factory, machines and technology, Lowest cost.
Standard Packing: 1-with waterproff paper and woven cloth, 250-400kg/bundle, binding with steel strip. 2-as customer's requirements.)
