Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
STC
Model Number:
M30
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thread Forming Tap for Miniature Threads VP-NRT RH4US$ 2 - 5MOQ: 100 Pieces -
Micro Thread Forming Tap Cold Forming Tap Fluteless TapUS$ 2 - 5MOQ: 100 Pieces
-
Spiral Flute Machine Tap Blue RingNegotiableMOQ: 100 Pieces
-
Spiral Point Machine Tap Blue Ring HSSCobaltNegotiableMOQ: 100 Pieces
-
Hand Tap Set DIN352 Hand Tap Set 3pcs SetUS$ 0.5 - 5MOQ: 50 Sets
Place of Origin
Jiangsu, China
Brand Name
STC
Model Number
M30
Type
Tap
Machine tap spiral flute blue ring
for blind holes
HSS. HSS-E
metric ISO-thread DIN 13
Din371/376
size: M3-M20
Blue ring:
Application:
wear resistant steels up to 1200 N/mm blue ring machine taps
-high alloy steels
-short chipping materials
-short chipping stainless steels
-alloy tool steel
-Spiral Flute for blind holes

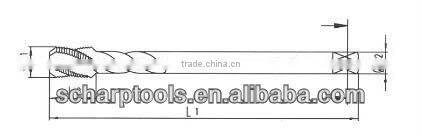

| d1 | Pitch | d2 | tail | Pre hole | l1 | l2 |
| M2 | 0.4 | 2.8 | 2.1 | 1.6 | 45 | 8 |
| M2.2 | 0.45 | 2.8 | 2.1 | 1.75 | 45 | 9 |
| M2.3 | 0.4 | 2.8 | 2.1 | 1.9 | 45 | 9 |
| M2.5 | 0.45 | 2.8 | 2.1 | 2.05 | 50 | 9 |
| M2.6 | 0.45 | 2.8 | 2.1 | 2.1 | 50 | 9 |
| M3.0 | 0.5 | 3.5 | 2.7 | 2.5 | 56 | 6 |
| M3.5 | 0.6 | 4 | 3 | 2.9 | 56 | 7 |
| M4 | 0.7 | 4.5 | 3.4 | 3.3 | 63 | 7.5 |
| M5 | 0.8 | 6 | 4.9 | 4.2 | 70 | 8.5 |
| M6 | 1 | 6 | 4.9 | 5 | 80 | 11 |
| M7 | 1 | 7 | 5.5 | 6 | 80 | 11 |
| M8 | 1.25 | 8 | 6.2 | 6.8 | 90 | 14 |
| M10 | 1.5 | 10 | 8 | 8.5 | 100 | 16 |
