Spiral Point Machine Tap Blue Ring HSSCobalt
Negotiable
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | STC | |
| Model Number | U70 |
Product Description

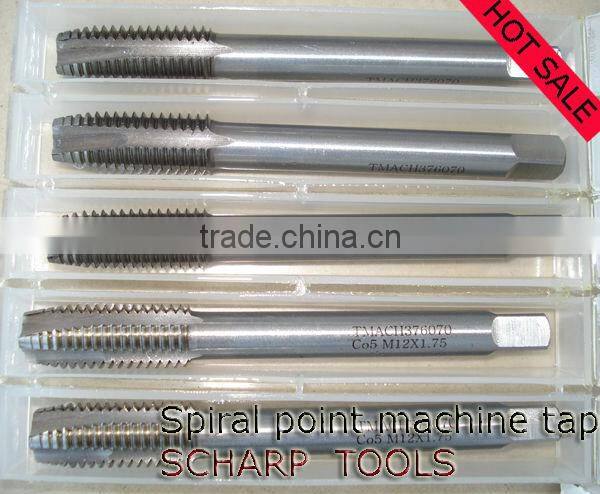

SPIRAL POINT MACHINE TAP BLUE RING
1.DIN 371/DIN376
2.fully ground,HSSCO 5%
3.Suitable for stainless steel.
4.size: M3~M20,1/4"~1"
5.packaging: plastic box
DIN371
| Nominal | Pitch | Thread | Total | Thread |
| thread | mm | core hole | length | length |
| size | mm | mm | mm | |
| M 2 | 0,40 | 1,60 | 45,0 | 8,0 |
| M 2,5 | 0,45 | 2,05 | 50,0 | 9,0 |
| M 3 | 0,50 | 2,50 | 56,0 | 10,0 |
| M 4 | 0,70 | 3,30 | 63,0 | 12,0 |
| M 5 | 0,80 | 4,20 | 70,0 | 13,0 |
| M 6 | 1,00 | 5,00 | 80,0 | 13,0 |
| M 8 | 1,25 | 6,80 | 90,0 | 18,0 |
| M 10 | 1,50 | 8,50 | 100,0 | 20,0 |
DIN376
| d1 | pitch | d2 | sw | l1 | l2 |
| diameter | shank | square | total length | flute length | |
| M2 | 0.4 | 1.4 | 45 | 8 | |
| M2.5 | 0.45 | 1.8 | 50 | 9 | |
| M3 | 0.5 | 2.2 | 56 | 10 | |
| M3.5 | 0.6 | 2.5 | 2.1 | 56 | 12 |
| M4 | 0.7 | 2.8 | 2.1 | 63 | 12 |
| M5 | 0.8 | 3.5 | 2.7 | 70 | 14 |
| M6 | 1 | 4.5 | 3.4 | 80 | 16 |
| M7 | 1 | 5.5 | 4.3 | 80 | 16 |
| M8 | 1.25 | 6 | 4.9 | 90 | 18 |
| M10 | 1.5 | 7 | 5.5 | 100 | 20 |
| M12 | 1.75 | 9 | 7 | 110 | 24 |
| M14 | 2 | 11 | 9 | 110 | 26 |
| M16 | 2 | 12 | 9 | 110 | 26 |
| M18 | 2.5 | 14 | 11 | 125 | 30 |
| M20 | 2.5 | 16 | 12 | 140 | 32 |
| M22 | 2.5 | 18 | 14.5 | 140 | 32 |
| M24 | 3 | 18 | 14.5 | 160 | 36 |
| M27 | 3 | 20 | 16 | 160 | 36 |
| M30 | 3.5 | 22 | 18 | 180 | 40 |
| M33 | 3.5 | 25 | 20 | 180 | 40 |
| M36 | 4 | 28 | 22 | 200 | 50 |
