Din2181 Fine Thread Hand Tap
Negotiable
/ Set
100 Sets(Min. Order)
- shanghai
- T/T Money Gram PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | STC | |
| Model Number | U10 | Type | Tap |
Product Description

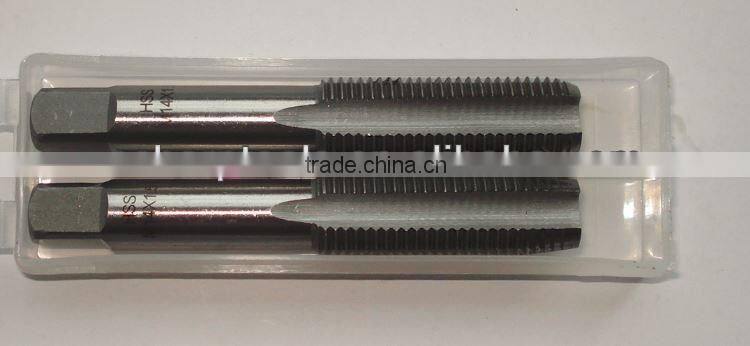

Din2181 Hand tap, Fine thread
Thread DIN 13 Tolerance ISO2/6H.
High speed steel,ground teeth.
DIN 2181 serial form taps; rougher tap
(with 1 ring) cuts 3/4 area of thread and
finisher tap cuts full form.
Size: M3-M30.
| d1 | x P | I1 | I2 | d2 | a | Pre hole |
| M 3 | x 0,35 | 40 | 8 | 3,5 | 2,7 | 2,65 |
| M 5 | x 0,5 | 50 | 11 | 6 | 4,9 | 4,5 |
| M 6 | x 0,5 | 56 | 12 | 6 | 4,9 | 5,5 |
| M 8 | x 1 | 63 | 17 | 6 | 4,9 | 7 |
| M 9 | x 1 | 63 | 17 | 7 | 5,5 | 8 |
| M 10 | x 0,75 | 63 | 18 | 7 | 5,5 | 9,2 |
| M 10 | x 1 | 63 | 18 | 7 | 5,5 | 9 |
| M 10 | x 1,25 | 70 | 22 | 7 | 5,5 | 8,8 |
| M 11 | x 1 | 63 | 18 | 8 | 6,2 | 10 |
| M 12 | x 1 | 70 | 18 | 9 | 7 | 11 |
| M 12 | x 1,25 | 70 | 20 | 9 | 7 | 10,8 |
| M 12 | x 1,5 | 70 | 20 | 9 | 7 | 10,5 |
| M 14 | x 1,25 | 70 | 20 | 11 | 9 | 12,8 |
| M 14 | x 1,5 | 70 | 20 | 11 | 9 | 12,5 |
| M 16 | x 1 | 70 | 18 | 12 | 9 | 15 |
| M 16 | x 1,5 | 70 | 20 | 12 | 9 | 14,5 |
| M 18 | x 1 | 80 | 18 | 14 | 11 | 17 |
| M 18 | x 1,5 | 80 | 22 | 14 | 11 | 16,5 |
| M 18 | x 2 | 80 | 22 | 14 | 11 | 16 |
| M 20 | x 1 | 80 | 18 | 16 | 12 | 19 |
| M 20 | x 1,5 | 80 | 22 | 16 | 12 | 18,5 |
| M 20 | x 2 | 80 | 22 | 16 | 12 | 18 |
| M 22 | x 1 | 80 | 18 | 18 | 14,5 | 21 |
| M 22 | x 1,5 | 80 | 22 | 18 | 14,5 | 20,5 |
| M 22 | x 2 | 80 | 22 | 18 | 14,5 | 20 |
| M 24 | x 1 | 90 | 18 | 18 | 14,5 | 23 |
| M 24 | x 1,5 | 90 | 22 | 18 | 14,5 | 22,5 |
| M 24 | x 2 | 90 | 22 | 18 | 14,5 | 22 |
| M 25 | x 1,5 | 90 | 22 | 18 | 14,5 | 23,5 |
| M 26 | x 1,5 | 90 | 22 | 18 | 14,5 | 24,5 |
| M 28 | x 1,5 | 90 | 22 | 20 | 16 | 26,5 |
| M 30 | x 1 | 90 | 18 | 22 | 18 | 29 |
| M 30 | x 1,5 | 90 | 22 | 22 | 18 | 28,5 |
