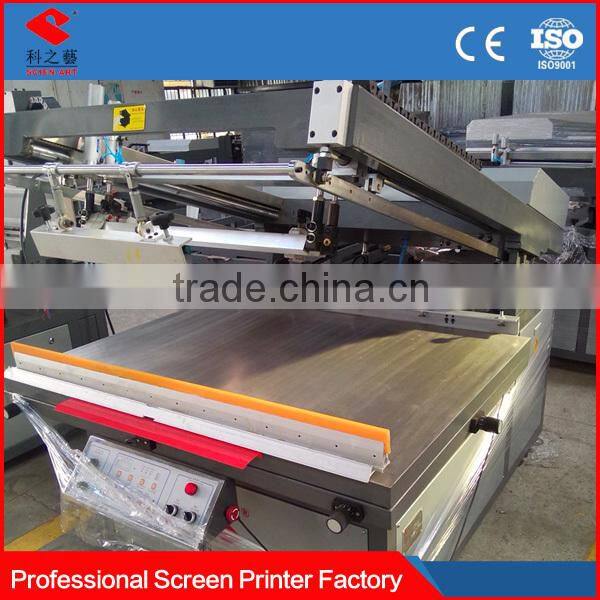

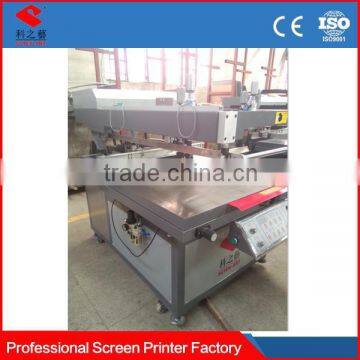

Help CenterYkp6090/70100/90120 With Vacuum Table Heat Transfer Paper Spot uv Screen Printing Machine
Related Products
-
Over 17 Experience Factory Pcb Printing Machine, Offer Pcb Screen Printing MachineNegotiableMOQ: 1 Set -
1-10 Colors Automatic Multi Color Flatbed Screen Printing Machine, Automatic Flat Screen Printing MachineNegotiableMOQ: 1 Set
-
Scien-art Professional Manufacturer High Quality uv Glass Screen Printing MachineNegotiableMOQ: 1 Set
-
Real Factory Flatbed Pcb Silk Screen PrinterUS$ 1 - 3MOQ: 1 Set
-
Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing SystemUS$ 1 - 10MOQ: 1 Set
heat transfer paper printing machine :
| Model | YKP6090 | YKP-70100 | YKP90120 |
| Workbench Area (mm²) | 700*1000 | 800*1100 | 1000*1300 |
| Max Print Area (mm²) | 600*900 | 700*1000 | 900*1200 |
| Max Screen Size(mm) | 900*1200 | 1000*1300 | 1200*1500 |
| Min Screen Size(mm) | 450*550 | 550*650 | 650*700 |
| Frame Lift Height (mm) | 300 | 300 | 300 |
| Operation Air Pressure (Mpa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Air-Consumption(0.6Mpa)(L/pcs) | 13 | 13 | 13 |
| Source Power (kw) | 2.3 | 2.3 | 2.3 |
| Rated Power (V/Hz) | 220/50 | 220/50 | 220/50 |
| Max Table Height(to floor) | 820 | 820mm | 820 |
| Printing Speed (pcs/h) | 500-1200 | 500-1200 | 500-1200 |
| Dimension (mm) L×W×H | 1500*1200*1250 | 1600×1350×1280 | 1800*1400*1300 |
| Weight (kg) | 410 | 480 | 550 |
| Thickness of printing stock | 0-50mm | 0-20mm,0-50mm | 0-50mm |
Application Scope:
- The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card.
The main component configuration:
Altivar------------------------------ Schneider
intermediate relay ------------------ Schneider
AC contactor ----------------------- Schneider
air cylinder -------------------------- Xintaiming
Motor drive belt ---------------------- JP Samsung
electromagnetic valve ----------------- Korea YSC
linear guide rail----------------------- Taiwan HIWIN
Suction pump ------------------------ Shanghai FULI
knob -------------------------------- Shanghai Re-gong Electric

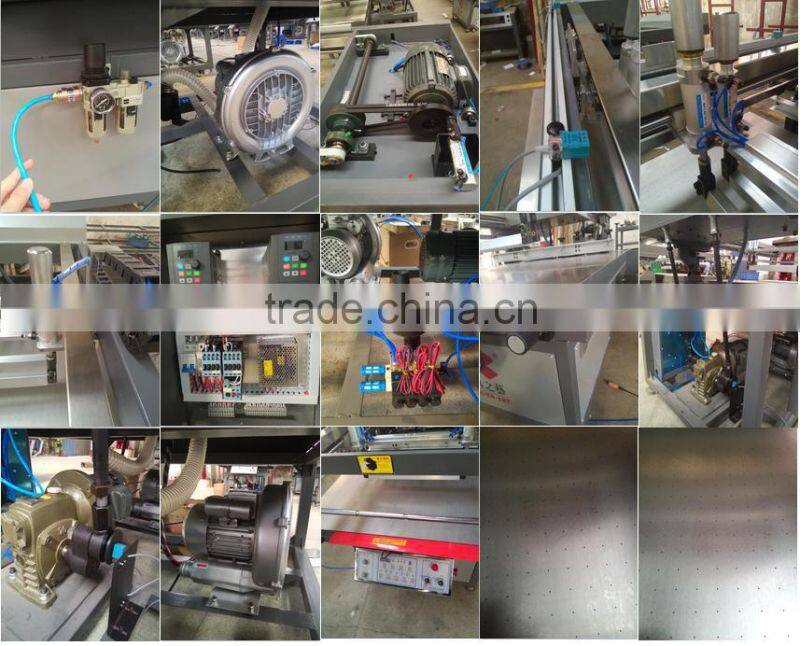

products details:
products raw material:
| |
| |
