Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System

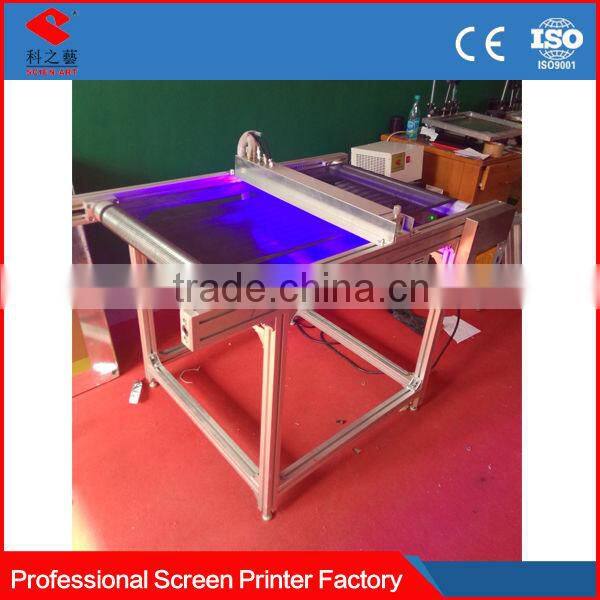

Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System photo-1
Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System photo-2
Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System photo-3
Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System photo-4
Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System photo-5
Newest Technology Low Power Save 90% Electricity 395nm Led uv Curing System photo-6
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, LED UV curing machine
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, LED UV curing machine
Automatic Grade Automatic
Place of Origin Guangdong, China
Brand Name Scien-art
Model Number customized
Voltage 220v
Power(W) 300W
Dimension(L*W*H) 1200*560*780MM
Weight 30KG
Certification CE
Warranty 1year
After-sales Service Provided Overseas third-party support available

New Technology Low Power Save 90% Electricity led uv curing system



Newest Technology Low Power Save 90% Electricity 395nm led uv curing system

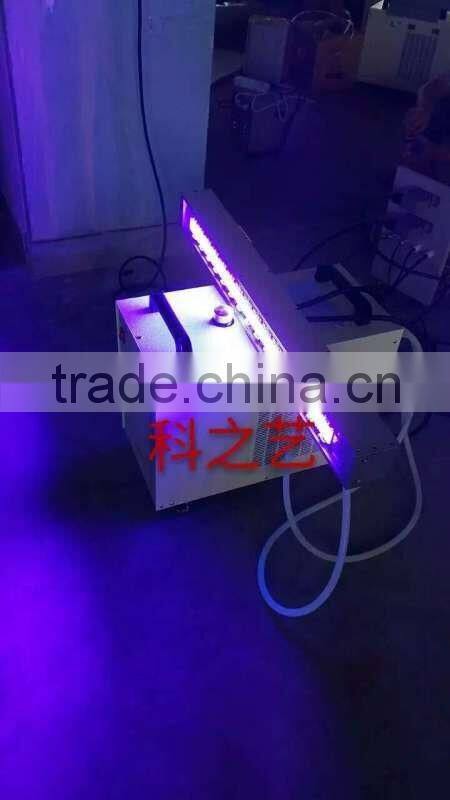

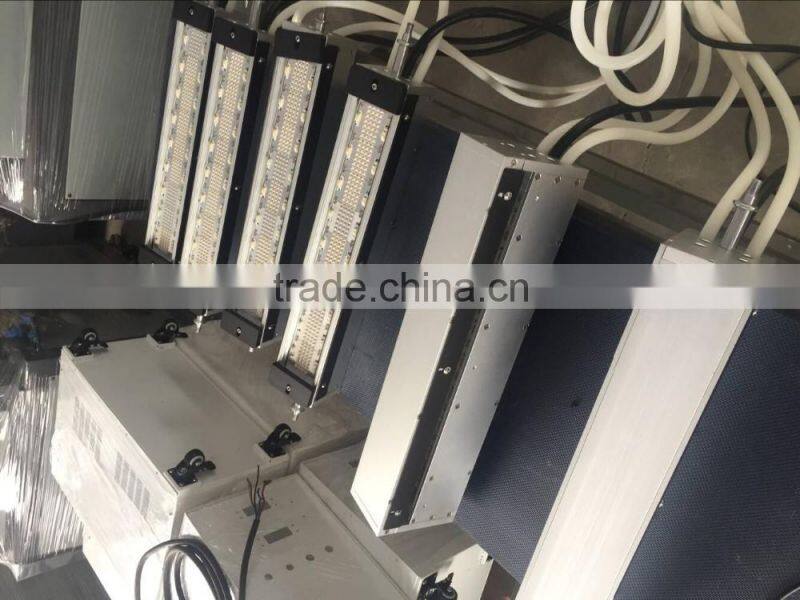

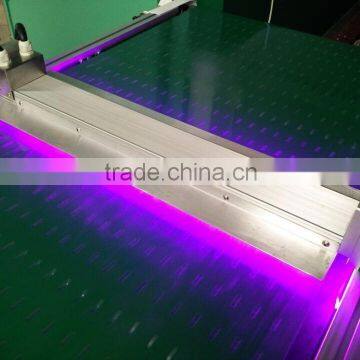

  led uv curing system:

1. Application Scope:

this is a new products,new  Technology, main for LED UV ink curing, low power,save 90%  Electricity than normal type UV curing machine(12KW), LED UV curing machine power just have 400W per 10cm curing width !!! for example, 1meter curing width, total power is 4Kw.



at the same time, this UV LED have a very long using life time,more than 20000 hour.

Tip: We can manufacture according to customer’s requirement.we can do any curing width, pls advise the max curing width you need !!!!



mould

LED UV-300

LED UV-400

LED UV-500

LED UV-600

LED UV-700

LED UV-800

LED UV-900

LED UV-1000

curing width:

300mm

400mm

500mm

600mm

700mm

800mm

900mm

1000mm

belt width:

320mm

420mm

520mm

620mm

720mm

820mm

920mm

1020mm

LED UV light power

1.3kw

1.7kw

2.2Kw

2.6Kw

3kw

3.5Kw

4kw

4.4kw

LED UV wave length:

 395nm

Irradiation power:

 8 -12 W/cm²

Input voltage :

 220V/50Hz

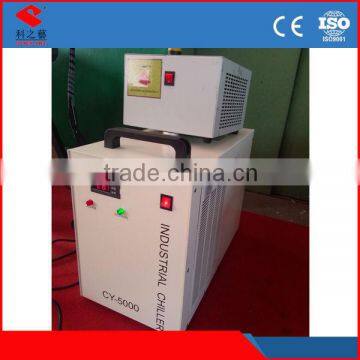

Cooling System :

 water cooling system

Max belt speed :

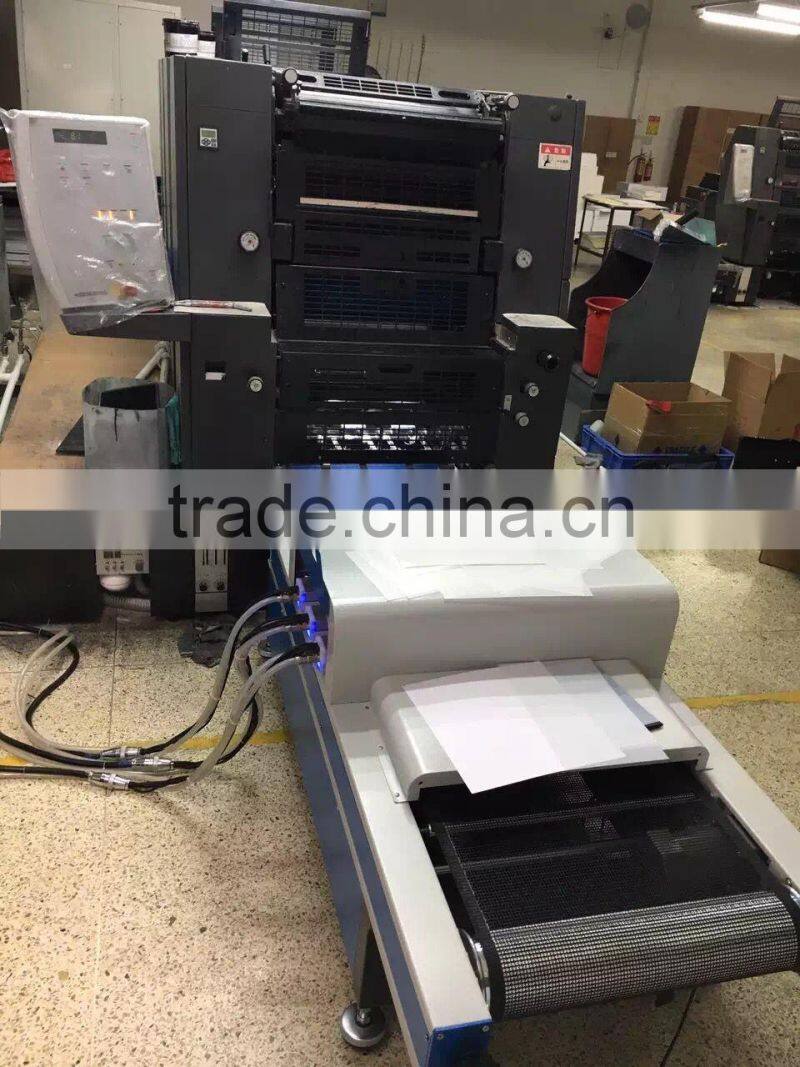

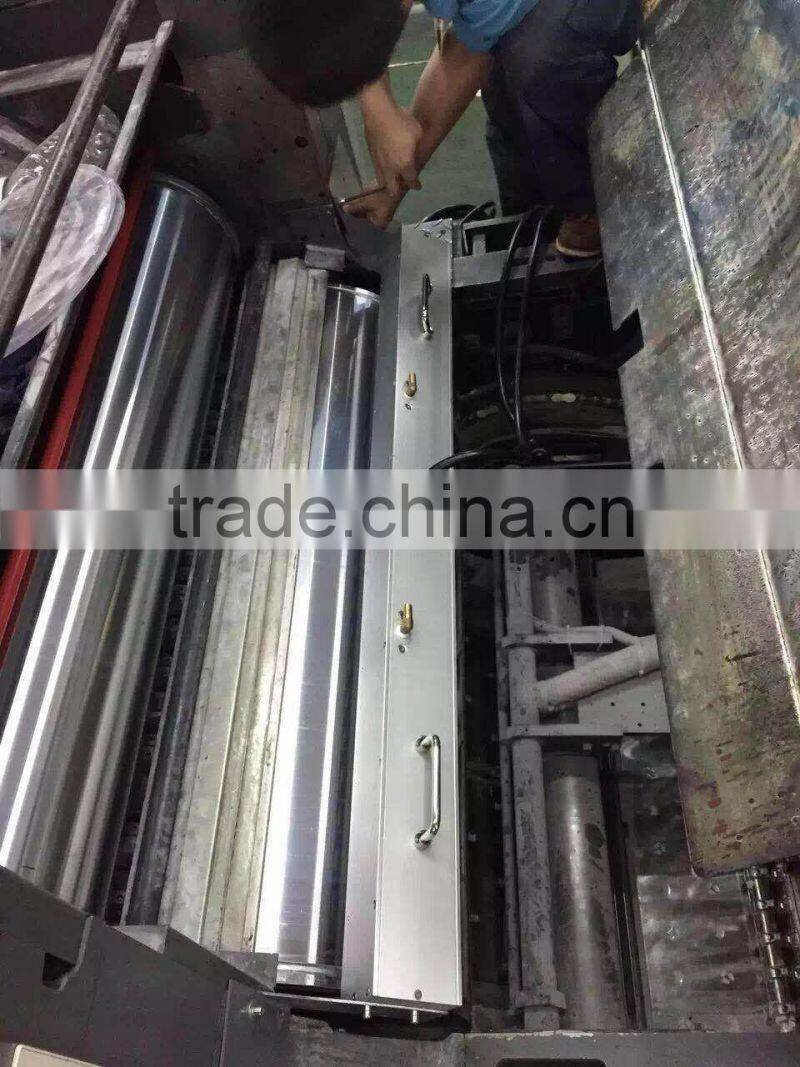

 0-120m/min,( for screen printing use 0-25m/min; for offset or rotary printing use 0-120m/min.)

using life:

 over 20000 hours

warranty time:

 2 years

Irradiation temperature:

 about 30 degree C

machine total length:

 usual 1.6m length

weight

30kg

35kg

40kg

45kg

50kg

55kg

60kg

65kg





















Video link :





/watch?v=BooPcsqYi1w


/watch?v=hIx-s--0glY


/watch?v=JOFJl5oFuCc



/watch?v=hIx-s--0glY&list=PLx_8jIt11ANmfvseoTlSCRvMrP4dkp3o9



/watch?v=JOFJl5oFuCc&index=3&list=PLx_8jIt11ANmfvseoTlSCRvMrP4dkp3o9



/watch?v=4J-MyUfShPE



/watch?v=HYVEQ6MC80k

  Newest Technology Low Power Save 90% Electricity 395nm led uv curing system

Newest Technology Low Power Save 90% Electricity 395nm led uv curing systemNewest Technology Low Power Save 90% Electricity 395nm led uv curing systemNewest Technology Low Power Save 90% Electricity 395nm led uv curing systemNewest Technology Low Power Save 90% Electricity 395nm led uv curing systemNewest Technology Low Power Save 90% Electricity 395nm led uv curing system

Newest Technology Low Power Save 90% Electricity 395nm led uv curing system







Newest Technology Low Power Save 90% Electricity 395nm led uv curing system

Newest Technology Low Power Save 90% Electricity 395nm led uv curing systemNewest Technology Low Power Save 90% Electricity 395nm led uv curing system
Newest Technology Low Power Save 90% Electricity 395nm led uv curing systemNewest Technology Low Power Save 90% Electricity 395nm led uv curing system

Newest Technology Low Power Save 90% Electricity 395nm led uv curing system
