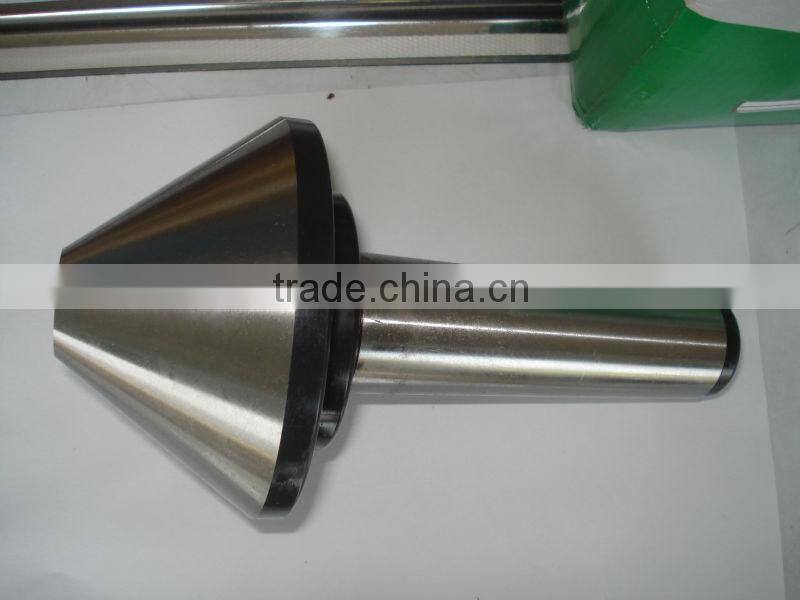

Bull nose live centers.
The tip of bull nose center uses Cr-Mo steel and hardened to HRC 60° ± 1°.
The center uses combination of taper roller bearing and ball bearing.
Constructed for large, hollow workpieces like pipes, tubing that would "swallow" a regular live center.
Accurracy: ≤0.005 to ≤0.020 .
Morse Taper Shank: MT2,MT3,MT4,MT5,MT6 .
MORES | A | B | C | D | D1 | L |
63-MT.2 | 46 | 17 | 69 | 63 | 12 | 132 |
63-MT.3 | 46 | 17 | 86 | 63 | 12 | 149 |
78-MT.3 | 52 | 18 | 86 | 78 | 15 | 156 |
106-MT.3 | 59 | 16 | 86 | 106 | 25 | 161 |
63-mt.4 | 46 | 17 | 108 | 63 | 12 | 171 |
78-MT4 | 52 | 18 | 108 | 78 | 15 | 178 |
106-MT.4 | 59 | 16 | 108 | 106 | 25 | 183 |
128-MT4 | 73 | 12 | 108 | 128 | 40 | 193 |
156-MT.4 | 88 | 12 | 108 | 156 | 45 | 208 |
206-MT.4 | 98 | 12 | 108 | 206 | 81 | 218 |
258-MT4 | 107 | 13 | 108 | 258 | 92 | 228 |
128-MT5 | 73 | 12 | 136 | 128 | 40 | 221 |
156-MT.5 | 88 | 12 | 136 | 156 | 45 | 236 |
206-MT.5 | 98 | 12 | 136 | 206 | 81 | 246 |
258-MT.5 | 107 | 13 | 136 | 258 | 92 | 256 |
306-MT.5 | 170 | 30 | 136 | 306 | 120 | 273 |
206-MT.6 | 98 | 12 | 190 | 206 | 81 | 300 |
258-MT.6 | 107 | 13 | 190 | 258 | 92 | 310 |
306-MT.6 | 107 | 30 | 190 | 306 | 120 | 327 |
