Specifications
1. Imported electric parts2. Welcome visit,operate,test
3. 17 Years experience

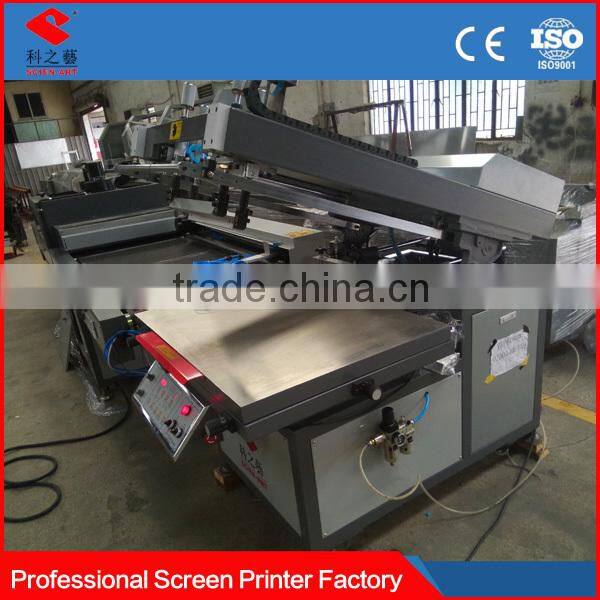

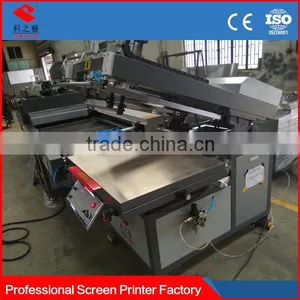

semi-automatic with UV dryer&arms screen printing machine:
Model | YKP6090 | YKP-70100 | YKP90120 |
Workbench Area (mm²) | 700*1000 | 800*1100 | 1000*1300 |
Max Print Area (mm²) | 600*900 | 700*1000 | 900*1200 |
Max Screen Size(mm) | 900*1200 | 1000*1300 | 1200*1500 |
Min Screen Size(mm) | 450*550 | 550*650 | 650*700 |
Frame Lift Height (mm) | 300 | 300 | 300 |
Operation Air Pressure (Mpa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
Air-Consumption(0.6Mpa)(L/pcs) | 13 | 13 | 13 |
Source Power (kw) | 2.3 | 2.3 | 2.3 |
Rated Power (V/Hz) | 220/50 | 220/50 | 220/50 |
Max Table Height(to floor) | 820 | 820mm | 820 |
Printing Speed (pcs/h) | 500-1200 | 500-1200 | 500-1200 |
Dimension (mm) L×W×H | 1500*1200*1250 | 1600×1350×1280 | 1800*1400*1300 |
Weight (kg) | 410 | 480 | 550 |
Thickness of printing stock | 0-50mm | 0-20mm,0-50mm | 0-50mm |
Application Scope:
-- The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card.
| |
| |
