Help CenterYKP6090/70100/90120 Semi-automatic Silk Screen Printing Machine
Related Products
-
YkP1214 Silk Screen Printing on PlasticUS$ 10,000 - 12,000MOQ: 1 Set -
YKp320 Roll to Roll Silk Screen Printing MachineUS$ 30,000 - 31,000MOQ: 1 Set
-
YkP780/1020/1050 Automatic Cylinder One Color Screen Printing PressUS$ 30,000 - 100,000MOQ: 1 Set
-
Ykp6090/7010090120 One Color Screen Printing PressUS$ 3,800 - 6,000MOQ: 1 Set
-
17 Years Experience Manufaturer High Quality Screen Printing MachineNegotiableMOQ: 1 Set
Specifications
1. famous brand in China2. over 17 years experience
3. high quality raw material

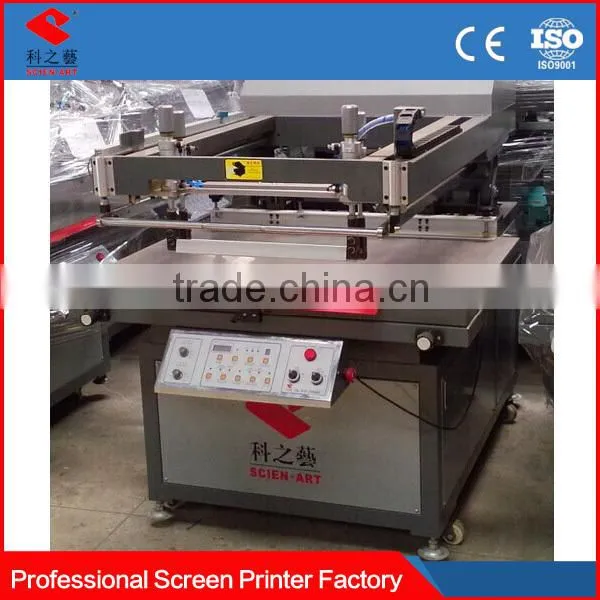

semi-automatic silk screen printing machine :
| Model | YKP6090 | YKP-70100 | YKP90120 |
| Workbench Area (mm²) | 700*1000 | 800*1100 | 1000*1300 |
| Max Print Area (mm²) | 600*900 | 700*1000 | 900*1200 |
| Max Screen Size(mm) | 900*1200 | 1000*1300 | 1200*1500 |
| Min Screen Size(mm) | 450*550 | 550*650 | 650*700 |
| Frame Lift Height (mm) | 300 | 300 | 300 |
| Operation Air Pressure (Mpa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Air-Consumption(0.6Mpa)(L/pcs) | 13 | 13 | 13 |
| Source Power (kw) | 2.3 | 2.3 | 2.3 |
| Rated Power (V/Hz) | 220/50 | 220/50 | 220/50 |
| Max Table Height(to floor) | 820 | 820mm | 820 |
| Printing Speed (pcs/h) | 500-1200 | 500-1200 | 500-1200 |
| Dimension (mm) L×W×H | 1500*1200*1250 | 1600×1350×1280 | 1800*1400*1300 |
| Weight (kg) | 410 | 480 | 550 |
| Thickness of printing stock | 0-50mm | 0-20mm,0-50mm | 0-50mm |
Application Scope:
- The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card.
The main component configuration:
Altivar------------------------------ Schneider
intermediate relay ------------------ Schneider
AC contactor ----------------------- Schneider
air cylinder -------------------------- Xintaiming
Motor drive belt ---------------------- JP Samsung
electromagnetic valve ----------------- Korea YSC
linear guide rail----------------------- Taiwan HIWIN
Suction pump ------------------------ Shanghai FULI
knob -------------------------------- Shanghai Re-gong Electric
|
|
|
|
