inline vent fan/inline duct fans/inline fans and blowers
| Model |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Air Flow ( m3/h ) |
Noise ( dB ) |
Pressure (Pa) |
Carton Size (M) |
| GDF100 | 110/120 | 60 | 70 | 0.61 | 2700 | 345 | 49 | 350 | 0.31*0.26*0.235 |
| GDF125 | 110/120 | 60 | 75 | 0.65 | 2700 | 430 | 49 | 380 | 0.31*0.26*0.235 |
| GDF150 | 110/120 | 60 | 130 | 1.0 | 2650 | 700 | 50 | 430 | 0.36*0.32*0.25 |
| GDF160 | 110/120 | 60 | 135 | 1.1 | 2650 | 730 | 50 | 450 | 0.36*0.36*0.25 |
| GDF200 | 110/120 | 60 | 200 | 1.7 | 2550 | 1150 | 53 | 550 | 0.405*0.36*0.29 |
| GDF250 | 110/120 | 60 | 210 | 1.8 | 2550 | 1200 | 53 | 600 | 0.405*0.365*0.265 |
| GDF315 | 110/120 | 60 | 250 | 2.0 | 2550 | 1800 | 53 | 790 | 0.485*0.435*0.285 |
| Model |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Air Flow ( m3/h ) |
Noise ( dB ) |
Pressure (Pa) |
Carton Size (M) |
| GDF100 | 220/240 | 50 | 60 | 0.26 | 2550 | 300 | 48 | 300 | 0.31*0.26*0.235 |
| GDF125 | 220/240 | 50 | 62 | 0.27 | 2550 | 370 | 48 | 330 | 0.31*0.26*0.235 |
| GDF150 | 220/240 | 50 | 100 | 0.47 | 2550 | 620 | 49 | 355 | 0.36*0.32*0.25 |
| GDF160 | 220/240 | 50 | 105 | 0.48 | 2550 | 660 | 49 | 380 | 0.36*0.36*0.25 |
| GDF200 | 220/240 | 50 | 150 | 0.7 | 2500 | 1000 | 52 | 430 | 0.405*0.36*0.29 |
| GDF250 | 220/240 | 50 | 160 | 0.71 | 2500 | 1100 | 52 | 490 | 0.405*0.365*0.265 |
| GDF315 | 220/240 | 50 | 220 | 1.0 | 2450 | 1600 | 52 | 710 | 0.485*0.435*0.285 |
Ventilation Low Noise Inline Duct Fan

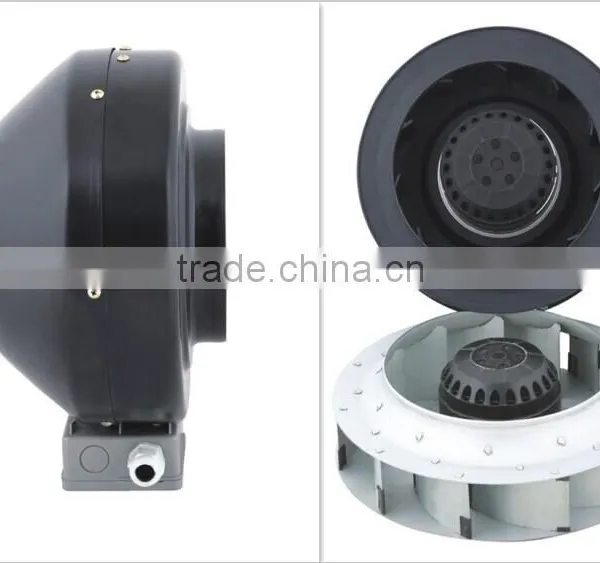

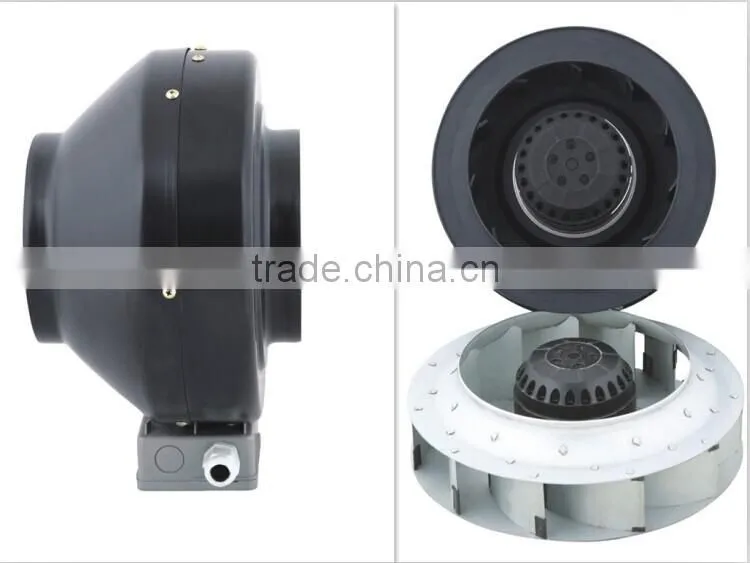

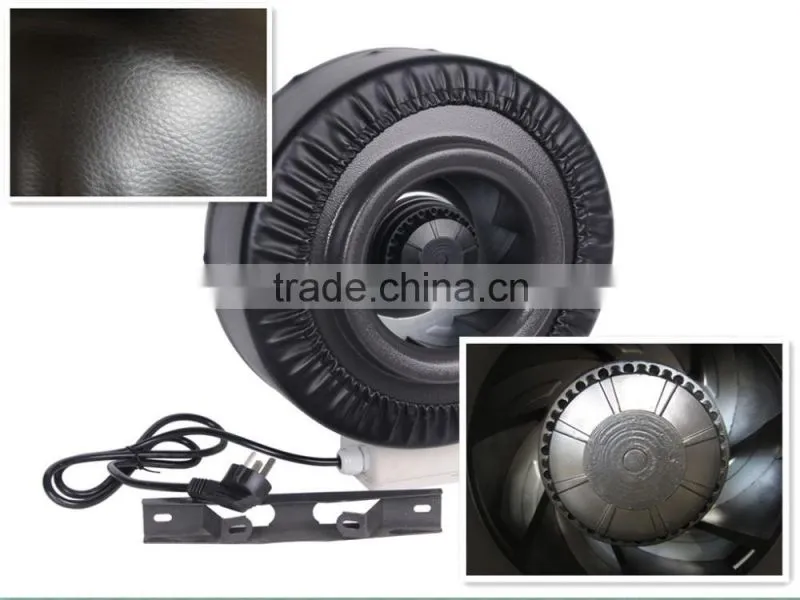

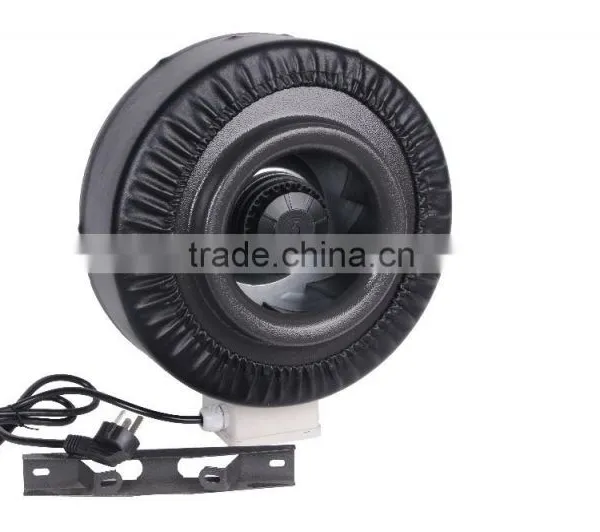

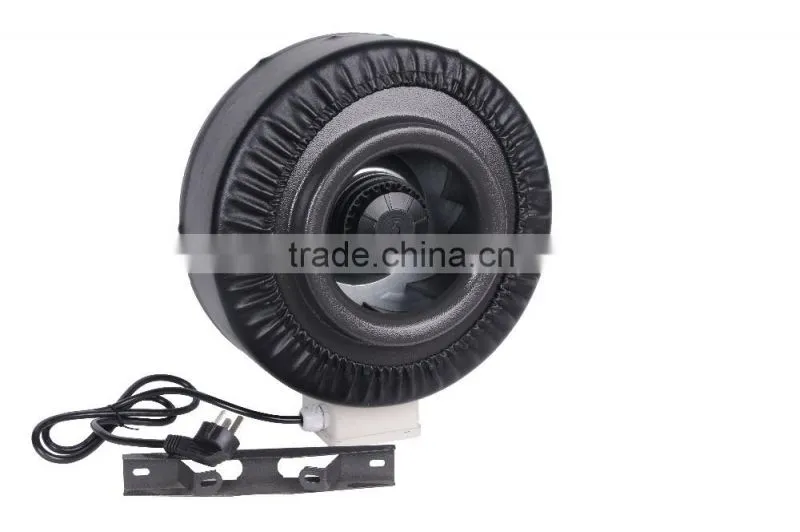

The Fan is an in-line centrifugal duct fan with high capacity and excellent reliability. The straight through radial fan is compact and very easy to install. It can cope with high pressure and long duct runs, whilst still operating at acceptable noise levels.
The Fan range of fans have casings manufactured from galvanized steel and are moisture resistant. They are approved for installation in humid or damp environments being rated IP44 when installed in a duct system.
The fan speed can be controlled by voltage variation regulators. Several fans can be connected to the same controller providing the total rating of the controller is not exceeded.

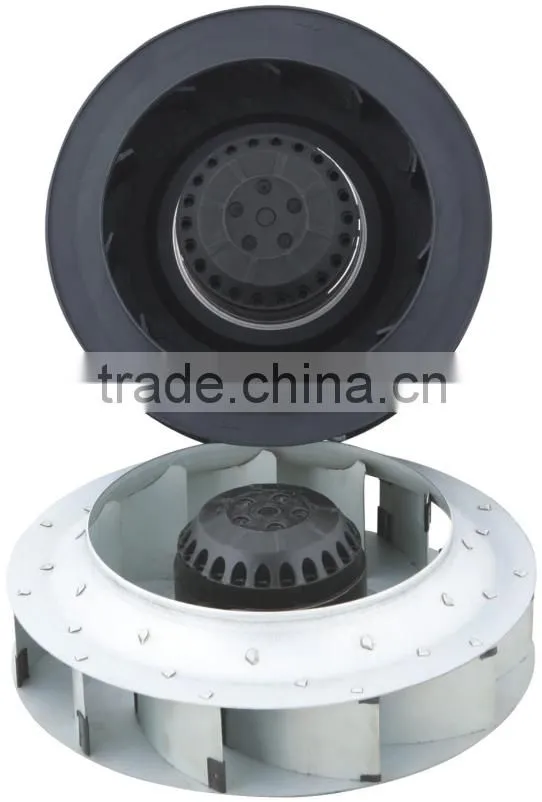

The motors are an external rotor type asynchrony motor. They have maintenance free sealed ball bearings and are protected from over heating by thermo contacts.
| Size | 4" | 5" | 6" | 6.5" | 8" | 10" | 12.5" |
| Diameter | 100mm | 125mm | 150mm | 160mm | 200mm | 250mm | 315mm |
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.
We professionally manufacture various fans and motors,which widely used in ventilation,air condition,cooling
and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being
the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates and ISO9001
Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc
Packed in seaworthy cartons, we also could packing according to customers' requests
1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
1.Freenhouse
2.Hydroponics
3.Kitchen
4.Worshop
5.House
6.Vessel
