Specifications
8 inch range hood fan motor1.4/6/8/10/12 inch available
2.1 year warranty
3,High Quallity
4.CE,CCC,UL approved

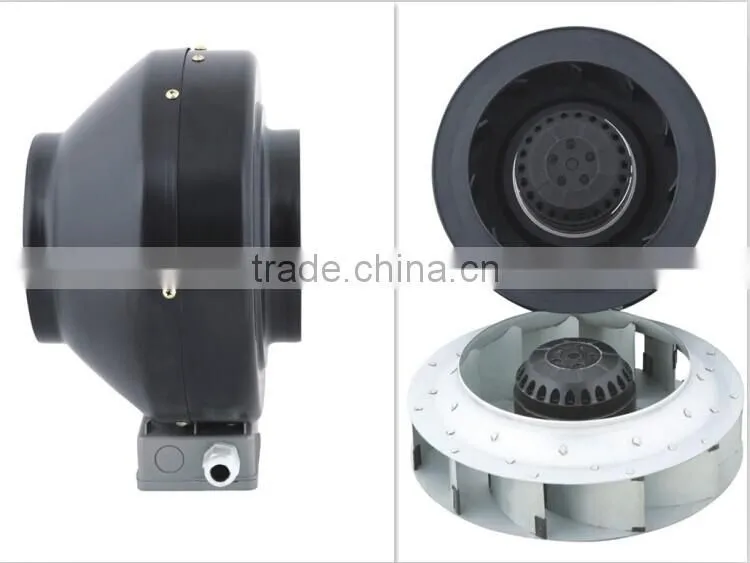

8 inch range hood fan motor
| Model |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Air Flow ( m3/h ) |
Noise ( dB ) |
Pressure (Pa) |
Carton Size (M) |
| GDF100 | 110/120 | 60 | 70 | 0.61 | 2700 | 345 | 49 | 350 | 0.31*0.26*0.235 |
| GDF125 | 110/120 | 60 | 75 | 0.65 | 2700 | 430 | 49 | 380 | 0.31*0.26*0.235 |
| GDF150 | 110/120 | 60 | 130 | 1.0 | 2650 | 700 | 50 | 430 | 0.36*0.32*0.25 |
| GDF160 | 110/120 | 60 | 135 | 1.1 | 2650 | 730 | 50 | 450 | 0.36*0.36*0.25 |
| GDF200 | 110/120 | 60 | 200 | 1.7 | 2550 | 1150 | 53 | 550 | 0.405*0.36*0.29 |
| GDF250 | 110/120 | 60 | 210 | 1.8 | 2550 | 1200 | 53 | 600 | 0.405*0.365*0.265 |
| GDF315 | 110/120 | 60 | 250 | 2.0 | 2550 | 1800 | 53 | 790 | 0.485*0.435*0.285 |
| Model |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Air Flow ( m3/h ) |
Noise ( dB ) |
Pressure (Pa) |
Carton Size (M) |
| GDF100 | 220/240 | 50 | 60 | 0.26 | 2550 | 300 | 48 | 300 | 0.31*0.26*0.235 |
| GDF125 | 220/240 | 50 | 62 | 0.27 | 2550 | 370 | 48 | 330 | 0.31*0.26*0.235 |
| GDF150 | 220/240 | 50 | 100 | 0.47 | 2550 | 620 | 49 | 355 | 0.36*0.32*0.25 |
| GDF160 | 220/240 | 50 | 105 | 0.48 | 2550 | 660 | 49 | 380 | 0.36*0.36*0.25 |
| GDF200 | 220/240 | 50 | 150 | 0.7 | 2500 | 1000 | 52 | 430 | 0.405*0.36*0.29 |
| GDF250 | 220/240 | 50 | 160 | 0.71 | 2500 | 1100 | 52 | 490 | 0.405*0.365*0.265 |
| GDF315 | 220/240 | 50 | 220 | 1.0 | 2450 | 1600 | 52 | 710 | 0.485*0.435*0.285 |
1.The Voltage of the fan is 110-120V,60Hz or 220-240V,50/60Hz.

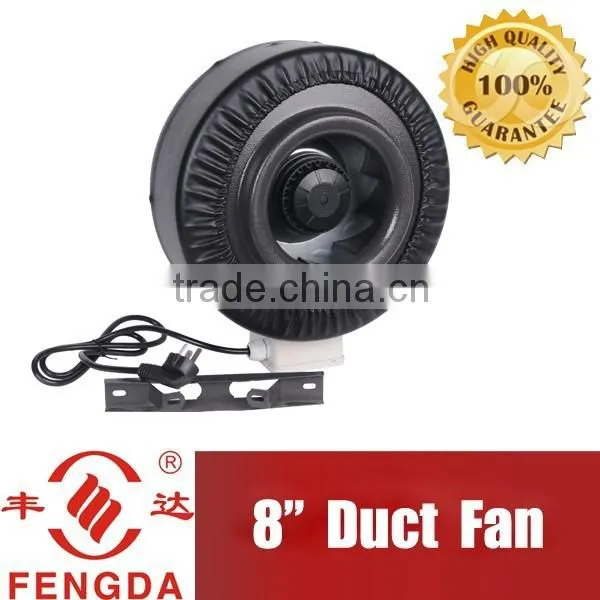

2.Leather Jacket: It is Desinged by our factory to lower noise,and it also could be air proof and rust proof.

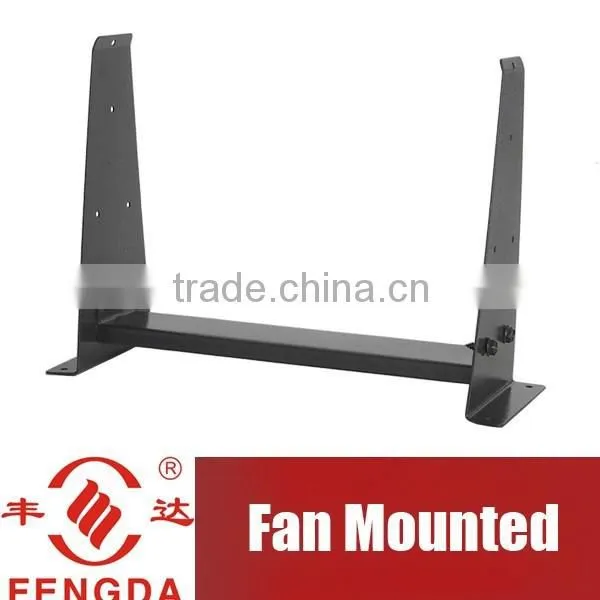

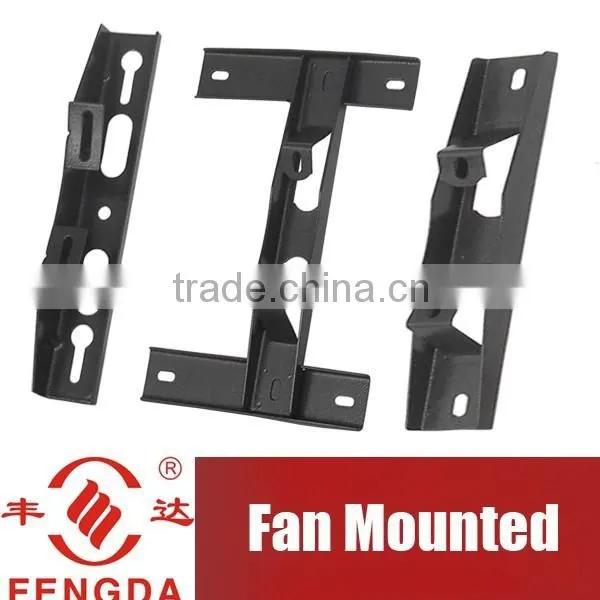

3.Fan Mounted Feet: There are various kinds according to customer's request.
4.Colour:Orange Black Ash,Black,Sliver,White,Red,Blue,Etc
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology ,specialized production facilities and advanced inspection instruments,relying on professionally
R&D team,high efficiency production lines and scientific management."Low noise,high airflow volume,stable running and
long lifetime" to be our strongpoint.By national detection ,the technical values of noise,volume, temperature rising balance,
lifetime are better than other factories.

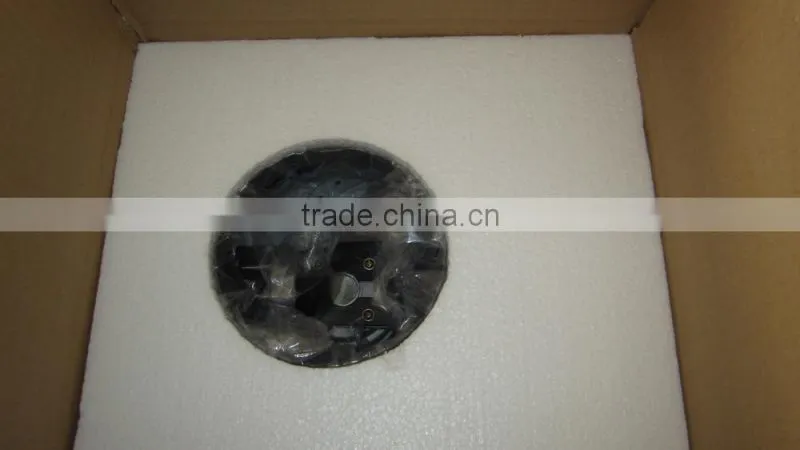

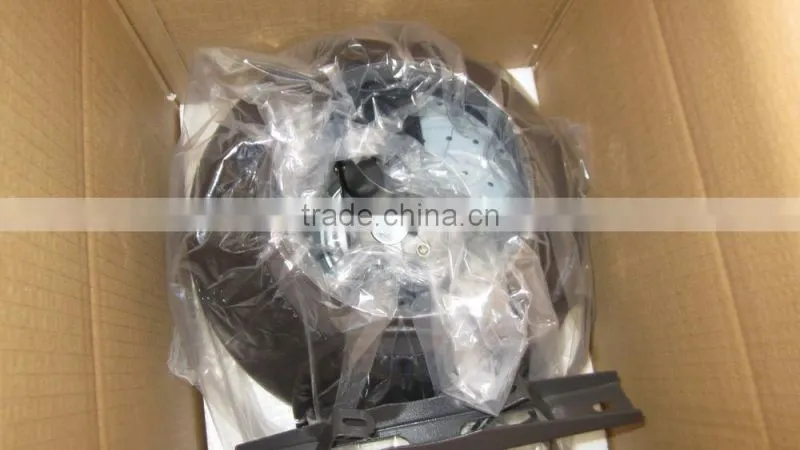

Single packing in one carton
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
