SF Greenhouse Exhaust Fan

Taizhou Defeng Mechanical And Electrical Co., Ltd.
SF Greenhouse Exhaust Fan thumbnail-1
SF Greenhouse Exhaust Fan thumbnail-2
SF Greenhouse Exhaust Fan thumbnail-3
SF Greenhouse Exhaust Fan thumbnail-4
SF Greenhouse Exhaust Fan thumbnail-5
SF Greenhouse Exhaust Fan thumbnail-6
SF Greenhouse Exhaust Fan photo-1
SF Greenhouse Exhaust Fan photo-2
SF Greenhouse Exhaust Fan photo-3
SF Greenhouse Exhaust Fan photo-4
SF Greenhouse Exhaust Fan photo-5
SF Greenhouse Exhaust Fan photo-6
US$ 20 - 80 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Other, axial fan
Blade Material:
Cast Iron
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Other, axial fan
Blade Material Cast Iron
Place of Origin Zhejiang, China
Brand Name FENGDA
Model Number SF8
Voltage 220v/380v
Power 2.2kw
Air Volume 25000m3/h
Speed 960rpm
Certification CCC, CE, CSA, GS, ROHS, UL
After-sales Service Provided Overseas service center available

Specifications

SF greenhouse exhaust fan
1.Size:from SF2 to SF10
2.1 year warranty
3.CCC,CE approve

SF greenhouse exhaust fan

Product Description

   1. An Overvew of   Axial fan

SF series axial flow fans with low noise are widely used for ventilation and air-changing in industries such as mines, textile factories, coal sectors, metallurgical plant, agricultural facilities,

and civil buildings.

  2.  shape and the size of installation

There are three different ways of installation

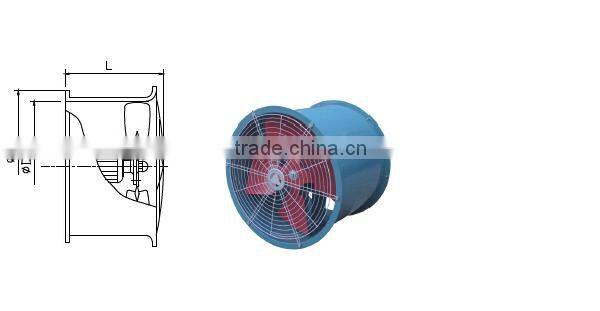

 1. pipeline

SF greenhouse exhaust fan

Model

D

D1

L

2.5

260

320

255

3

310

370

260

4

412

472

325

5

512

572

315

6

612

680

500

7

712

780

520

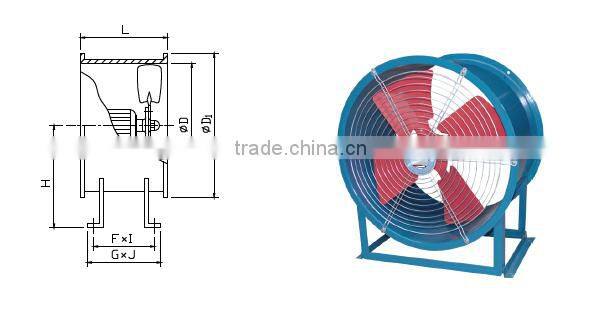

 2. stationary

SF greenhouse exhaust fan

Model

D

D1

H

L

F

G

I

J

2.5

260

320

210

255

187

240

265

300

3

310

370

240

260

235

275

295

335

4

412

472

300

325

230

275

420

465

5

512

572

355

315

220

270

500

545

6

612

680

440

500

340

390

550

610

7

712

780

490

520

340

390

670

730

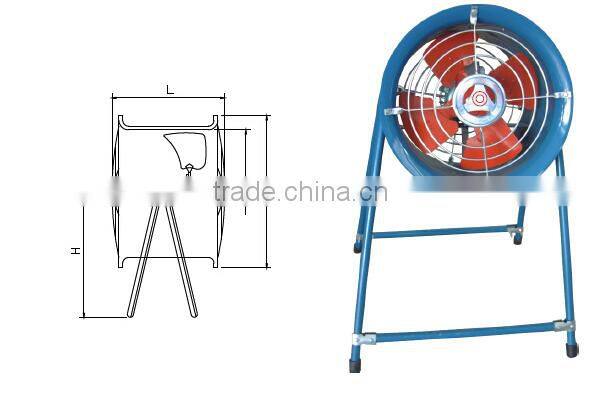

3. Post type

SF greenhouse exhaust fan

Model

D

D1

H

L

2.5

260

290

320

270/310

3

310

340

370

280/320

4

412

442

472

370/450

5

512

542

572

380

6

612

646

680

530

7

712

746

780

530



  3. performance parameters









    Model



Speed

Air Flow

Pressure

Power

Noise

RPM

m3/h

Pa

kW

dB(A)

2

2800

1300

140-96

0.12

66

2.5

2800

2100

215-150

0.25

72

2.5

1450

1000

35-16

0.09

53

3

2800

3000

230-160

0.37

74

3

1450

2000

59-25

0.18

61

3.5

2800

4760

310-210

1.1

78

4

2800

11000

320-220

1.5

83

4

1450

5300

167-80

0.55

74

4

1450

5300

167-80

0.37

74

5

1450

9300

200-90

0.75

78

6

1450

18700

300-90

2.2

85

7

1450

24500

350-150

3

87

7

960

21500

210-120

2.2

82

8

1450

28000

380-100

4

88

8

960

25000

230-90

2.2

85

10

960

50000

260-120

4

88



 SF greenhouse exhaust fanSF greenhouse exhaust fanSF greenhouse exhaust fanSF greenhouse exhaust fan

Company Information



FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.We professionally

manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.

SF greenhouse exhaust fanSF greenhouse exhaust fanSF greenhouse exhaust fanSF greenhouse exhaust fanSF greenhouse exhaust fan



Our Services



1.Warranty:1 year  warranty  for  all  products.

2.Products Quality:100% products  inspection  before  delivery.

3.Just in time  delivery: Normally,lead  time is  30  days.

4.Customized  Service: As we have our  own  molding  department,customized  service  can be  provided.

5.Prompt  customers  services:E-mail  will be  replied  in 24  hours.
