Product Details

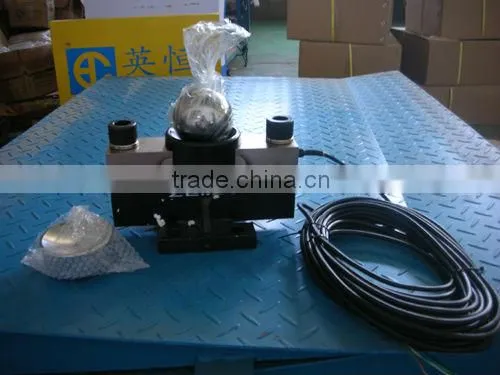

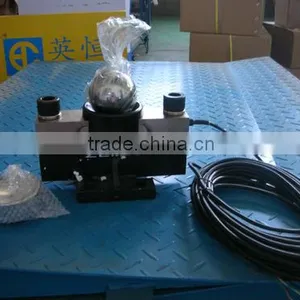

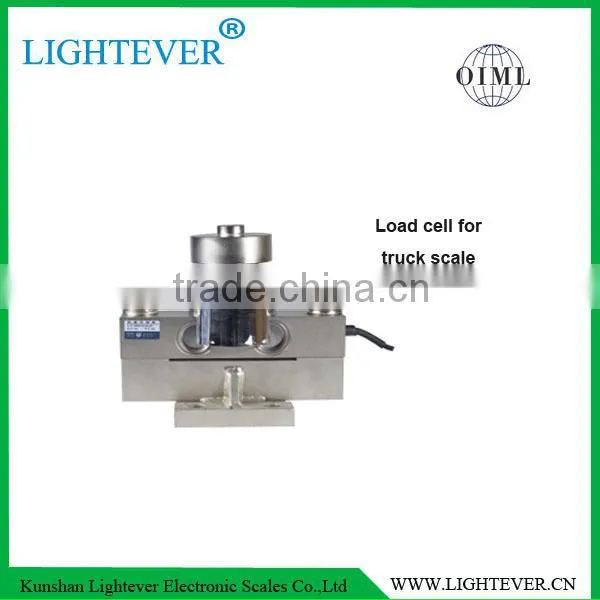

Truck scale /Weighbridge scale load cell

NO: HM9B 10 T ~100 T

FEATURES

Alloy steel,nickel-plated,welding-sealed,
Suitable for electronic vehicle scales,track
scales and other electronic weighing devices

CAPACITY

10t
20t
25t
30t
40tSE
40t
50t

ACCURACY

C3
C3
C3
C3
C3
C3
C3

MODEL

HM9B-C3-10t-12B
HM9B-C3-20t-12B
HM9B-C3-25t-12B
HM9B-C3-30t-12B
HM9B-C3-40tSE-12B
HM9B-C3-40t-12B
HM9B-C3-50t-12B

ELECTRICAL CONNECTION

Red Input(+) Black Input(-) Green Output(+) White Output(-) Transparence (Shield)

SPECIFICATIONS

Accuracy class	OIML R60 C3	Temperature effect on span (%FS/10°C)	0.014
Rated Output (mV/V)	2.0+0.002	Temperature effect on zero( %FS/10°C)	0.017
Combined Error (%FS)	0.017	Temperature,compensated(°C)	-10--+40
Non-linearity (%FS)	0.02	Temperature,operating(°C)	-35---+65
Non-repeatability (%FS)	0.02	Excitation,recommended(V)	5---12(DC)
Creep (%FS/30min)	0.02	Excitation,permition(V)	18(DC)
Input Resistance(Ω)	700+7	Safe Overload(%FS)	150
Output Resistance(Ω)	700+7	Ultimate Overload(%FS)	300
Insulation Resistance(MΩ)	≥5000(50VDC)	Protection Class	IP68
Zero Balance (%FS)	1.5	Cable Length (m)	12
Remark	With load button steel ball, cup.	Cable spec	4-wire shielded PU cableφ5mm
