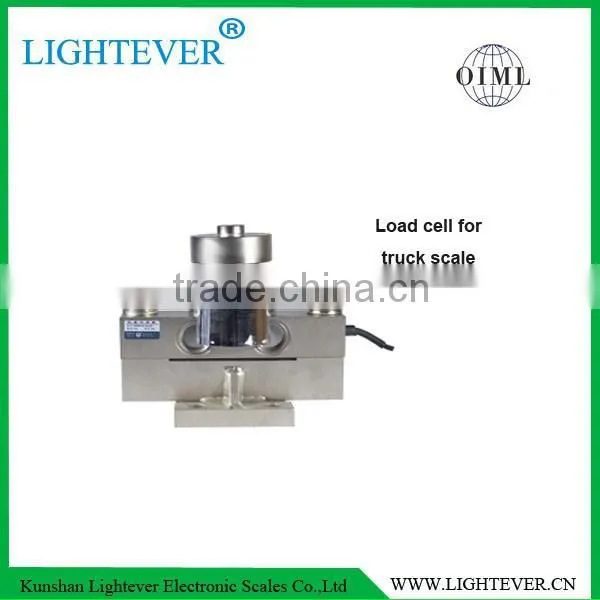

OIML HM9B double shear beamload cell sensor
Model: HM9B
HM9B load cell is available in the capacity 10t~50t
Alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
Dual shear beam, suitable for electronic truck scales, railway scales and other electronic weighing devices.
It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas
Features
- Capacity: 10t ~50t
- High accuracy
- Alloy steel construction
- Easy installation, reliable performance
- With OIML approval
Capacity |
t |
10/20/25/30/40SE/40/50 |
||||
Accuracy |
C1 |
C2 |
C3 |
A5M |
B10M |
|
Approvals |
OIML R60 C3 |
|||||
Maximum number of |
n max |
1000 |
2000 |
3000 |
5000 |
10000 |
Minimum load cell |
v min |
Emax/3000 |
Emax/5000 |
Emax/7500 |
Emax |
Emax |
Combined error |
(%FS) |
≤±0.050 |
≤±0.030 |
≤±0.020 |
≤±0.026 |
≤±0.050 |
Creep |
(%FS/30min) |
≤±0.038 |
≤±0.024 |
≤±0.016 |
≤±0.017 |
≤±0.040 |
Temperature effect |
(%FS/10℃) |
≤±0.028 |
≤±0.017 |
≤±0.011 |
≤±0.013 |
≤±0.040 |
Temperature effect |
(%FS/10℃) |
≤±0.047 |
≤±0.023 |
≤±0.015 |
≤±0.014 |
≤±0.020 |
Output sensitivity |
(mv/v) |
2.0±0.002 |
2.3±0.002 |
2.4±0.002 |
1.9±0.002 |
1.8±0.002 |
Input resistance |
(Ω) |
700 ±7 |
775 ±5 |
750 ±7 |
||
Output resistance |
(Ω) |
700 ±7 |
||||
Insulation resistance |
(MΩ) |
≥ 5000(50VDC) |
||||
Zero balance |
(%FS) |
1.5 |
||||
Temperature, compensated |
(℃) |
-10~+40 |
||||
Temperature,allowed |
(℃) |
-35~+65 |
||||
Excitation, Recommended |
(V) |
5~12(DC) |
||||
Excitation,Max |
(V) |
18(DC) |
||||
Safe overload |
(%FS) |
150 |
||||
Ultimate overload |
(%FS) |
300 |
||||

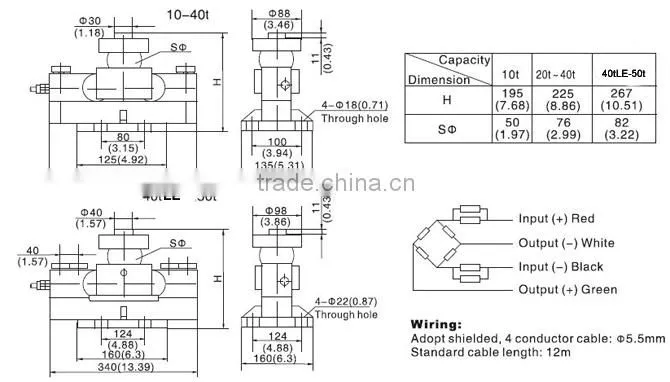

Outline Dimension mm(inch)
