quality assure pressurized heat pipe solar water heater

FOB Price

US$ 88 - 255 / Set

1 Set(Min. Order)

Port Shanghi or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Pressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Other, Colored Steel	Certification	CE, Other, CE, ISO9001
Capacity	200, 200	Place of Origin	Zhejiang, China
Brand Name	SHINE SEA	Model Number	HX-58-20

Product Description

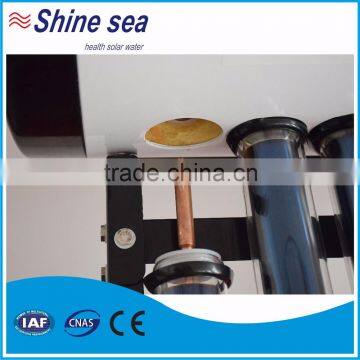

quality assure pressurized heat pipe solar water heater

Specification
Solar Water Heater Capacity						100L--500L
Solar Water Heater Tank Diameter						420/460/470/480MM
Insulation						50/55/60mm
Air Vent/overflow Hole Size						1/2 inch
Electric Backup Heater Hole Size						47MM
Water Inlet/Output						1/2 or 3/4 inch
Frame Angle						27/38/45/51
Advantage
1.Super Anti-erode outer tank: Outer tank is made by SUS201-BA/304-2B/304 Hairline Stainless Steel or PVDF Color Coated Galvanized Steel. Best anti-erode material,Especial for the seaside area,such as East South Asia,Mexico etc.
2.Feeding water automatic:with special design,feeding water automatic, and ensure the outlet water as stable temperature.
Material
Outer Tank Material and Thickness		SUS201-BA/304-2B/304 Hairline Stainless Steel or PVDF Color Coated Galvanized Steel<0.3--0.5MM>
Inner Tank Material and Thickness		Food grade SUS304-2B/SUS316L stainless steel <0.30mm-0.50mm>
Insulation		40KG/CBM High density polyurethane foam
Frame/bracket		SUS201-BA/Alloy Aluminum/Galvanized steel with high quality spray painting <1.2 mm-2.0mm>
Solar Vacuum Tube		*Specification:47x1500mm,471800mm,58x1800mm, 582100mm,702100mm**
		Thickness 1.6mm borosilicate 3.3 glass
		AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5)
		SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5)
		Vacuum tightness P< 0.005Pa
		Idle sunning property parameter Y=260-300 m².°c/KW
Tube Holder		White/Black Color, adjustable or normal one, basing on your choice
Optional accessories		Auxiliary electric heater 1.5/2.0/2.5KW
		Assistant tank 3/5/8/10/12/40/50 liters
		Intelligent controller
Model	Vacuum Tube				Water Tank(mm)			Total Capacity (LPD)	Loading Quantity
	Diameter		Length	QTY	Inner		Outer		20’GP	40’GP	40’HC
HX-NP-47-12	47		1800	12	360		460	100	65	136	171
HX-NP-47-18	47		1800	18	360		460	150	43	90	114
HX-NP-47-24	47		1800	24	360		460	200	32	68	85
HX-NP-47-28	47		1800	28	360		460	250	28	58	73
HX-NP-58-10	58		1800	10	360		460	100	60	130	160
HX-NP-58-15	58		1800	15	360		460	150	42	85	107
HX-NP-58-20	58		1800	20	360		460	200	36	72	91
HX-NP-58-25	58		1800	25	360		460	250	30	61	77
HX-NP-58-35	58		1800	35	360		460	350	22	46	55
HX-NP-58-40	58		1800	40	360		460	400	20	41	48
HX-NP-58-50	58		1800	50	360		460	500	16	33	38

Company Information

About Us

We Huanxi is a leading manufacturer of solar water heater with over 10 years’ export experience.

Main market covers Mexico,Jordan,India,Vietnam,Brazil,Uruguay,Chile,Peru,etc.......

Covering an area of 15000 Square meters,owning a skilled technical team and advanced production

line,which assured us a huge production capacity with over 100000 SETS per year.

Products include Non-Pressure,pressurized solar water heater,flat plate solar water heater,

solar collector project with all variety of configuration.

Do welcome to join us for a same concept----Making a friendly environment,solar water heater,go GREEN!!!!

Our Services

1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order

3.) Can do OEM Basing on your detailed Request

FAQ

1- What is your Delivery Time?

LCL order/Sample order: 3--7days.

Full container order:7-10days.

2- What is your Guarantee Time?

3 years.

3- Can you accept OEM ?

YES, will do OEM Basing on all your detailed requirements.

4- What is your Payment Term?

We accept T/T,Escrow & West Union

5-What is your MOQ?

1 set

6-What is your Packing?

LCL order/Sample order in wooden box Package

Full container order in Standard quality export carton with PE Foam Protection

7-What is your FOB Port?

We accept FOB Shanghai & Ningbo

8.-What is your Monthly Production Capacity?

1000 sets

9-What is your Shipping Term?

By Sea/Air/Rail
