High Tech Pressurized Solar Water Heater With Copper Pipe
- Shanghai/Ningbo
- T/T Money Gram Credit Card
You May Like
-
High Quality Pressurized Split Solar Water Heater
-
Low Price Pressurized Solar Water Heater Manufacturing Equipment
-
Best Selling Air Source Heat Pump Water Heater
-
Best Selling Pressure Solar Water Heater With Vacuum Tube
-
High Tech 200l Pressurized Solar Water Heater for Spain
-
Solar Panel Hot Water Heating System Online Shopping
Product Details
| Type | Evacuated Tube | Pressure | Pressurized | |
| Circulation Type | Indirect / Closed Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Stainless Steel | Certification | CE, Other, CE, ISO9001:2009 | |
| Capacity | 200 | Place of Origin | Zhejiang, China | |
| Brand Name | shinesea | Model Number | HX-58-20 |
Product Description

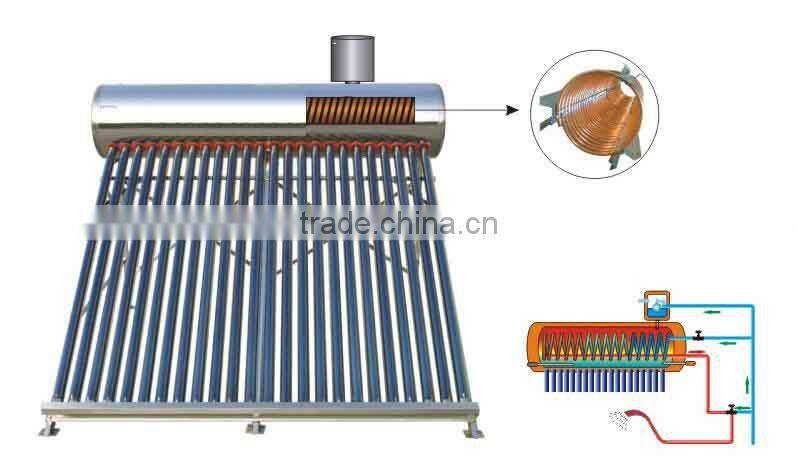

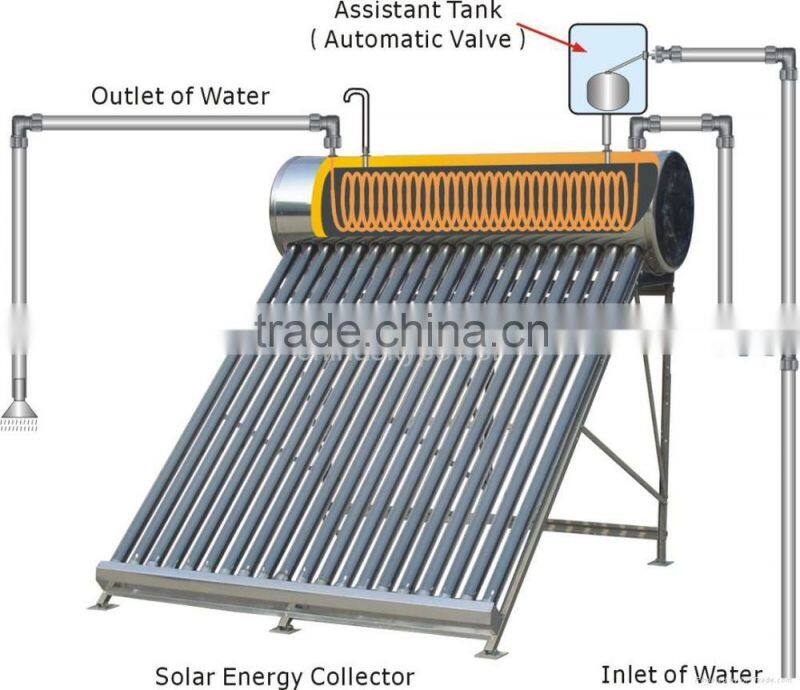

High tech pressurized solar water heater with copper pipe
High tech pressurized solar water heater with copper pipe
Description | |
System capacity | 100 liters-500 liters |
Outer tank | SUS201-BA/SUS304-2B/SUS304 Hairline Color coated steel <0.30mm-0.40mm> |
Inner tank | Food grade SUS304-2B stainless steel <0.30mm-0.50mm> |
Copper Coil | 12MM Diameter,0.8MM thickness |
Insulation | 40KG/CBM High density polyurthane foam<thickness 50/55/60mm> |
Frame/bracket | Galvanized steel with high quality spray painting <1.2 mm- 1.5mm> |
Solar Vacuum Tube | Specification: 47x1500mm, 47*1800mm,58x1800mm,58*2100mm,70*2100mm |
Thickness 1.6mm borosilicate 3.3 glass | |
AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5) | |
SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5) | |
Vacuum tightness P< 0.005Pa | |
Idle sunning property parameter Y=260-300 m².°c/KW | |
Tube Holder | White/Black Color, adjustable or normal one, basing on your choice |
Welding | Auto pulse welding or Auto argon arc welding |
Holes design of tank | Air vent, overflow, inlet, output, sensor and electric heater (or OEM basing on customer request) |
Inlet/Output Pipe | 3/4 inch,10/20/30CM Length |
Air Vent Pipe | 1/2 inch, 10/20/30CM Length |
Magnesium Rod Hole | 1/2 inch,3/4 inch, OEM Basing on customer request |
Electrical Backup Hole | 47MM Diameter |
Optional accessories | Auxiliary electric heater 1.5/2.0/2.5KW |
Assistant tank 3/5/8/10/12/40/50 liters | |
Intelligent controller | |
Magnesium rod | |
Features:
1) Reliable and efficient twin-glass solar tubes;
2) Copper heat pipes for rapid heat transfer;
3) Easy plug-in installation;
4) Free maintenance;
5) Suitable for mains pressure water (up to 1.0 bar);
6) Corrosion resistant silver brazed copper header;
7) Aluminum frame;
8) Stable solar conversion during the day;
9) High purity copper for the heat exchanger coil
We Huanxi is a leading manufacturer of solar water heater with over 10 years’ export experience.
Main market covers Mexico,Jordan,India,Vietnam,Brazil,Uruguay,Chile,Peru,etc.......
Covering an area of 15000 Square meters,owning a skilled technical team and advanced production
line,which assured us a huge production capacity with over 100000 SETS per year.
Products include Non-Pressure,pressurized solar water heater,flat plate solar water heater,
solar collector project with all variety of configuration.
Do welcome to join us for a same concept----Making a friendly environment,solar water heater,go GREEN!!!!
1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order
3.) Can do OEM Basing on your detailed Request
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:7-10days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,Escrow & West Union
5-What is your MOQ?
1 set
6-What is your Packing?
LCL order/Sample order in wooden box Package
Full container order in Standard quality export carton with PE Foam Protection
7-What is your FOB Port?
We accept FOB Shanghai & Ningbo
8.-What is your Monthly Production Capacity?
1000 sets
9-What is your Shipping Term?
By Sea/Air/Rail
