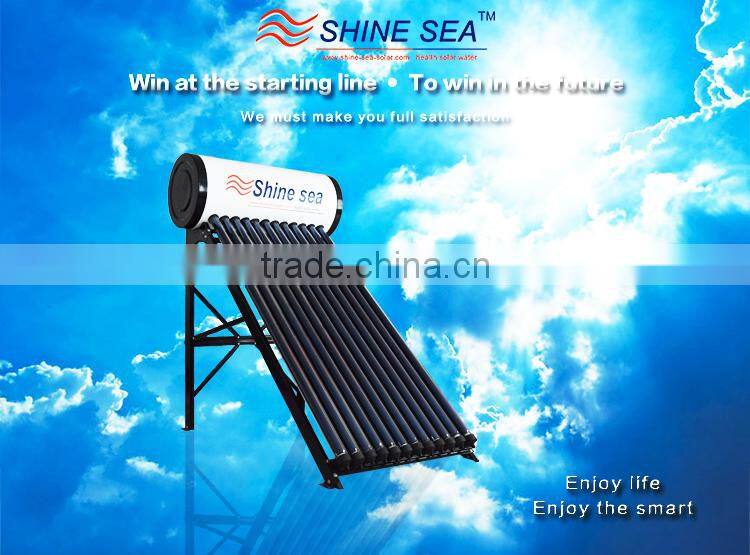

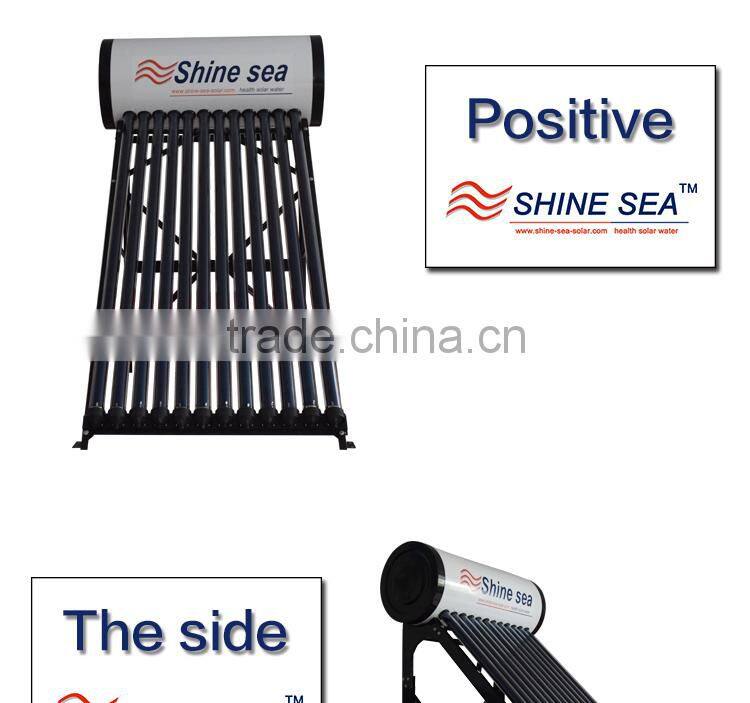

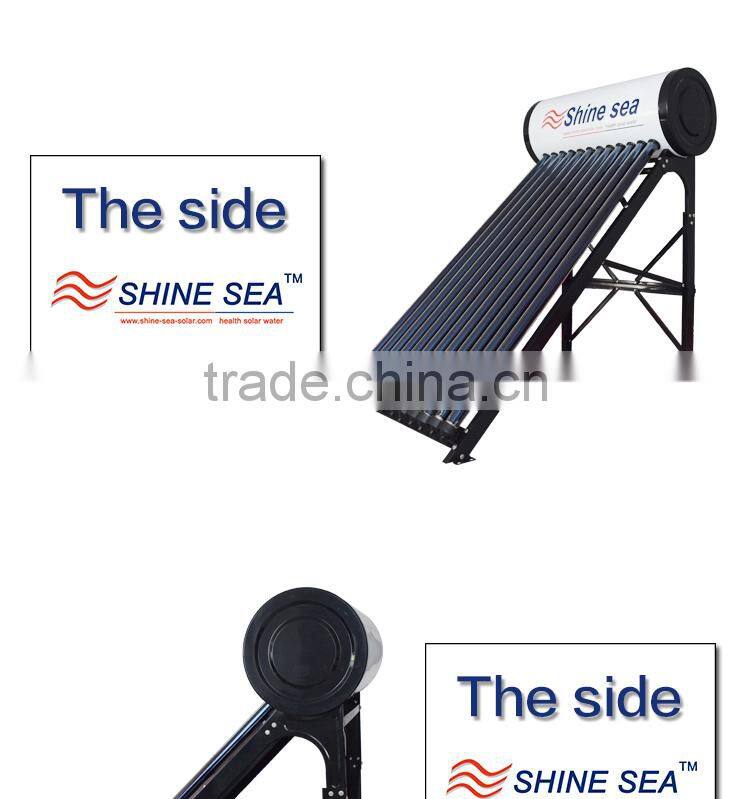

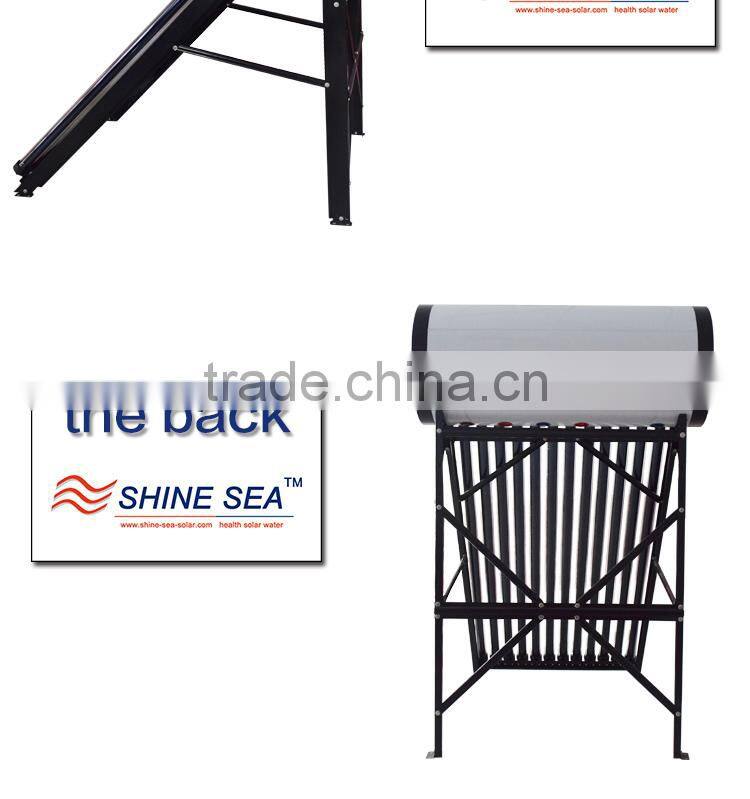

Integrated high pressure solar water heater with heat pipe
Specification | |||||||||||
Solar Water Heater Capacity | 100L--500L | ||||||||||
Solar Water Heater Tank Diameter | 420/460/470/480MM | ||||||||||
Insulation | 50/55/60mm | ||||||||||
Air Vent/overflow Hole Size | 1/2 inch | ||||||||||
Electric Backup Heater Hole Size | 47MM | ||||||||||
Water Inlet/Output | 1/2 or 3/4 inch | ||||||||||
Frame Angle | 27/38/45/51 | ||||||||||
Advantage | |||||||||||
1.Super Anti-erode outer tank: Outer tank is made by SUS201-BA/304-2B/304 Hairline Stainless Steel or PVDF Color Coated Galvanized Steel. Best anti-erode material,Especial for the seaside area,such as East South Asia,Mexico etc. | |||||||||||
2.Feeding water automatic:with special design,feeding water automatic, and ensure the outlet water as stable temperature. | |||||||||||
Material | |||||||||||
Outer Tank Material and Thickness | SUS201-BA/304-2B/304 Hairline Stainless Steel or PVDF Color Coated Galvanized Steel<0.3--0.5MM> | ||||||||||

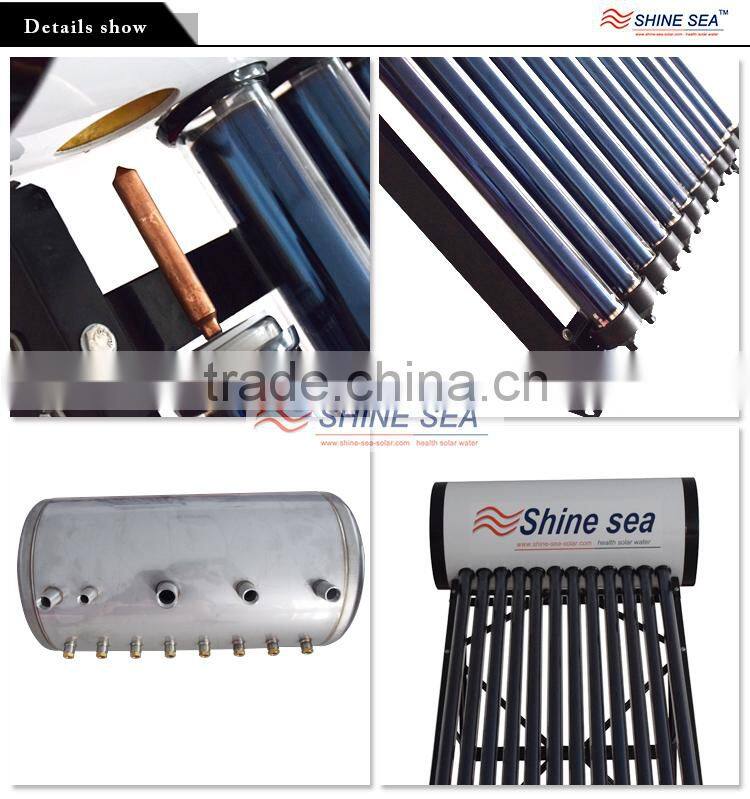

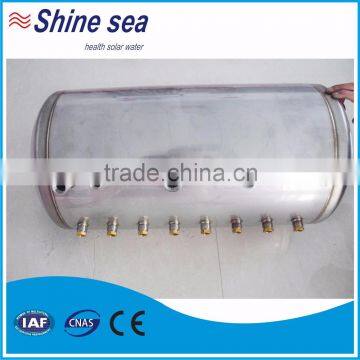

Inner Tank Material and Thickness | Food grade SUS304-2B/SUS316L stainless steel <0.30mm-0.50mm> | ||||||||||
Insulation | 40KG/CBM High density polyurethane foam | ||||||||||

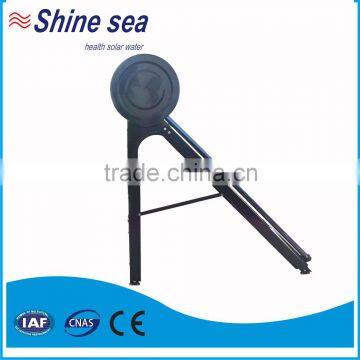

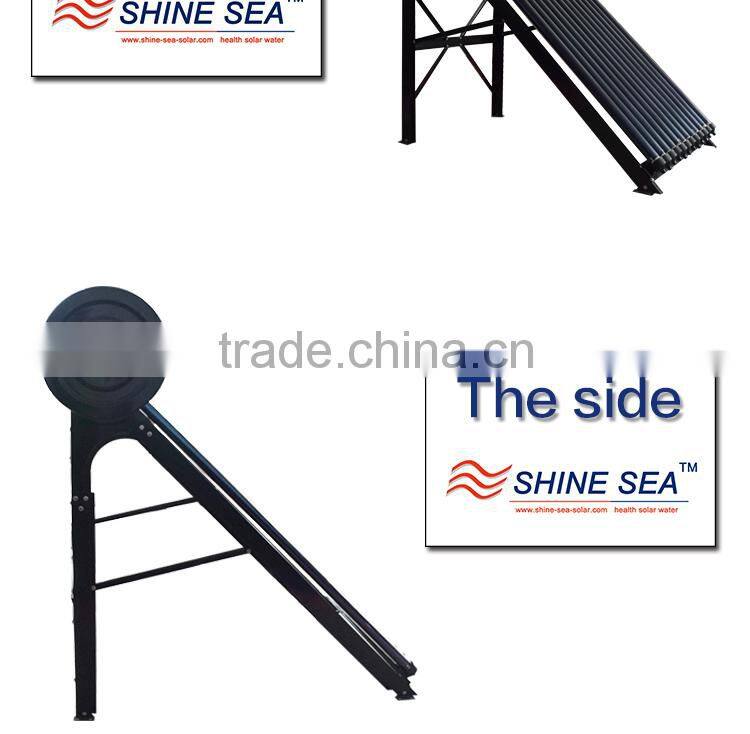

Frame/bracket | SUS201-BA/Alloy Aluminum/Galvanized steel with high quality spray painting <1.2 mm-2.0mm> | ||||||||||
Solar Vacuum Tube | Specification:47x1500mm,47*1800mm,58x1800mm, 58*2100mm,70*2100mm | ||||||||||
Thickness 1.6mm borosilicate 3.3 glass | |||||||||||
AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5) | |||||||||||
SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5) | |||||||||||
Vacuum tightness P< 0.005Pa | |||||||||||
Idle sunning property parameter Y=260-300 m².°c/KW | |||||||||||
Tube Holder | White/Black Color, adjustable or normal one, basing on your choice | ||||||||||
Optional accessories | Auxiliary electric heater 1.5/2.0/2.5KW | ||||||||||
Assistant tank 3/5/8/10/12/40/50 liters | |||||||||||
Intelligent controller | |||||||||||
Model | Vacuum Tube | Water Tank(mm) | Total Capacity (LPD) | Loading Quantity | |||||||
Diameter | Length | QTY | Inner | Outer | 20’GP | 40’GP | 40’HC | ||||
HX-NP-47-12 | 47 | 1800 | 12 | 360 | 460 | 100 | 65 | 136 | 171 | ||
HX-NP-47-18 | 47 | 1800 | 18 | 360 | 460 | 150 | 43 | 90 | 114 | ||
HX-NP-47-24 | 47 | 1800 | 24 | 360 | 460 | 200 | 32 | 68 | 85 | ||
HX-NP-47-28 | 47 | 1800 | 28 | 360 | 460 | 250 | 28 | 58 | 73 | ||
HX-NP-58-10 | 58 | 1800 | 10 | 360 | 460 | 100 | 60 | 130 | 160 | ||
HX-NP-58-15 | 58 | 1800 | 15 | 360 | 460 | 150 | 42 | 85 | 107 | ||
HX-NP-58-20 | 58 | 1800 | 20 | 360 | 460 | 200 | 36 | 72 | 91 | ||
HX-NP-58-25 | 58 | 1800 | 25 | 360 | 460 | 250 | 30 | 61 | 77 | ||
HX-NP-58-35 | 58 | 1800 | 35 | 360 | 460 | 350 | 22 | 46 | 55 | ||
HX-NP-58-40 | 58 | 1800 | 40 | 360 | 460 | 400 | 20 | 41 | 48 | ||
HX-NP-58-50 | 58 | 1800 | 50 | 360 | 460 | 500 | 16 | 33 | 38 | ||
About Us
We Huanxi is a leading manufacturer of solar water heater with over 10 years’ export experience.
Main market covers Mexico,Jordan,India,Vietnam,Brazil,Uruguay,Chile,Peru,etc.......
Covering an area of 15000 Square meters,owning a skilled technical team and advanced production
line,which assured us a huge production capacity with over 100000 SETS per year.
Products include Non-Pressure,pressurized solar water heater,flat plate solar water heater,
solar collector project with all variety of configuration.
Do welcome to join us for a same concept----Making a friendly environment,solar water heater,go GREEN!!!!
1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order
3.) Can do OEM Basing on your detailed Request
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:7-10days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,Escrow & West Union
5-What is your MOQ?
1 set
6-What is your Packing?
LCL order/Sample order in wooden box Package
Full container order in Standard quality export carton with PE Foam Protection
7-What is your FOB Port?
We accept FOB Shanghai & Ningbo
8.-What is your Monthly Production Capacity?
1000 sets
9-What is your Shipping Term?
By Sea/Air/Rail
