High-performance Pre-heated Copper Wire/coil Swimming Pool Solar Water Heater

High-performance Pre-heated Copper Wire/coil Swimming Pool Solar Water Heater photo-1
High-performance Pre-heated Copper Wire/coil Swimming Pool Solar Water Heater photo-2
High-performance Pre-heated Copper Wire/coil Swimming Pool Solar Water Heater photo-3
High-performance Pre-heated Copper Wire/coil Swimming Pool Solar Water Heater photo-4
US$ 150 - 560 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Type Evacuated Tube
Pressure Pressurized
Circulation Type Indirect / Closed Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Direct-Plug
Installation Freestanding
Housing Material Stainless Steel
Certification CE, Other, CE, ISO9001:2009
Capacity 200
Place of Origin Zhejiang, China
Brand Name shinesea
Model Number HX-58-20

High-performance pre-heated copper wire/coil swimming pool solar water heater

High-performance pre-heated copper wire/coil swimming pool solar water heater

Product Description

High tech pressurized solar water heater with copper pipe

Description

System capacity

100 liters-500 liters

Outer tank

SUS201-BA/SUS304-2B/SUS304 Hairline Color coated steel  <0.30mm-0.40mm>

Inner tank

Food grade SUS304-2B stainless steel <0.30mm-0.50mm>

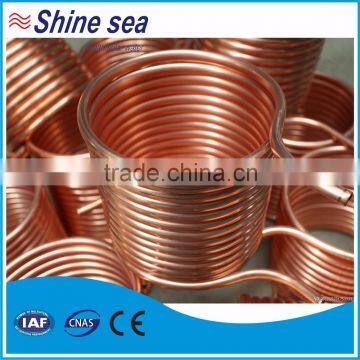

Copper Coil

12MM Diameter,0.8MM thickness

Insulation

40KG/CBM High density polyurthane foam<thickness 50/55/60mm>

Frame/bracket

Galvanized steel with high quality spray painting <1.2 mm- 1.5mm>

Solar Vacuum Tube

Specification: 47x1500mm, 47*1800mm,58x1800mm,58*2100mm,70*2100mm

Thickness 1.6mm borosilicate 3.3 glass

AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5)

SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5)

Vacuum tightness P< 0.005Pa

Idle sunning property parameter Y=260-300 m².°c/KW

Tube Holder

White/Black Color, adjustable or normal one, basing on your choice

Welding

Auto pulse welding or Auto argon arc welding

Holes design of tank

Air vent, overflow, inlet, output, sensor and electric heater (or OEM basing on customer request)

Inlet/Output Pipe

3/4 inch,10/20/30CM Length

Air Vent Pipe

1/2 inch, 10/20/30CM Length

Magnesium Rod Hole

1/2 inch,3/4 inch, OEM Basing on customer request

Electrical Backup Hole

47MM Diameter

Optional accessories

Auxiliary electric heater 1.5/2.0/2.5KW

Assistant tank 3/5/8/10/12/40/50 liters

Intelligent controller

Magnesium rod

Features:
1) Reliable and efficient twin-glass solar tubes;

2) Copper heat pipes for rapid heat transfer;

3) Easy plug-in installation;

4) Free maintenance;

5) Suitable for mains pressure water (up to 1.0 bar);

6) Corrosion resistant silver brazed copper header;

7) Aluminum frame;

8) Stable solar conversion during the day;

9) High purity copper for the heat exchanger coil

High-performance pre-heated copper wire/coil swimming pool solar water heater

 High-performance pre-heated copper wire/coil swimming pool solar water heaterHigh-performance pre-heated copper wire/coil swimming pool solar water heaterHigh-performance pre-heated copper wire/coil swimming pool solar water heater

About Us

We Huanxi is a leading manufacturer of solar water heater with over 10 years’ export experience.



Main market covers Mexico,Jordan,India,Vietnam,Brazil,Uruguay,Chile,Peru,etc.......



Covering an area of 15000 Square meters,owning a skilled technical team and advanced production

line,which assured us a huge production capacity with over 100000 SETS per year.



Products include Non-Pressure,pressurized solar water heater,flat plate solar water heater,

solar collector project with all variety of configuration.



Do welcome to join us for a same concept----Making a friendly environment,solar water heater,go GREEN!!!!High-performance pre-heated copper wire/coil swimming pool solar water heater

Our Services

1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order

3.) Can do OEM Basing on your detailed Request



FAQ

1- What is your Delivery Time?

   LCL order/Sample order:  3--7days.

   Full container order:7-10days.

2- What is your Guarantee Time?

  3 years.

3- Can you accept OEM ?

  YES, will do OEM Basing on all your detailed requirements.

4- What is your Payment Term?

  We accept T/T,Escrow & West Union

5-What is your MOQ?

  1 set

6-What is your Packing?

  LCL order/Sample order in wooden box Package

  Full container order in Standard quality export carton with PE Foam Protection

7-What is your FOB Port?

  We accept FOB Shanghai & Ningbo

8.-What is your Monthly Production Capacity?

  1000 sets

9-What is your Shipping Term?

  By Sea/Air/Rail

High-performance pre-heated copper wire/coil swimming pool solar water heaterHigh-performance pre-heated copper wire/coil swimming pool solar water heater
