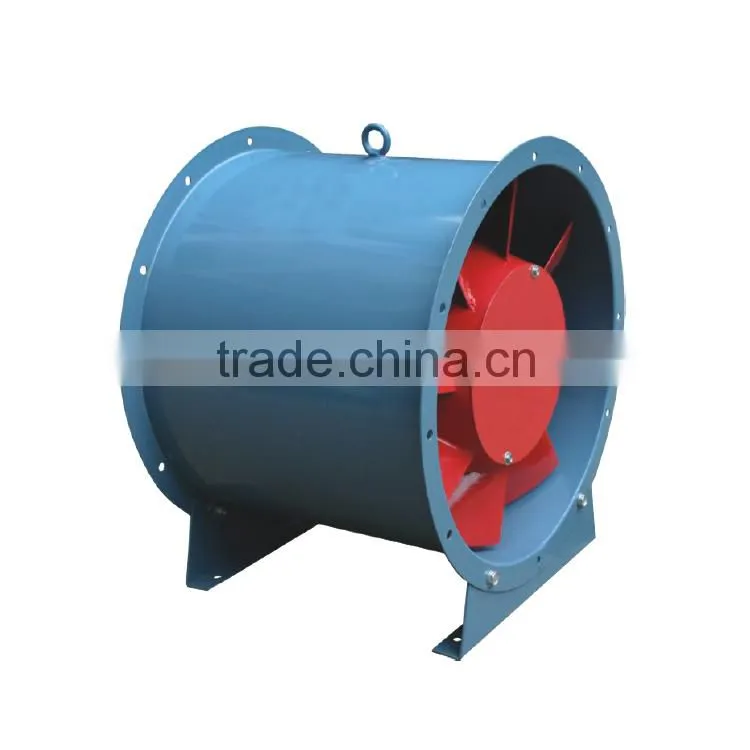

2014 Hot Sale for SWF Mine Ventilation Fan With MA
- 5000 Piece / Pieces per Month
- ningbo
- T/T Credit Card PayPal
You May Like
Product Details
Electric Current Type | AC | Mounting | Wall Fan | |
Blade Material | Cast Iron | Place of Origin | Zhejiang, China | |
Brand Name | FENGDA | Model Number | 4 | |
Voltage | 220/380V | Power | 0.37kw | |
Air Volume | 3052-4302m3/h | Speed | 1450RPM | |
Certification | CCC, CE, CSA, GS, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
2014 Hot Sale for SWF Mine Ventilation Fan With MA1.Size: 2A to5A
2. 1year warranty
3.High Quality
4.CCC,CE appro
2014 Hot Sale for SWF Mine Ventilation Fan With MA
SWF seriesmixed-flowew fans are novel and intermediate fans between axial-flow fans and centrifugal fans,they absorb the advantages from both above fans.The total pressure is higher than the same sized axial-flow fan;the air-flow rate is larger than the asme sized centrifugal fan,they have the advantages such as wide and effective operational zone,high efficiency etc.Thet are widely used for air ventilation systems in the offices,buildings,hotels,large-size high-grade civil purpose architectures etc, they can also be used for ventilation in the mining and industrial enterprises such as freezing houses,textile plants snd so on in order to replace for the low-pressure centrifugal fans or high-pressure axial-flow fans.
1.Parameters
Model (NO) | voltage (V) | frequency (Hz) | power (W) |
Airflow (m3/h) | noise dB(A) |
pitot pressure (Pa) |
4 | 220 | 50 | 0.37 | 3053~4302 | 71 | 212~143 |
4.5 | 220 | 50 | 0.55 | 3392~4552 | 73 | 265~207 |
5 | 220 | 50 | 1.1 | 5252~7433 | 77 | 326~220 |
6 | 220 | 50 | 1.5 | 8121~10000 | 79 | 325~200 |
7 | 380 | 50 | 3 | 11780~18880 | 82 | 470~329 |
8 | 380 | 50 | 3 | 19636~25467 | 82 | 382~193 |

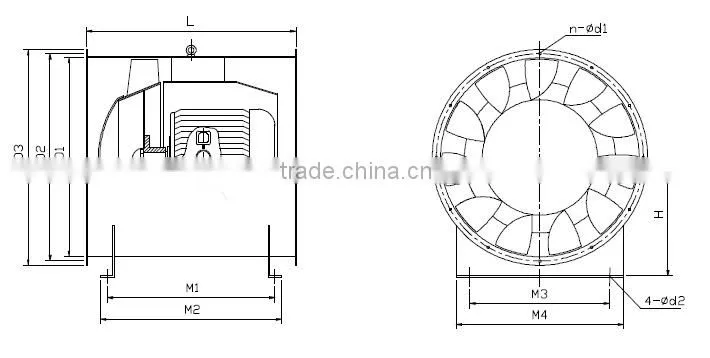

Model | D1 | D2 | D3 | n-Φd1 | M1 | M2 | M3 | M4 | L | Φd2 | H | |
GXF-A | GXF-B | |||||||||||
4 | 410 | 450 | 480 | 8-Φ12 | 385 | 425 | 200 | 240 | 550 | 550 | Φ11 | 265 |
4.5 | 460 | 500 | 530 | 8-Φ12 | 440 | 490 | 240 | 300 | 580 | 580 | Φ11 | 290 |
5 | 510 | 560 | 590 | 12-Φ12 | 450 | 500 | 300 | 400 | 600 | 600 | Φ13 | 316 |
5.5 | 560 | 610 | 640 | 12-Φ12 | 480 | 530 | 300 | 400 | 700 | 700 | Φ13 | 355 |
6 | 610 | 660 | 690 | 12-Φ12 | 550 | 600 | 400 | 500 | 700 | 700 | Φ16 | 380 |
6.5 | 660 | 710 | 740 | 12-Φ12 | 550 | 600 | 400 | 500 | 750 | 750 | Φ16 | 402 |
7 | 710 | 760 | 790 | 16-Φ12 | 600 | 650 | 500 | 600 | 800 | 850 | Φ16 | 428 |
7.5 | 810 | 860 | 890 | 16-Φ12 | 650 | 700 | 500 | 600 | 850 | 900 | Φ16 | 487 |
1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs. We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally
R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
1. Q: What information do you need to provide in order to get a question?
A: Generally,information about size,Air Flow,Voltage of required fans is needed in order to
select a right fan for you and provide you a quation.
2. Q: Can I have samples for testing before ordering products?
A: Yes,we sincerely suggest that customers should be have samples of required fans for testing because
the truly performace of fans can be fully demonstrated after testing is conducted.
3. Q:Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity.If annual usage quantities increase,please provide the information to our sales.We will provide you a furth discount.
4. Q:What is the warranty of products?
A: All of our products have 1 year warranty.Every product has its own production code.This code is
able to track the productiuon time.
