Specifications
400mm axial fan motor with external rotor1.Size: 200mm to 900mm
2.low noise
3.one year warranty
4.CE,CCC approved

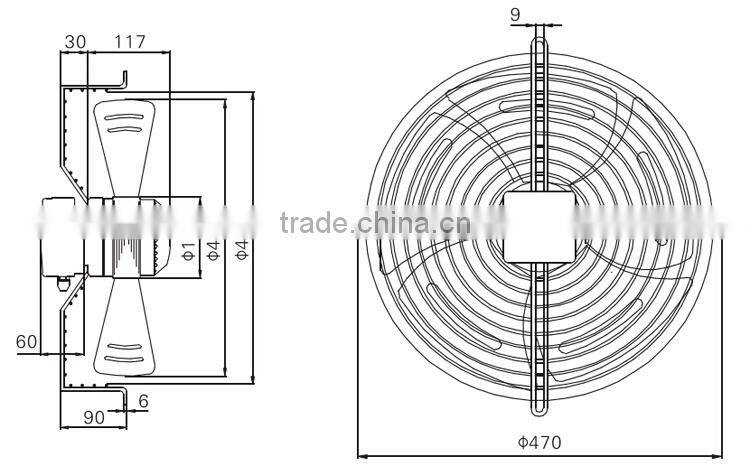

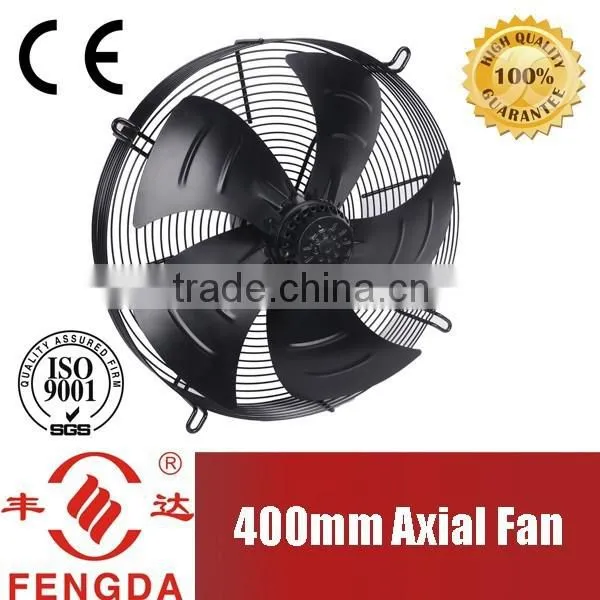

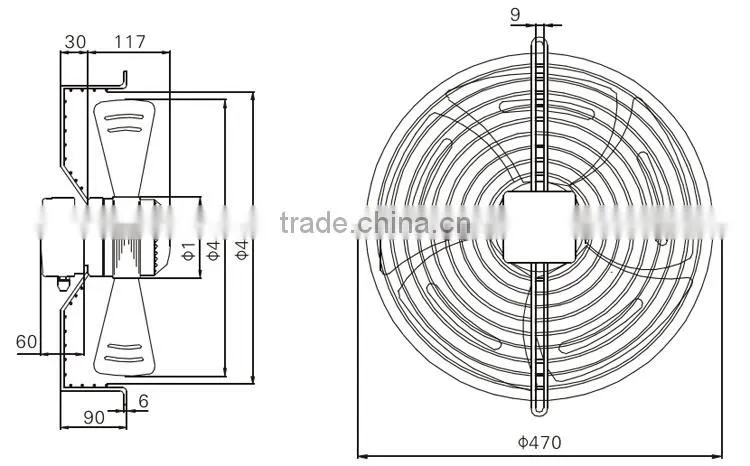

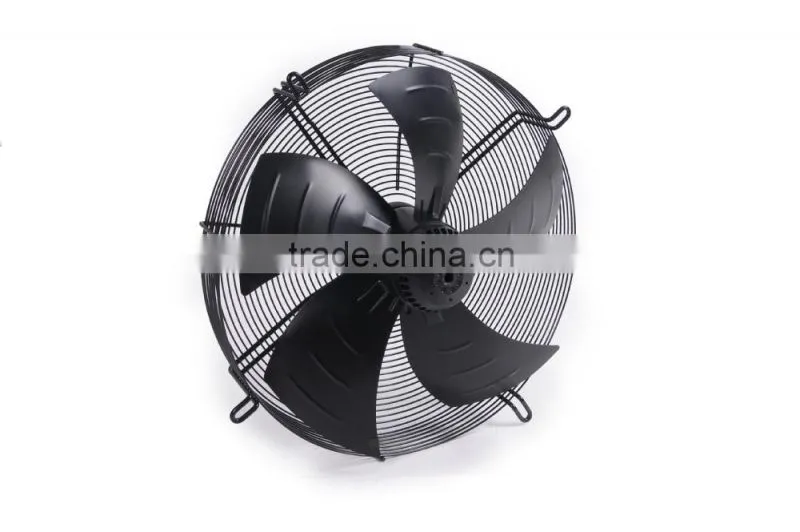

400mm axial fan motor with external rotor
YWF series external rotor motors have two kinds ,single phase asynchronous capacitor fan motor and three phases
asynchronous fan motor.The Voltage of single phase motor is 120V,60Hz,220-240V,50/60Hz.The Voltage of three phases motor is 380V,50Hz,or according to customer's requirements.
Fan diameter is from 200mm-900mm.
The using life is over 30000 hours.
The using ambient temperature is from -30℃~60 ℃
Model |
Voltage V |
Frequency Hz |
Current A |
Input Power W |
Speed RPM |
Max Air Flow m3/h |
Capacitor uF |
Noise dB(A) |
Curve
|
YWF4D400 |
380 |
50 |
0.52 |
190 |
1380 |
3500 |
/ |
68 |
1 |
YWF4E400 |
220 |
50 |
0.85 |
190 |
1380 |
3500 |
6 |
68 |
1 |
120 |
60 |
2.3 |
270 |
1600 |
4000 |
22 |
69 |
2 |
|
YWF6D400 |
380 |
50 |
0.38 |
110 |
920 |
2510 |
/ |
58 |
3 |
YWF6E400 |
220 |
50 |
0.57 |
110 |
920 |
2510 |
4 |
58 |
3 |
120 |
60 |
1.15 |
135 |
980 |
2750 |
12 |
59 |
4 |
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.
We professionally manufacture various fans and motors,which widely used in ventilation,air condition,cooling
and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being
the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates and ISO9001
Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc.
Single packing in one carton
1.One year warranty
2.We will provide our best services for you
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
1. Water cooler
2. Air cooler
3. Heater
4. Heat pump
5.Evaporator
6.Dehumidifier
